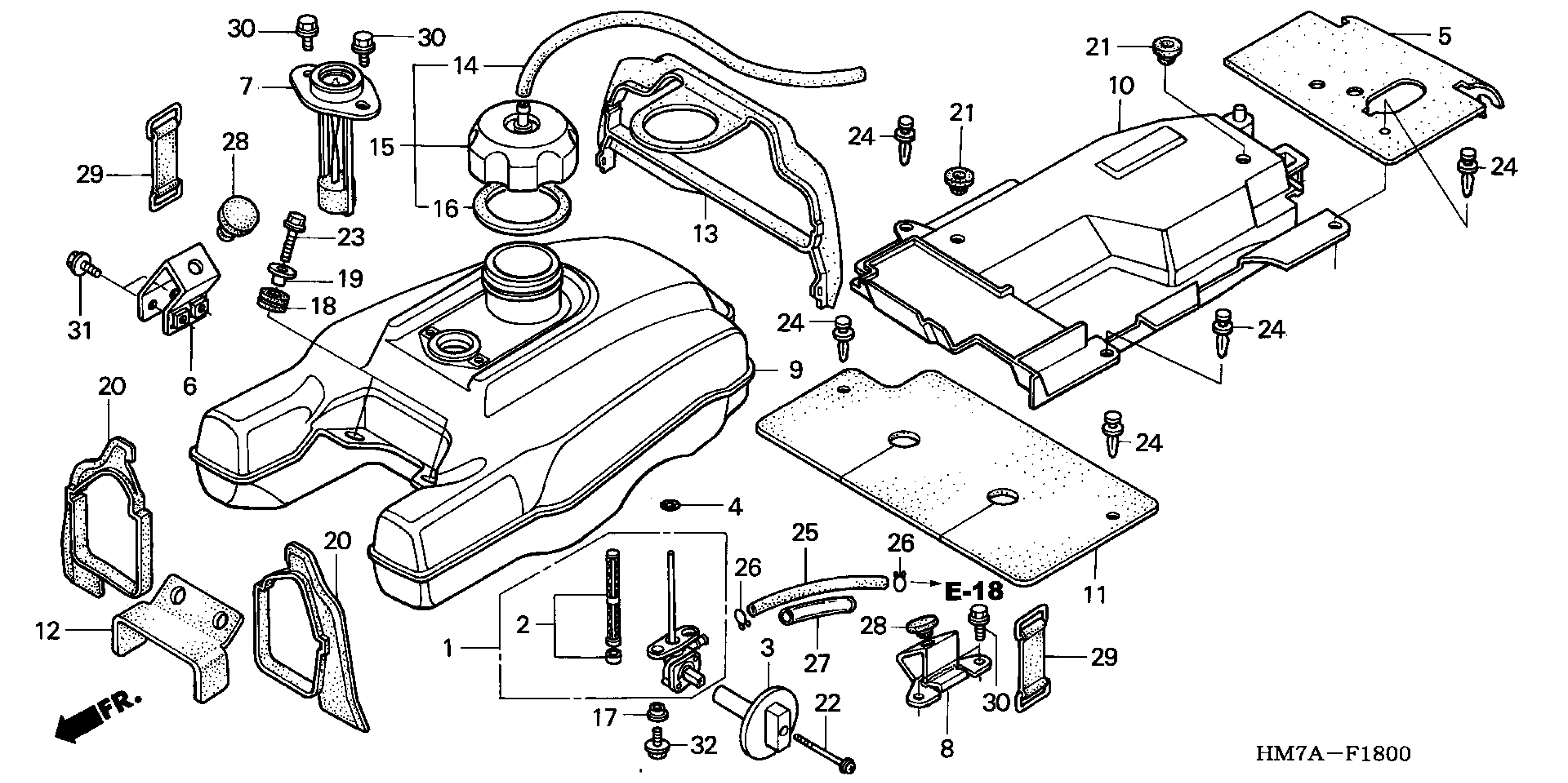

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-HM7-003

$111.15

2

SCREEN SET, FUEL STRAINER

16952-HM7-003

$20.62

3

LEVER, PETCOCK *NH1* (BLACK)

16963-HM7-000ZC

$74.04

4

O-RING (11.8X3.55)

16997-467-000

$2.01

5

RUBBER, SNORKEL

17261-HM7-A00

$16.07

6

STAY, R. RR. FUEL TANK

17502-HM7-000

Unavailable

7

METER ASSY., FUEL

17504-HM7-013

Unavailable

8

STAY, L. RR. FUEL TANK

17508-HM7-000

Unavailable

9

TANK, FUEL

17510-HM7-A10

Unavailable

10

HEAT PROTECTOR, TANK (LOWER)

17515-HM7-000

$47.28

11

PLATE, RUBBER

17516-HM7-000

Unavailable

12

RUBBER, FR. FUEL TANK

17517-HM7-000

$79.19

13

RUBBER, FUEL TANK SEAL

17518-HM7-A00

$21.58

14

TUBE, FUEL CAP BREATHER

17521-HM7-700

Unavailable

15

FUEL FILL CAP ASSY.

17620-HM7-700

Unavailable

16

GASKET, FUEL CAP

17624-HF7-000

$7.28

17

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

18

RUBBER, MUFFLER

18334-KA3-830

$3.62

19

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

20

SEAL, FR. STEERING RUBBER

61107-HM7-000

$16.13

21

RUBBER, SIDE COVER

83512-KA4-700

$4.26

22

SCREW-WASHER (5X80)

90101-HM7-000

$8.92

23

BOLT, SPECIAL (6X32)

90101-HM8-000

$4.09

24

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

25

BULK HOSE, FUEL (7.5X8000) (7.5X360)

95001-75008-60M

$93.20

26

CLIP, TUBE (B12)

95002-02120

Unavailable

27

BULK HOSE, VINYL (13X15X8000) (13X15X310)

95003-43008-10M

Unavailable

28

RUBBER C, STAND STOPPER

95011-63000

$3.64

29

BAND A, BATTERY

95012-11001

$2.77

30

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

31

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

31

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

32

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
