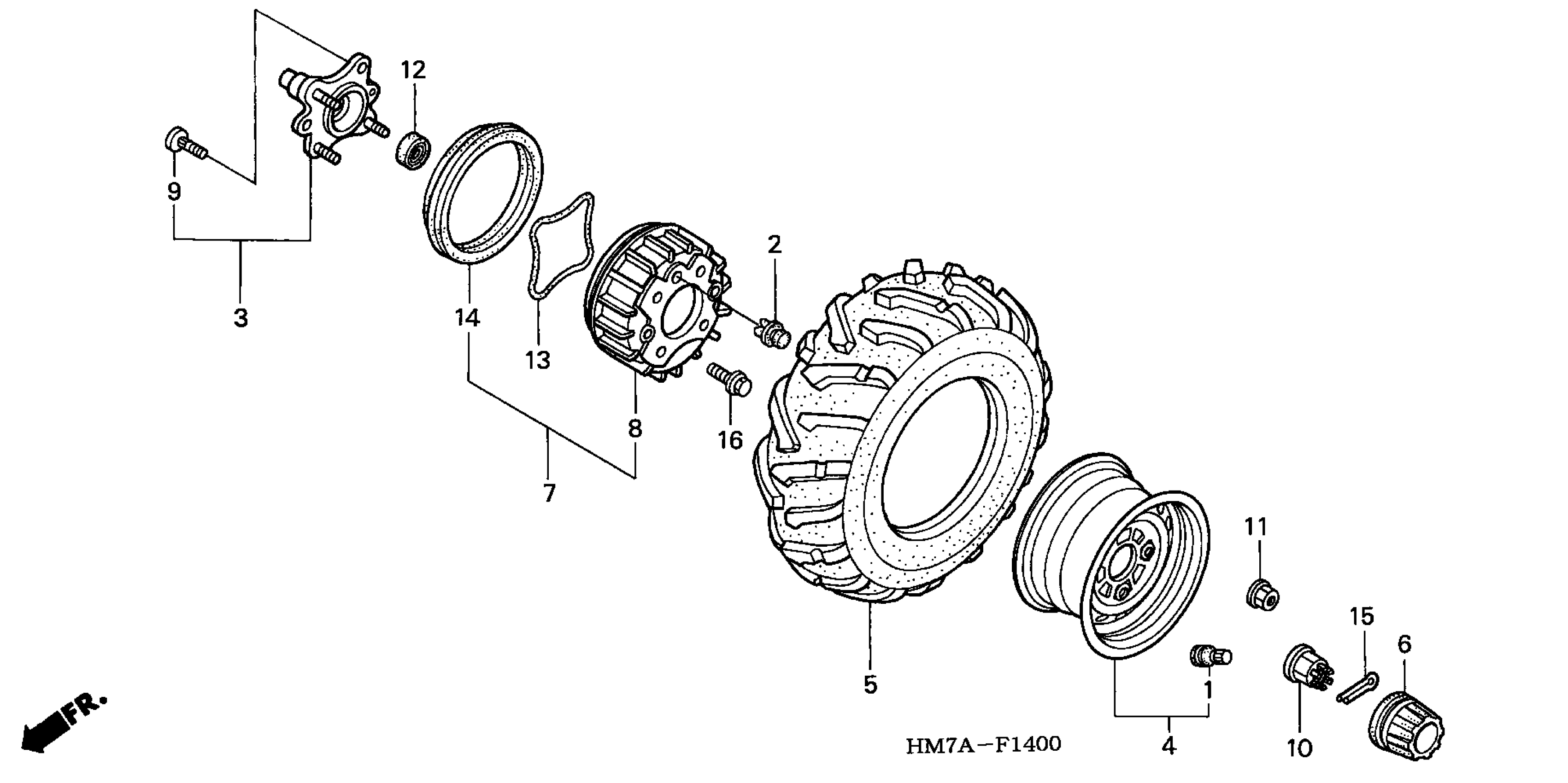

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 FRONT WHEEL Diagram

VALVE, RIM (TR412)

42753-HF1-670

$4.98

PLUG, ADJUSTING HOLE

44602-HM5-A10

$3.80

HUB, FR. WHEEL

44610-HM5-A80

$245.13

WHEEL SET, FR.

44650-HM7-A40

Unavailable

TIRE (24X8-11) (GOODYEAR)

44711-HM7-003

Unavailable

TIRE, FR. (24X8-11) (CST) (MUST BUY 2 TO REPLACE REAR TI RES AS A SET. PIB# MPB 13897)

44711-HM7-007

Unavailable

CAP, WHEEL CENTER

44732-HC4-000

$21.42

DRUM ASSY., FR. BRAKE

45700-HN5-670

$454.53

DRUM, FR. BRAKE

45710-HM5-930

$277.06

BOLT, WHEEL (10X38)

90104-HN0-A60

$6.96

NUT, CASTLE (16MM)

90305-HM5-A80

$4.75

NUT, WHEEL

90314-HM5-A10

$3.14

DUST SEAL, FR. BRAKE

91261-HN5-671

$34.55

DUST SEAL (19X22.5X10.5) (ARAI)

91263-HA7-771

$6.15

O-RING, BRAKE DRUM

91356-HA7-651

$10.74

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

PIN, SPLIT (3.0X45)

94201-30450

$0.96

BOLT, FLANGE (6X10)

96001-06010-00

$1.50
