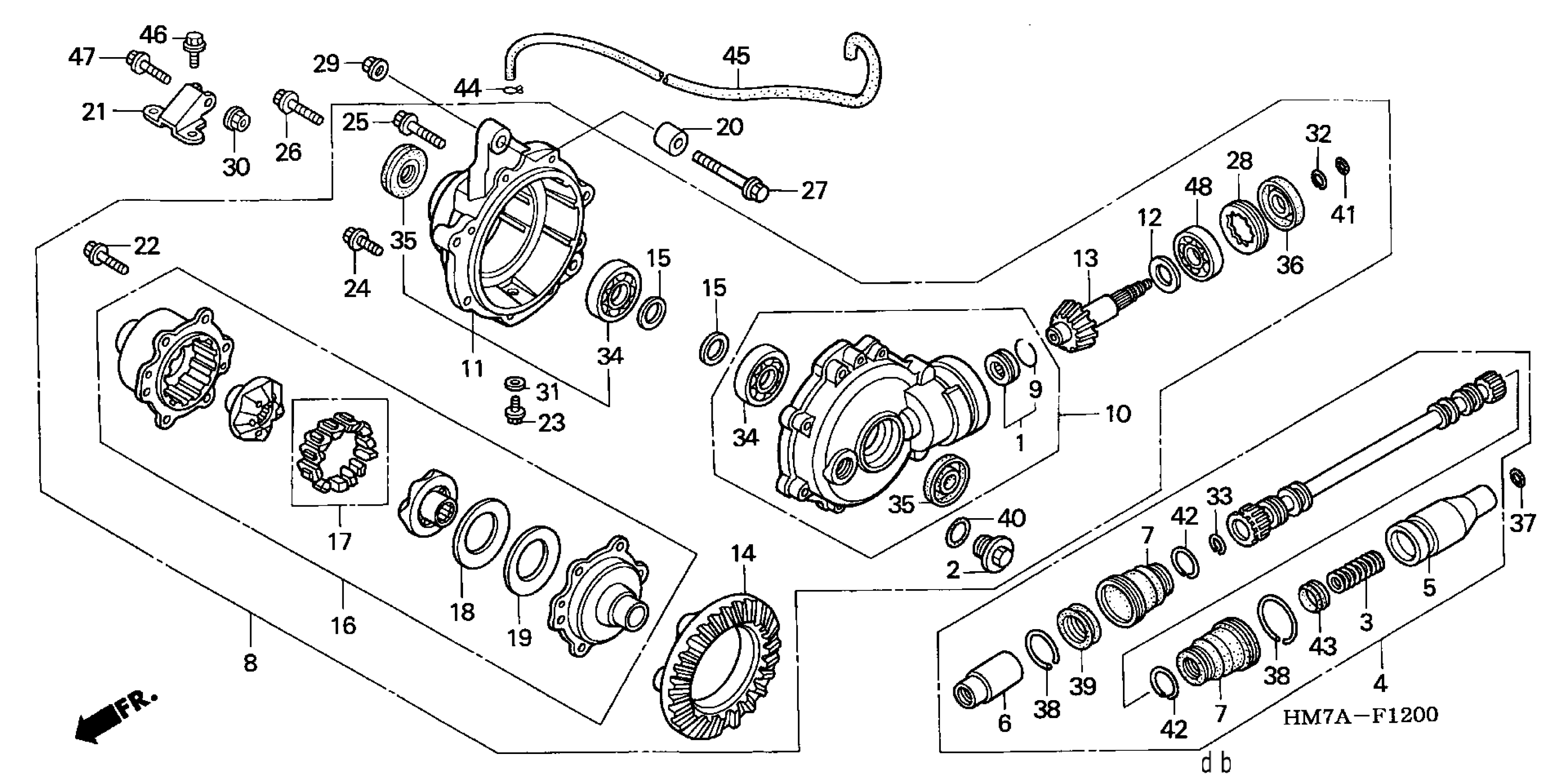

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 FRONT FINAL GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HM7-610

$15.13

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

SPRING, SHAFT

40215-HM7-000

$2.11

4

SHAFT ASSY., FR. PROPELLER

40400-HM7-A40

Unavailable

5

JOINT, FR. PROPELLER SHAFT

40402-HM7-610

Unavailable

6

JOINT, FR. FINAL

40403-HN5-670

Unavailable

7

BOOT B, PROPELLER

40420-HM7-A00

$13.36

8

GEAR ASSY., FR. FINAL This part replaces 41400-HN2-000.

41400-HN2-010

$697.20

8

GEAR ASSY., FR. FINAL

41400-HN2-010

$697.20

9

RING, STOPPER

41405-HA7-670

$2.97

10

CASE SUB-ASSY., FR. GEAR

41411-HN2-000

Unavailable

11

COVER SUB-ASSY., FR. GEAR

41420-HN2-000

$128.74

12

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

12

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

12

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

12

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

12

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

12

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

12

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

12

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

12

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

12

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

13

GEAR, FR. PINION (13T)

41521-HN2-000

Unavailable

14

GEAR, FR. RING (42T) This part replaces 41531-HN2-000.

41531-HN2-010

Unavailable

14

GEAR, FR. RING (42T)

41531-HN2-010

Unavailable

15

SHIM A, DIFFERENTIAL CASE (0.50)

41631-HC5-000

$12.43

15

SHIM B, DIFFERENTIAL CASE (0.55)

41632-HC5-000

$11.90

15

SHIM C, DIFFERENTIAL CASE (0.60)

41633-HC5-000

$11.90

15

SHIM D, DIFFERENTIAL CASE (0.65)

41634-HC5-000

$11.90

15

SHIM E, DIFFERENTIAL CASE (0.70)

41635-HC5-000

$11.90

15

SHIM F, DIFFERENTIAL CASE (0.75)

41636-HC5-000

$11.90

15

SHIM G, DIFFERENTIAL CASE (0.80)

41637-HC5-000

$11.90

15

SHIM H, DIFFERENTIAL CASE (0.85)

41638-HC5-000

$11.90

15

SHIM I, DIFFERENTIAL CASE (0.90)

41639-HC5-000

$11.90

15

SHIM J, DIFFERENTIAL CASE (0.95)

41640-HC5-000

$11.90

15

SHIM K, DIFFERENTIAL CASE (1.00)

41641-HC5-000

$12.43

15

SHIM L, DIFFERENTIAL CASE (1.05)

41642-HC5-000

$11.90

15

SHIM M, DIFFERENTIAL CASE (1.10)

41643-HC5-000

$11.90

15

SHIM N, DIFFERENTIAL CASE (1.15)

41644-HC5-000

$12.43

15

SHIM O, DIFFERENTIAL CASE (1.20)

41645-HC5-000

$11.90

15

SHIM P, DIFFERENTIAL CASE (1.25)

41646-HC5-000

$11.90

15

SHIM Q, DIFFERENTIAL CASE (1.30)

41647-HC5-000

$11.90

15

SHIM R, DIFFERENTIAL CASE (1.35)

41648-HC5-000

$11.90

15

SHIM S, DIFFERENTIAL CASE (1.40)

41649-HC5-000

$11.90

15

SHIM T, DIFFERENTIAL CASE (1.45)

41650-HC5-000

$11.90

15

SHIM U, DIFFERENTIAL CASE (1.50)

41651-HC5-000

$11.90

15

SHIM V, DIFFERENTIAL CASE (1.55)

41652-HC5-000

$11.90

15

SHIM W, DIFFERENTIAL CASE (1.60)

41653-HC5-000

$11.90

16

DIFFERENTIAL ASSY.

42400-HN0-671

$319.92

17

FOLLOWER SET, CAM

42440-HN5-671

$59.10

18

SHIM A (1.3)

42451-HN7-003

$2.13

18

SHIM B (1.4)

42452-HN7-003

$2.13

18

SHIM C (1.5)

42453-HN7-003

$2.13

18

SHIM D (1.6)

42454-HN7-003

$2.13

18

SHIM E (1.7)

42455-HN7-003

$2.13

18

SHIM F (1.8)

42456-HN7-003

$2.13

18

SHIM G (1.9)

42457-HN7-003

$2.13

19

SPRING, DIFFERENTIAL SIDE CONED

42461-HN5-671

$15.92

20

COLLAR, FR. ENGINE HANGER

50304-KS3-900

$9.13

21

BRACKET, FR. GEAR CASE

50350-HC5-970

$4.35

22

BOLT, UBS (8X17) This part replaces 90101-HA7-670.

90101-HN2-680

$4.30

23

BOLT, SEALING (8MM)

90109-371-000

$2.58

24

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

25

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

26

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

27

BOLT, FLANGE (10X48)

90154-HC5-000

$8.80

28

NUT, LOCK (64MM)

90242-MB0-000

$32.52

29

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

30

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

30

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

31

GASKET (8MM)

90471-580-000

$2.92

32

CLIP, PISTON PIN (1.2X18)

90601-430-000

$3.28

33

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

34

BEARING, RADIAL BALL (29X52X12) (NTN)

91052-HC5-003

$36.26

34

BEARING, RADIAL BALL (29X52X12) (KOYO)

91052-HC5-004

$34.18

35

OIL SEAL (22X48X7) (ARAI)

91252-HC5-003

$9.38

36

OIL SEAL (30X70X11)

91252-HN2-003

$18.74

37

O-RING (16X1.5)

91302-GF9-000

$3.33

38

BAND, BOOT (D27)

91302-HM7-A00

$7.93

39

SEAL, PROPELLER

91302-HN5-671

$3.72

40

O-RING (30.8MM)

91302-001-020

$3.75

41

O-RING (11X1.9) (NOK) This part replaces 91301-671-671.

91303-HA0-004

$2.13

41

O-RING (11X1.9) (ARAI)

91303-HA0-000

Unavailable

41

O-RING (11X1.9) (NOK) This part replaces 91303-HA0-003.

91303-HA0-004

$2.13

41

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

42

BAND, BOOT (D20)

91303-HM7-A00

$7.93

43

SEAL B, RUBBER

91303-HM7-003

$9.15

44

CLIP, TUBE (C6.5)

95002-35000

$1.49

45

BULK HOSE, VACUUM (3.5X1000) (3.5X575)

95005-35001-30M

$8.63

46

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

47

BOLT, FLANGE (8X30)

95801-08030-00

$1.57

48

BEARING, RADIAL BALL (6206)

96100-62060-00

$23.53
