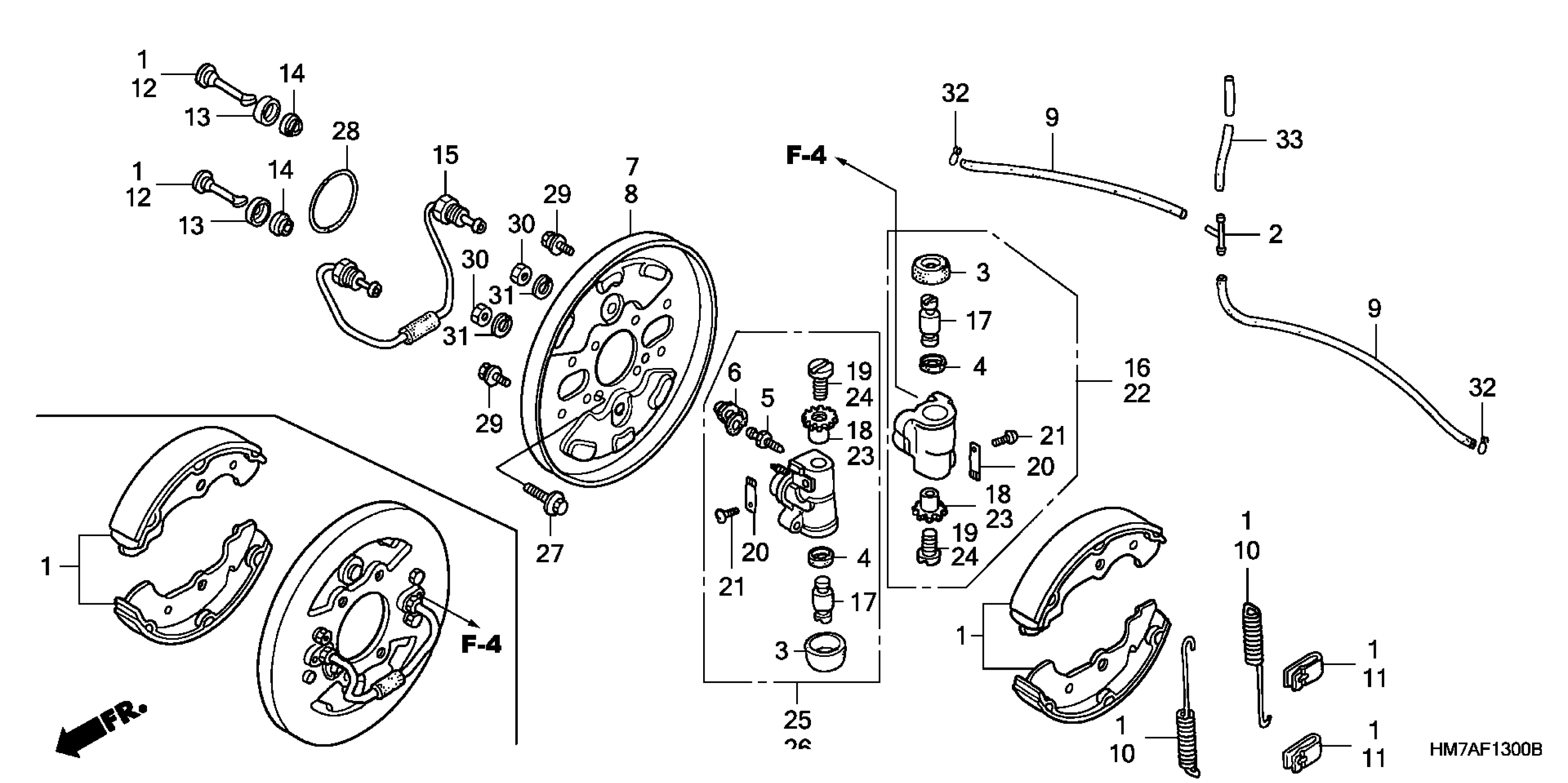

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE

06450-HN5-671

$51.93

JOINT, TUBE This part replaces 38581-671-003.

38581-679-003

$14.74

JOINT, TUBE

38581-679-003

$14.74

COVER, DUST

43315-SN4-003

$5.31

COVER, DUST This part replaces 43315-671-631.

43315-SN4-003

$5.31

CUP, PISTON

43322-663-003

$6.38

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

PLATE, R. BACK

45110-HN0-671

Unavailable

PLATE, L. BACK

45120-HN0-671

Unavailable

TUBE, FR. BRAKE BREATHER

45136-HM7-000

$6.49

SPRING, BRAKE

45171-HN5-671

$3.65

SPRING, SHOE CLAMP

45172-S04-003

$1.80

PIN, TENSION

45175-HC4-006

$4.17

CAP, PIN (NISSIN)

45176-HM5-A81

$7.41

SEAL, PIN (NISSIN)

45177-HA7-651

$6.89

PIPE, FR. WHEEL CYLINDER

45181-HC5-006

$19.78

CYLINDER A, R. FR. This part replaces 45310-HN0-A01.

45310-HN0-505

$31.75

PISTON

45314-HN0-A01

$8.61

NUT, R. ADJUSTER

45316-VM0-003

$9.18

SCREW, R. ADJUSTING

45317-634-013

$5.78

LOCK, SPRING

45318-HA7-671

$5.87

SCREW-WASHER (4X6)

45319-634-003

$2.48

CYLINDER ASSY. A, L. FR. WHEEL

45330-HN0-A01

$31.75

NUT, L. ADJUSTER

45336-VM0-003

$9.74

SCREW, L. ADJUSTING

45337-634-013

$5.78

CYLINDER ASSY. B, R. FR. WHEEL This part replaces 45350-HN0-A01.

45350-HN5-N01

$35.06

CYLINDER ASSY. B, R. FR. WHEEL

45350-HN5-N01

$35.06

CYLINDER ASSY. B, L. FR. WHEEL This part replaces 45370-HN0-A01.

45370-HN5-N01

$35.06

BOLT, FLANGE (8X20)

90115-HA7-651

$4.67

O-RING (64.6X1.7)

91357-HM7-003

$5.22

BOLT-WASHER (6X12)

93402-06012-08

$1.62

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08800

$1.49

CLIP, TUBE (C6.5)

95002-35000

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X200)

95005-35001-30M

$8.63
