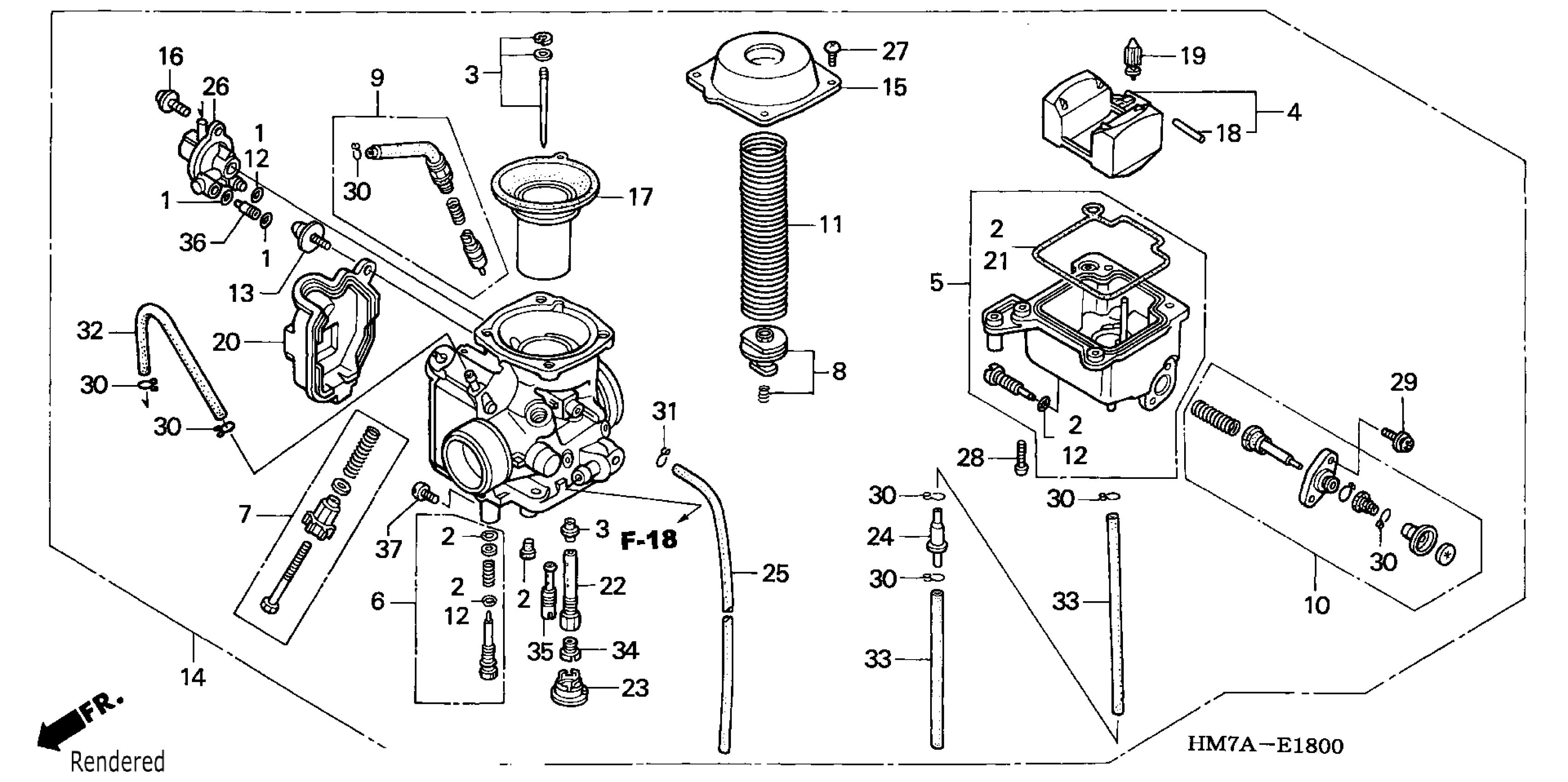

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$16.19

2

GASKET SET

16010-HM7-700

$22.38

3

NEEDLE SET, JET

16012-HM7-671

Unavailable

4

FLOAT SET This part replaces 16013-HN0-003.

16013-KFR-701

Unavailable

5

CHAMBER SET, FLOAT

16015-HM7-700

Unavailable

6

SCREW SET

16016-HM7-670

$26.54

7

SCREW SET

16028-HM5-730

$15.33

8

PLATE SET, VALVE

16037-HM5-L00

$18.35

9

VALVE SET, STARTER

16046-HM5-730

$60.61

10

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$78.73

11

SPRING, COMPRESSION COIL

16050-HM5-L00

$10.84

12

O-RING (1.3X4.3)

16076-ND5-004

$2.26

13

SCREW-WASHER

16080-HC0-003

$3.86

14

CARBURETOR ASSY. (VE92C C)

16100-HM7-L02

$510.10

15

TOP

16107-KM3-702

Unavailable

16

SCREW

16108-MW0-750

$2.29

17

PISTON, VACUUM

16111-HM7-670

$83.22

18

PIN, ARM This part replaces 16152-HN5-671.

16152-HN8-003

$3.80

18

PIN, ARM

16152-HN8-003

$3.80

19

VALVE, FLOAT This part replaces 16155-KJ9-751.

16155-413-751

$29.18

19

VALVE, FLOAT

16155-413-751

$29.18

20

COVER, BODY

16157-HN8-003

$24.70

21

GASKET, FLOAT CHAMBER

16163-HM7-700

$9.03

22

HOLDER, NEEDLE JET This part replaces 16165-HC4-840.

16165-HN5-B01

$28.17

22

HOLDER, NEEDLE JET

16165-HN5-B01

$28.17

23

HOLDER, JET

16168-HC4-003

$9.70

24

VALVE, ONE-WAY

16180-HC4-003

$16.19

25

TUBE

16199-HM7-670

Unavailable

26

VALVE ASSY., AIR CUT

16510-HM7-671

Unavailable

27

SCREW, PAN (4X8)

93500-04008-0H

$0.83

27

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.83

28

SCREW, PAN (4X14)

93500-04014-0H

$0.75

28

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.75

29

SCREW-WASHER (4X12)

93892-04012-08

$0.58

29

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

30

CLIP, TUBE (B7)

95002-02079

$1.09

31

CLIP, TUBE (B8)

95002-02089

Unavailable

32

BULK HOSE, VACUUM (3.5X1000) (3.5X110)

95005-35001-20M

$8.69

33

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

95005-35001-50M

$12.31

34

JET, MAIN (#125) | (Optional). This part replaces 99101-GHB-1250.

99101-443-1250

$5.39

34

JET (#130) This part replaces 99101-GHB-1300.

99101-MEG-1300

$9.67

34

JET (#130)

99101-MEG-1300

$9.67

34

JET (#130) This part replaces 99101-393-1300.

99101-MEG-1300

$9.67

34

JET, MAIN (#125) | (Optional).

99101-443-1250

$5.39

35

JET, SLOW (#45) This part replaces 99103-MA1-0450.

99104-KPF-0450

$10.64

35

JET, SLOW (#45)

99104-KPF-0450

$10.64

36

JET (#140)

99108-HM7-1400

$13.28

37

JET (#85) This part replaces 99112-HC4-0850.

99112-HN2-0850

$15.43

37

JET (#85)

99112-HN2-0850

$15.43
