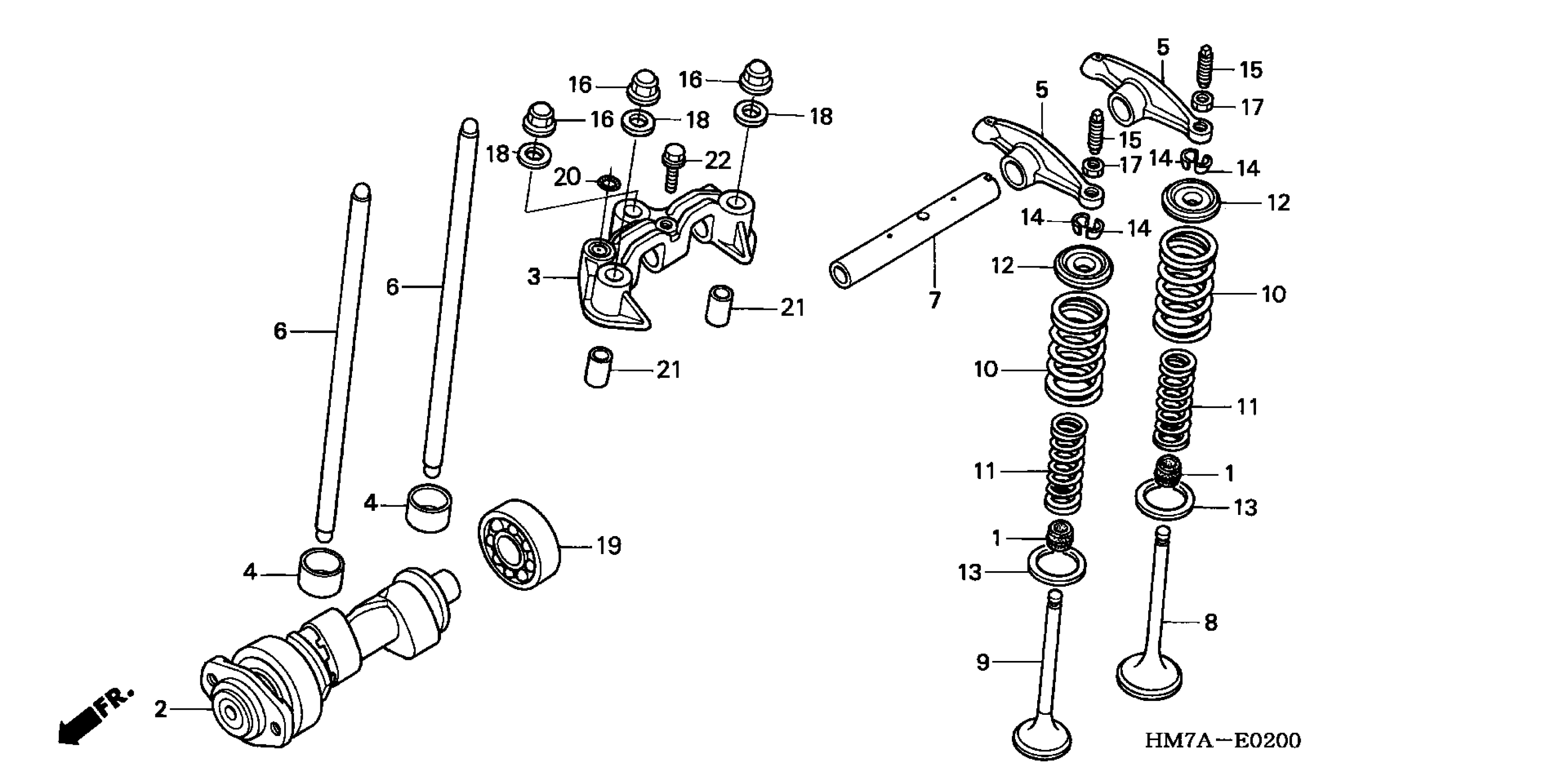

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (NOK)

12209-KL4-005

$7.81

CAMSHAFT

14100-HM7-000

$80.21

HOLDER, ROCKER ARM

14411-HM7-000

Unavailable

FOLLOWER, CAM

14421-HM7-000

$35.38

ARM, VALVE ROCKER

14431-HM7-000

Unavailable

ROD, PUSH

14440-HM7-010

Unavailable

SHAFT, ROCKER ARM

14450-HM7-000

Unavailable

VALVE, IN.

14711-HM7-000

Unavailable

VALVE, EX.

14721-HM7-000

Unavailable

SPRING, VALVE (OUTER)

14751-HM7-003

Unavailable

SPRING VALVE (INNER)

14761-HM7-003

Unavailable

RETAINER, VALVE SPRING

14771-KE5-000

$11.72

SEAT, VALVE SPRING

14775-KE5-000

$4.94

COTTER, VALVE

14781-HA0-770

$3.45

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

NUT, CAP (10MM)

90201-HA0-000

$6.45

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

WASHER (10MM)

90465-MM9-000

$3.54

BEARING, RADIAL BALL (6203)

91004-HN0-671

$11.80

O-RING (7.7X2.5)

91303-428-003

$1.90

PIN A, DOWEL (12X16)

94301-12160

$2.27

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
