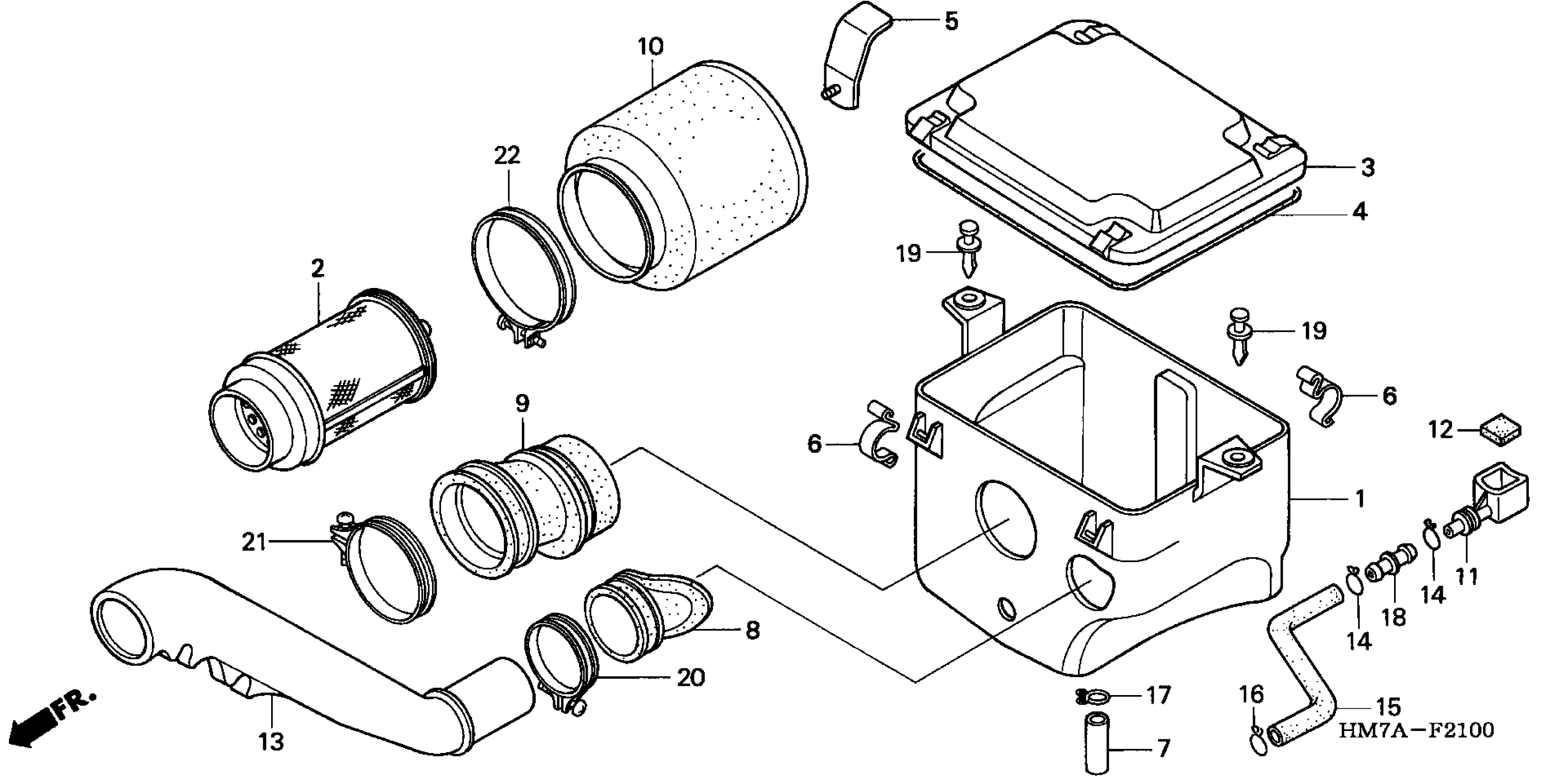

Honda TRX400FWA (03) FOURTRAX FOREMAN, USA, VIN# 478TE200-34400001 AIR CLEANER Diagram

#

Description
Price

1

AIR CLEANER HOUSING

17210-HM7-L01

Unavailable

2

BODY, AIR CLEANER

17211-HM7-000

$110.19

3

COVER, AIR CLEANER HOUSING

17217-HM7-000

$11.76

4

SEAL, AIR CLEANER COVER

17219-HM7-000

$10.19

5

STAY, AIR CLEANER ELEMENT

17221-HM7-000

$11.66

6

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

7

TUBE, AIR CLEANER DRAIN

17224-HM5-930

$9.45

8

SEAL B, AIR CLEANER DUCT

17252-HC4-000

$15.71

8

SEAL B, AIR CLEANER DUCT This part replaces 17252-HM5-730.

17252-HC4-000

$15.71

9

TUBE, AIR CLEANER CONNECTING

17253-HM7-000

Unavailable

10

AIR CLEANER

17254-HC5-900

$15.08

11

JOINT, BREATHER

17255-HM7-L00

$156.77

12

COVER, DUST

17256-HM7-L00

$8.25

13

DUCT, SNORKEL

17259-HM7-000

$24.25

14

CLIP, BREATHER TUBE

17316-611-000

$8.28

15

TUBE, BREATHER

17366-HM7-L00

Unavailable

16

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

17

CLIP, AIR HOSE (21.5)

18532-634-670

$7.39

18

JOINT (TWO-WAY)

18631-MAH-710

$7.73

19

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

20

BAND, CONNECTING TUBE (54)

90654-HM8-A60

$6.58

21

BAND, AIR CONNECTING TUBE (62)

90662-HN5-M00

$1.33

22

BAND, AIR CONNECTING TUBE (76)

90676-HN5-M00

$1.70
