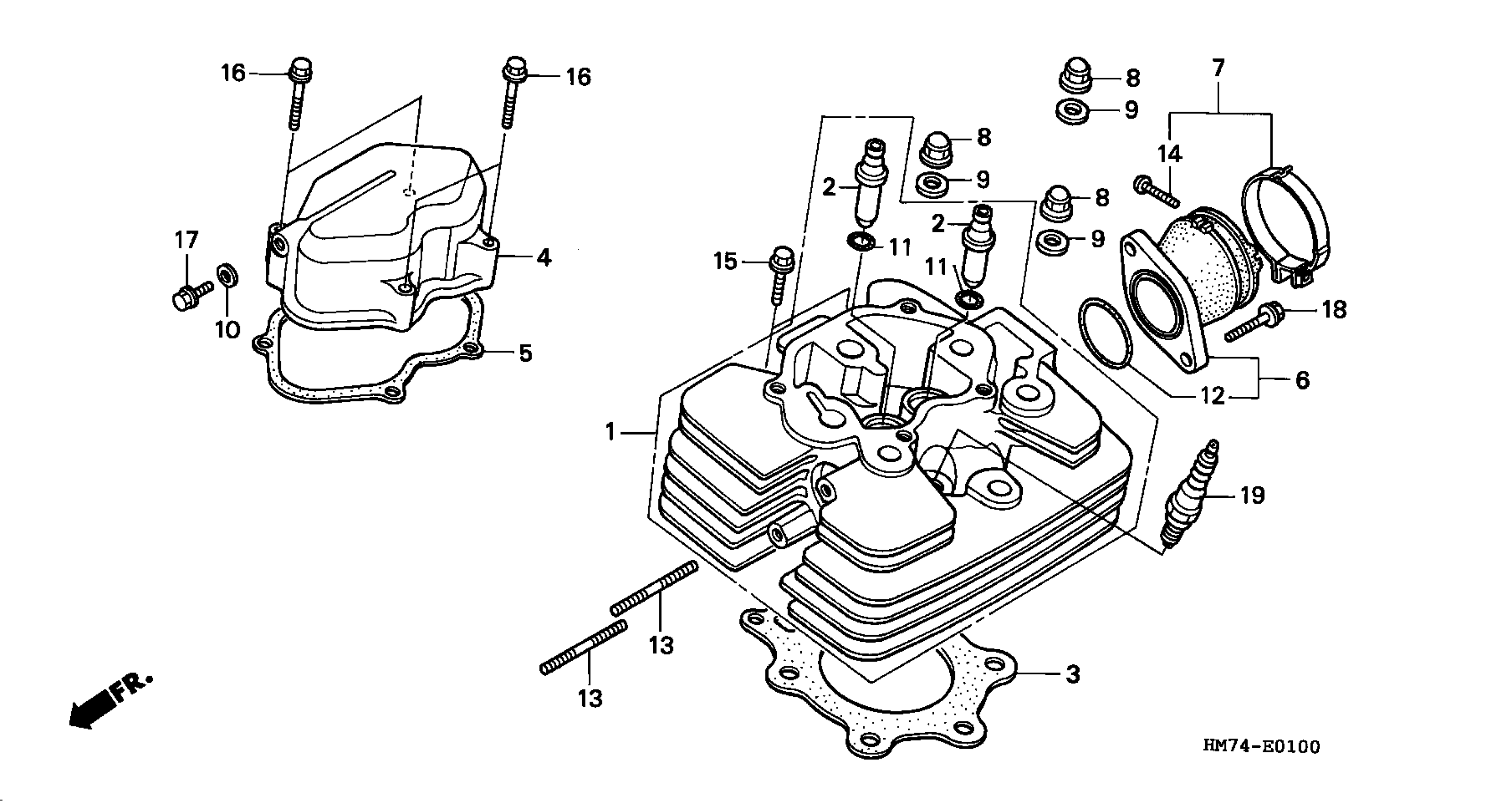

Honda TRX400FWA (02) FOURTRAX FOREMAN, USA, VIN# 478TE200-24300001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HM7-000

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-HM7-305

$21.96

3

GASKET, CYLINDER HEAD

12251-HM7-004

Unavailable

3

GASKET, CYLINDER HEAD (OS 0.75-1.00) | (Optional).

12252-HM7-305

Unavailable

4

COVER, CYLINDER HEAD

12311-HN0-670

Unavailable

5

GASKET, CYLINDER HEAD COVER

12315-HM7-005

$28.53

6

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-HM7-003

Unavailable

7

BAND, INSULATOR

16219-HC4-000

$11.76

8

NUT, CAP (10MM)

90201-HA0-000

$6.45

8

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

9

WASHER (10MM)

90404-ZG3-000

$4.33

10

WASHER, SEALING (6MM)

90441-706-000

$1.49

11

O-RING (10X1.6)

91301-200-000

$3.01

12

O-RING (33.7X2.4)

91305-HA0-680

$8.66

13

BOLT, STUD (8X25)

92900-08025-0B

$2.20

14

SCREW, PAN (5X28)

93500-05028-0G

$1.49

15

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

16

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

17

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

18

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

19

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

19

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

19

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

19

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

19

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

19

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
