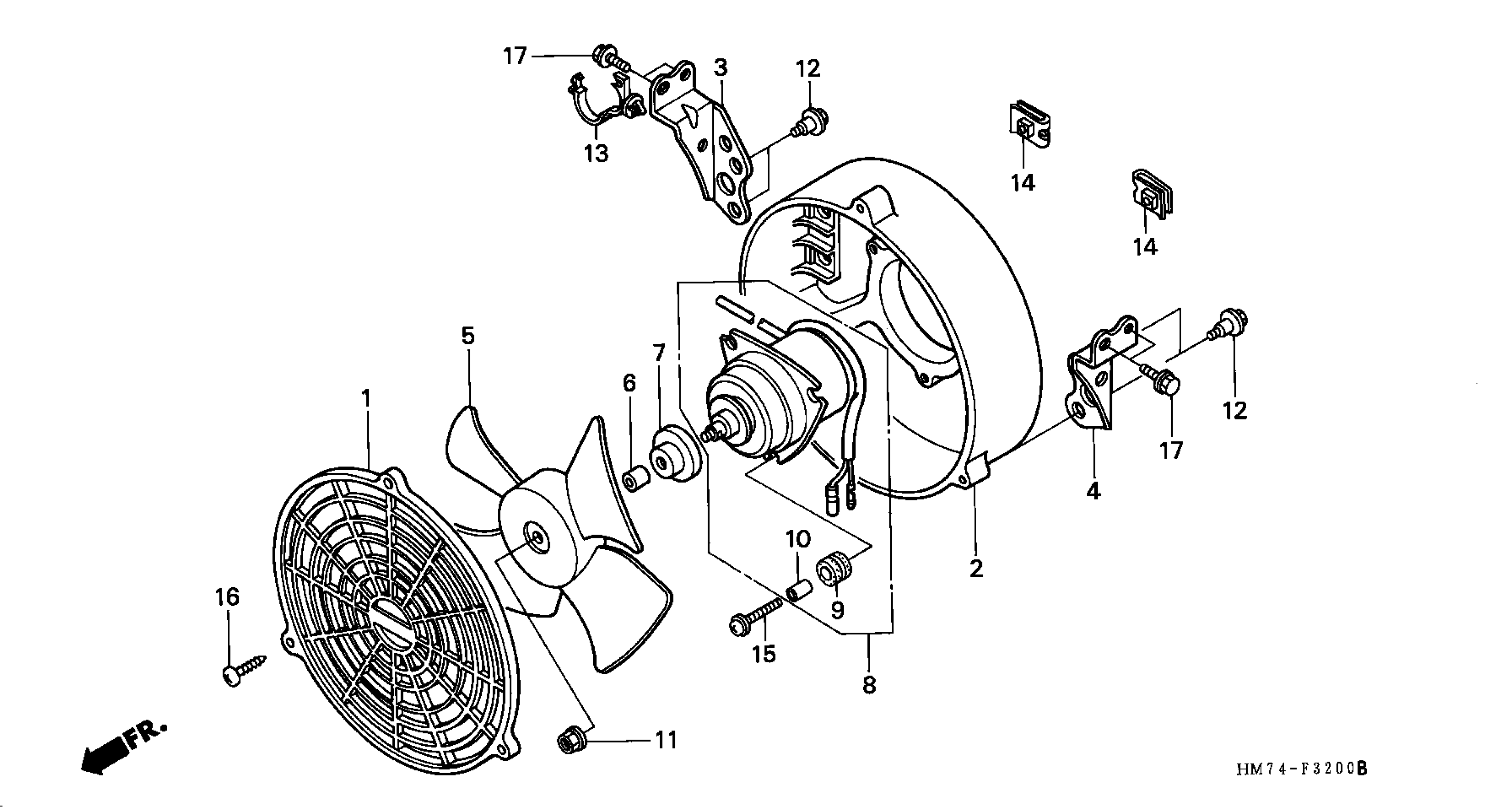

Honda TRX400FWA (02) FOURTRAX FOREMAN, USA, VIN# 478TE200-24300001 COOLING FAN Diagram

Description

Price

COVER, SHROUD

19014-HM7-000

$17.39

SHROUD, COOLING FAN

19015-HM7-000

$31.98

STAY, R. COOLING FAN

19018-HM7-000

Unavailable

STAY, L. COOLING FAN

19019-HM7-000

$4.59

FAN, COOLING

19020-HM7-000

$47.94

SPACER, FAN

19021-HC4-000

$5.28

CUP, WASHER

19021-VM5-305

$20.30

MOTOR, COOLING FAN

19030-HM7-003

$367.51

GROMMET

19031-HA7-671

$4.04

COLLAR

19032-HA7-671

$3.48

NUT, HEX. (5MM) (MITSUBA)

90041-PG6-004

$5.26

BOLT, FLANGE (6MM)

90111-197-890

$3.67

CLAMP, HARNESS

90652-HC4-003

$5.95

NUT, CLIP (6MM)

90673-SB2-000

$6.96

SCREW-WASHER (4X20)

93894-04020-00

$1.49

SCREW, TAPPING (4X16) (PO)

93913-24480

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
