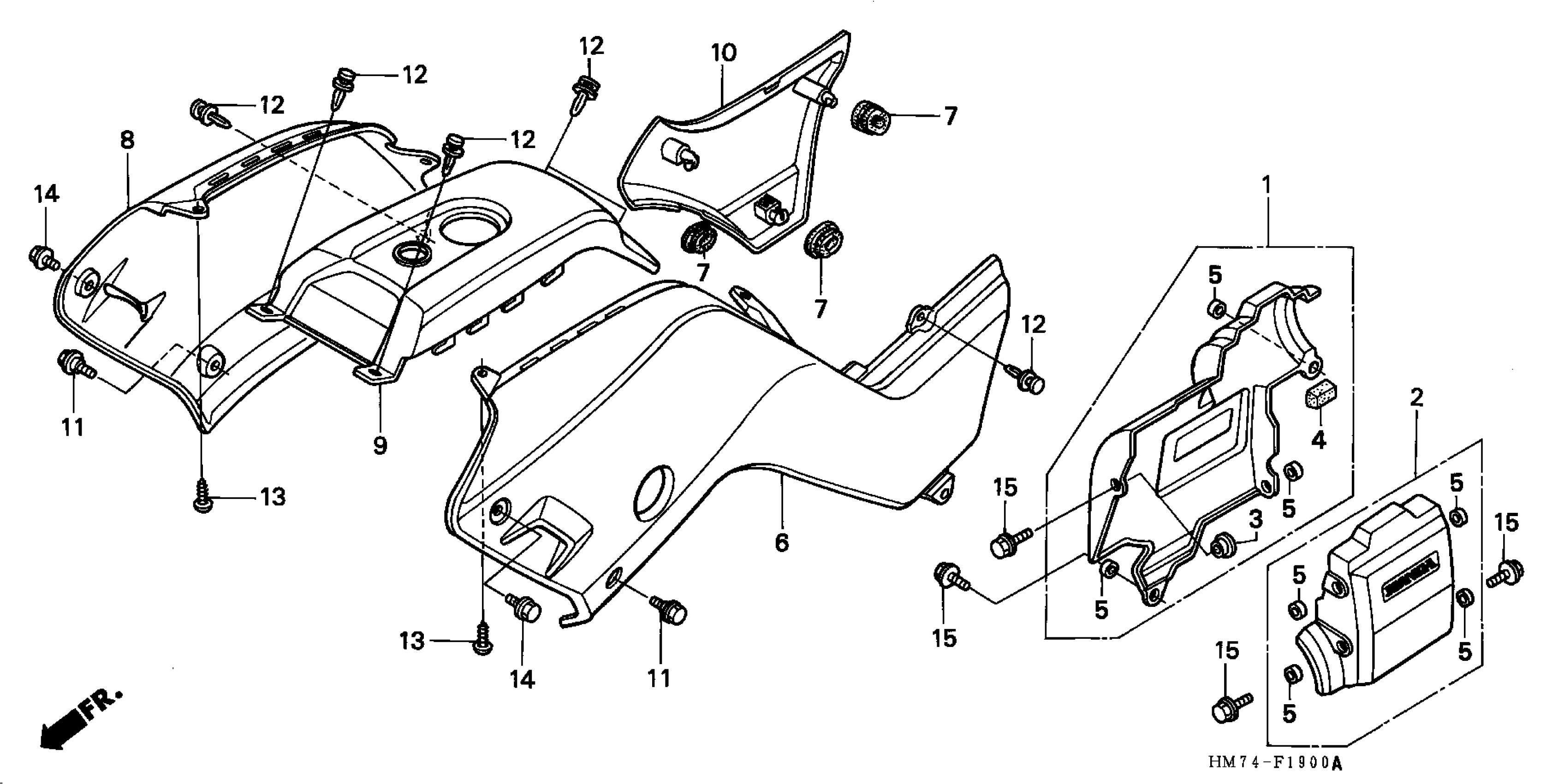

Honda TRX400FWA (02) FOURTRAX FOREMAN, USA, VIN# 478TE200-24300001 BODY COVER Diagram

#

Description
Price

1

COVER, R. ENGINE SIDE

11310-HM7-000

Unavailable

2

COVER, L. ENGINE SIDE

11320-HN0-A00

Unavailable

3

COLLAR, FR. WHEEL COVER

44125-MN5-000

$5.12

4

RUBBER, FUEL TANK CUSHION

50225-MY5-610

$5.10

5

COLLAR (6X4)

52156-353-300

$6.32

6

COVER, L. TANK SIDE *YR176* (HARVEST BEIGE)

83500-HM7-A00ZD

Unavailable

6

COVER, L. TANK SIDE *G152* (ADVENTURE GREEN)

83500-HM7-A00ZA

$53.75

6

COVER, L. TANK SIDE *R232* (PATRIOT RED)

83500-HM7-A00ZC

$101.19

7

GROMMET, SIDE COVER

83551-HM5-730

$1.49

8

COVER, R. FUEL TANK SIDE *YR176* (HARVEST BEIGE)

83600-HM7-A00ZD

Unavailable

8

COVER, R. FUEL TANK SIDE *G152* (ADVENTURE GREEN)

83600-HM7-A00ZA

$135.75

8

COVER, R. FUEL TANK SIDE *R232* (PATRIOT RED)

83600-HM7-A00ZC

$114.47

9

COVER, FUEL TANK TOP *NH1* (BLACK)

83700-HM7-000ZD

$58.18

10

COVER, R. SIDE *YR176* (HARVEST BEIGE)

83800-HM7-A00ZD

$48.67

10

COVER, R. SIDE *G152* (ADVENTURE GREEN)

83800-HM7-A00ZA

$50.86

10

COVER, R. SIDE *R232* (PATRIOT RED)

83800-HM7-A00ZC

$50.52

11

BOLT, FLANGE (6MM)

90111-ZB5-000

$3.76

12

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

13

SCREW, TAPPING (4X10)

93903-24220

$1.49

14

BOLT, FLANGE (6X8)

95701-06008-07

$1.49

15

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
