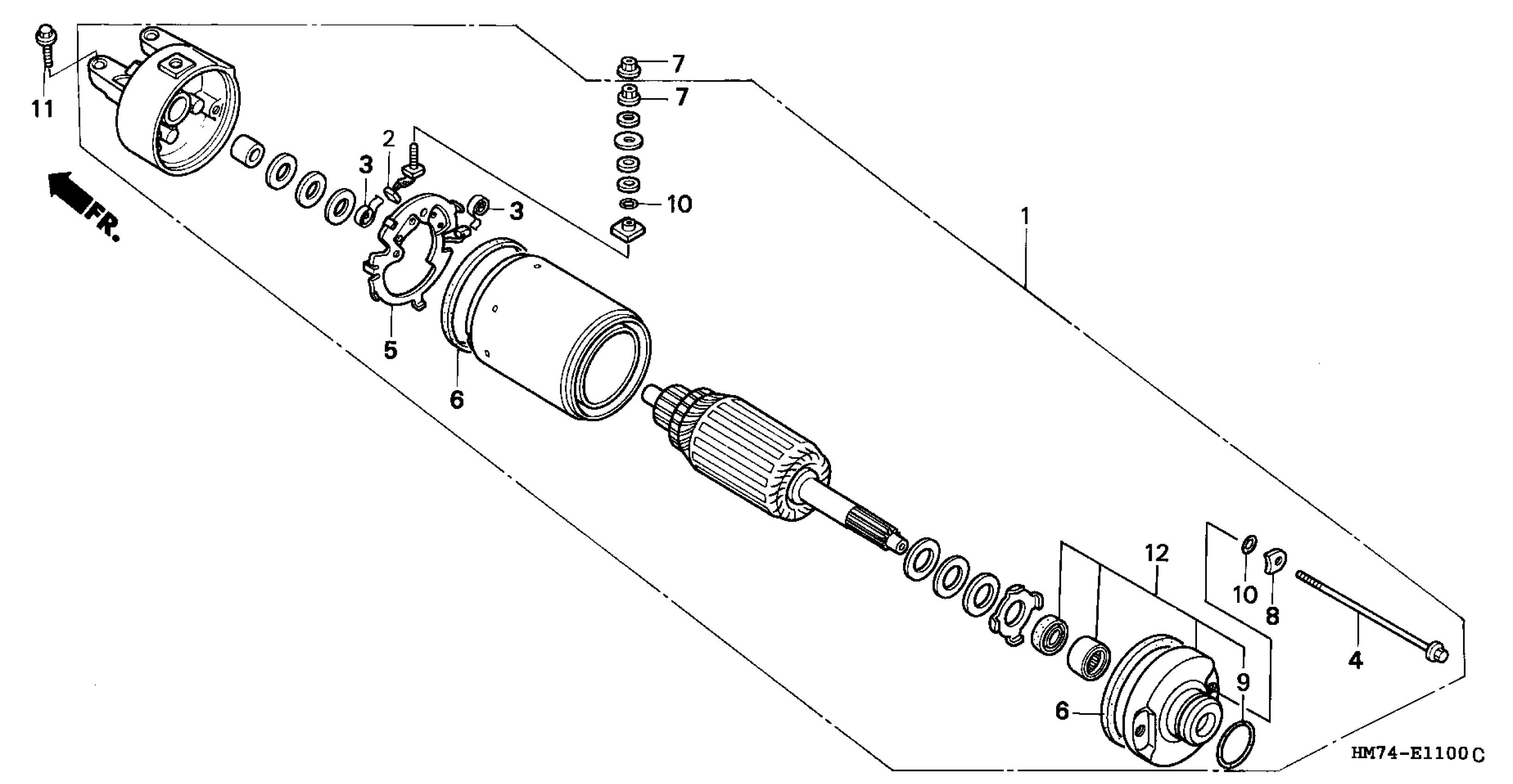

Honda TRX400FWA (01) FOURTRAX FOREMAN, USA, VIN# 478TE200-14200001 STARTER MOTOR Diagram

STARTER MOTOR ASSY.

31200-HM7-003

$458.13

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

BOLT, SETTING

31205-MN4-008

$5.80

HOLDER SET, BRUSH

31206-MN4-008

$23.32

RING

31207-KS5-901

$3.12

NUT-WASHER (6MM)

90071-MB0-000

$1.97

WASHER, STEEL PLATE

90122-MN4-008

$2.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING (4X2)

91320-MB0-000

$2.43

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

BRACKET, FR.

31210-HM7-003

$81.85
