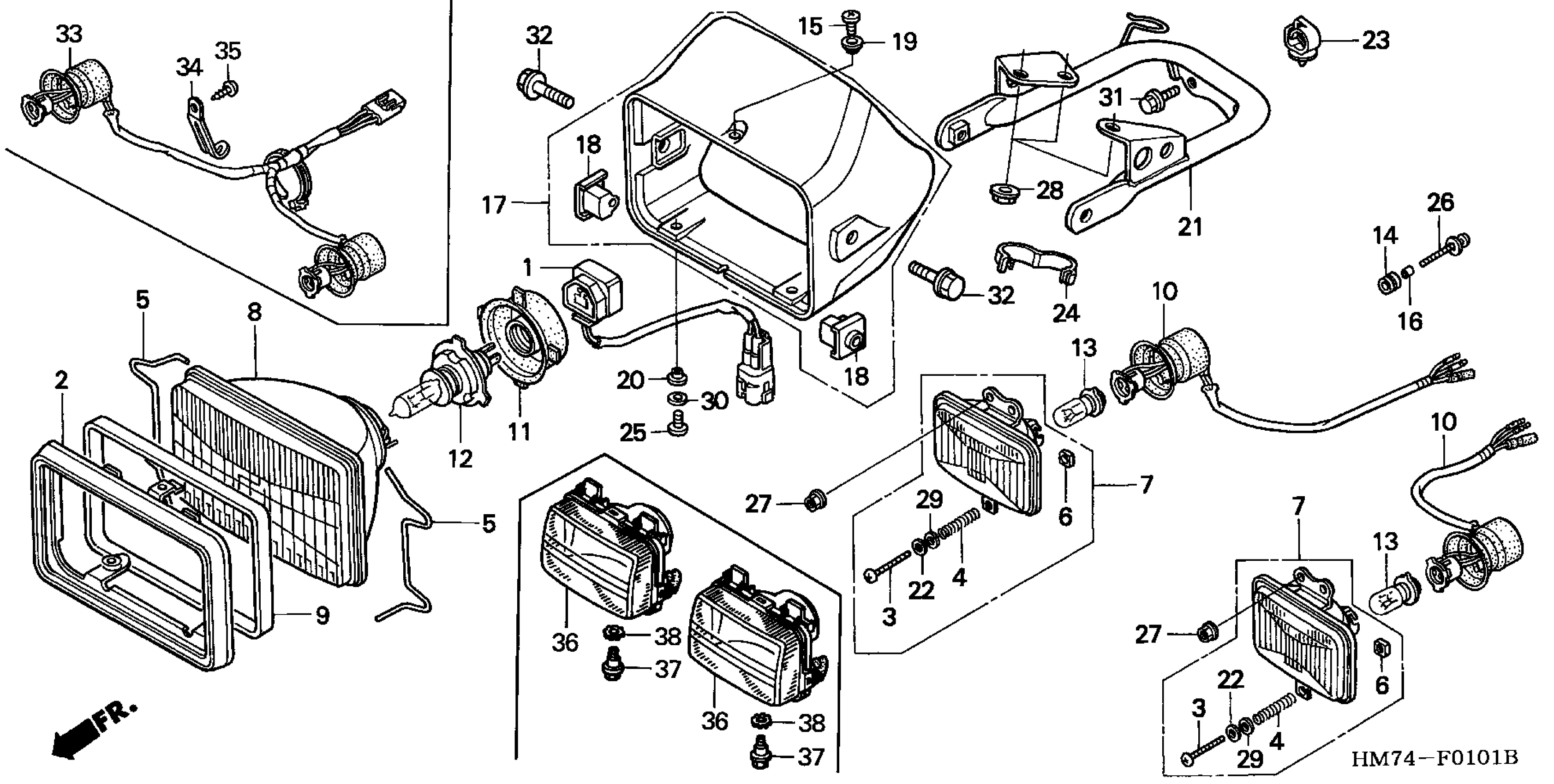

Honda TRX400FWA (00) FOURTRAX FOREMAN, USA, VIN# 478TE200-Y4100001 HEADLIGHT 97-02 Diagram

SUB-WIRE, HEADLIGHT

32500-HM7-000

Unavailable

RIM, HEADLIGHT

33101-HA8-680

Unavailable

SCREW, BEAM ADJUSTING

33103-KF0-670

$4.24

SPRING, HEADLIGHT BEAM ADJUSTING

33107-246-003

$2.23

SPRING, UNIT HOLDER

33109-440-931

Unavailable

NUT, BEAM ADJUSTING (STANLEY)

33117-KA2-003

$1.94

HEADLIGHT UNIT

33120-HF1-670

$72.80

HEADLIGHT UNIT This part replaces 33120-HM7-740.

33120-HA7-740

Unavailable

SHADE

33121-HM7-700

Unavailable

COVER, RUBBER (NOT AVAILABLE)

33141-HA7-670

Unavailable

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-MS2-671.

34901-MS2-672

$37.46

BULB, HEADLIGHT (12V 45/45W) (STANLEY)

34901-MS2-672

$37.46

BULB (12V25/25W) (STANLEY) This part replaces 34901-066-003.

34901-706-000

$5.08

BULB (12V25/25W) (STANLEY)

34901-706-000

$5.08

GROMMET, SIDE COVER

50142-HM5-670

$12.26

SCREW, CROSS-RECESSED HEAD MACHINE

52426-KM4-003

$2.39

COLLAR, HEADLIGHT MOUNTING

61105-HM5-730

$1.93

CASE, HEADLIGHT

61301-HM7-750

$53.10

COLLAR A, HEADLIGHT CASE

61302-HA7-670

Unavailable

COLLAR, HEADLIGHT SETTING

61304-HM7-000

$5.60

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

BRACKET, LIGHT CASE

61310-HM7-610

Unavailable

WASHER, BEAM ADJUSTING

90286-147-670

$2.39

CLIP, RETURN HOSE This part replaces 53728-SM4-J65.

53729-SS0-003

$8.51

CLIP, RETURN HOSE

53729-SS0-003

$8.51

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

BOLT, RECESSED (5X16)

92301-05016-0A

$1.49

SCREW-WASHER (4X18)

93894-04018-08

$1.49

NUT, FLANGE (4MM)

94050-04080

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

WASHER, PLAIN (3MM)

94103-03800

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

SOCKET, HEADLIGHT

33130-HN0-A01

Unavailable

CLIP, TUBE

90010-GE0-710

$2.08

SCREW, TAPPING (5X12)

93903-25220

$1.49
