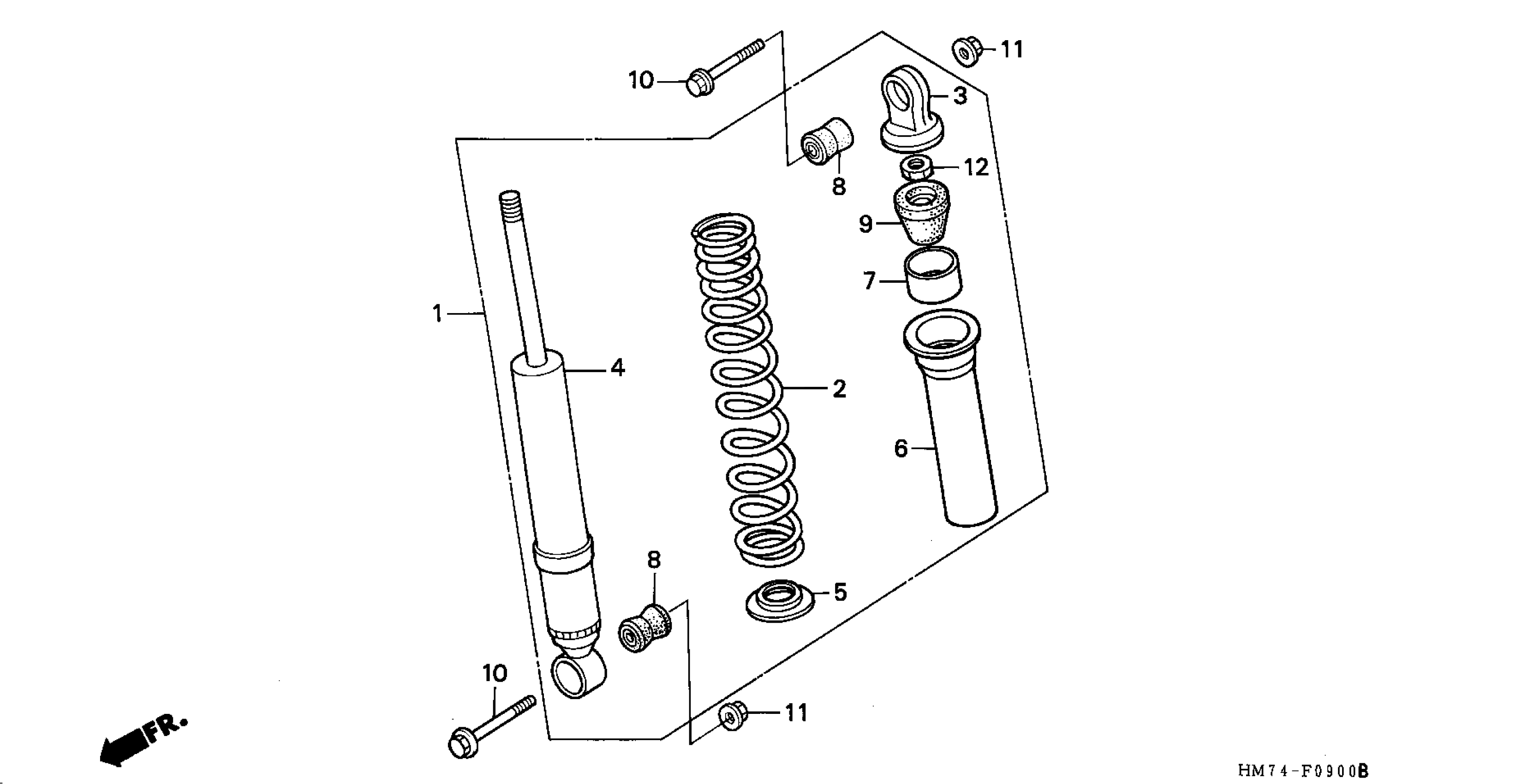

Honda TRX400FWA (00) FOURTRAX FOREMAN, USA, VIN# 478TE200-Y4100001 FRONT SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., FR.

51400-HM7-003

Unavailable

SPRING, FR. ABSORBER

51401-HM7-003

Unavailable

JOINT (UPPER) (SOURCE: VINTAGE PARTS INC.)

51403-HM7-003

Unavailable

SHOCK ABSORBER, FR. (NOT AVAILABLE)

51410-HM7-003

Unavailable

SEAT, SPRING

51447-HM7-003

Unavailable

GUIDE, SPRING (NOT AVAILABLE)

51458-HM7-003

Unavailable

SEAT C, SPRING

52459-HM7-003

$10.38

BUSH, DAMPER

52489-HF7-003

$6.51

RUBBER, STOPPER

52517-HC5-003

$12.99

BOLT, FLANGE (10X40)

90163-SL0-000

$6.48

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

NUT, HEX. (10MM)

94002-10000-0S

$3.67
