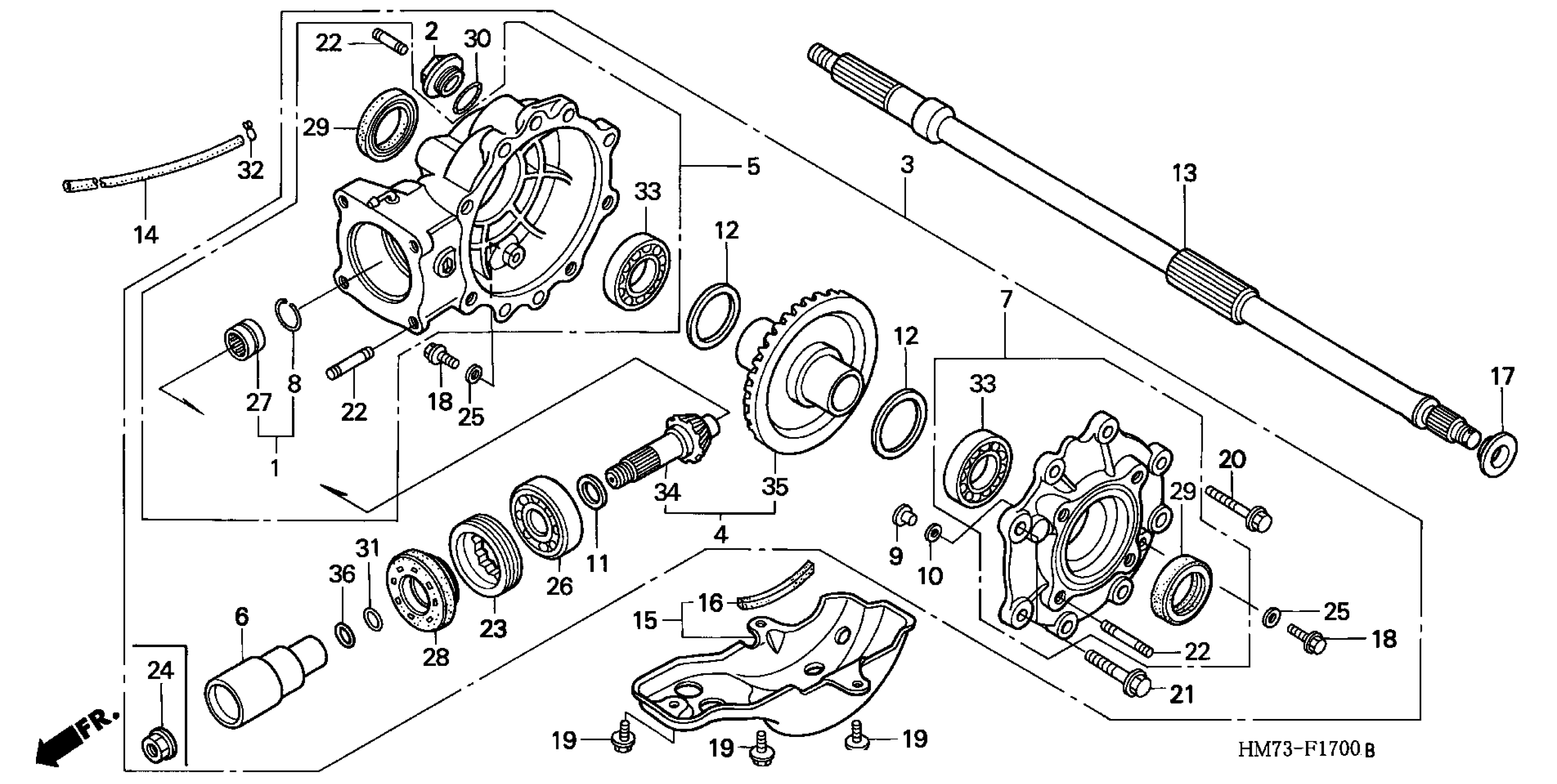

Honda TRX400FWA (00) FOURTRAX FOREMAN, USA, VIN# 478TE200-Y4100001 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HM7-610

$13.53

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., RR. FINAL

41300-HN0-A00

$388.85

4

GEAR SET, FINAL

41310-HM7-000

Unavailable

5

CASE SUB-ASSY., FINAL GEAR (SOURCE: VINTAGE PARTS INC.)

41311-HM7-610

Unavailable

6

JOINT, PINION

41315-HM7-000

Unavailable

7

COVER SUB-ASSY., RR. FINAL GEAR This part replaces 41320-HM7-610.

41320-HN0-A00

$93.09

7

COVER SUB-ASSY., RR. FINAL GEAR

41320-HN0-A00

$93.09

8

RING, STOPPER

41405-HA7-670

$2.83

9

PIN, RING GEAR STOPPER

41436-MB0-310

$29.49

10

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.22

10

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$4.90

11

SHIM L, PINION GEAR (1.64)

41447-HM7-000

$8.59

11

SHIM M, PINION GEAR (1.70)

41448-HM7-000

$9.72

11

SHIM N, PINION GEAR (1.76)

41449-HM7-000

$9.22

11

SHIM A, PINION GEAR (1.82)

41451-HA0-000

$7.43

11

SHIM B, PINION GEAR (1.88)

41452-HA0-000

Unavailable

11

SHIM C, PINION GEAR (1.94)

41453-HA0-000

Unavailable

11

SHIM D, PINION GEAR (2.00)

41454-HA0-000

$7.43

11

SHIM E, PINION GEAR (2.06)

41455-HA0-000

Unavailable

11

SHIM F, PINION GEAR (2.12)

41456-HA0-000

Unavailable

11

SHIM G, PINION GEAR (2.18)

41457-HA0-000

Unavailable

12

SPACER A, RING GEAR (1.82)

41540-HA0-000

$10.87

12

SPACER B, RING GEAR (1.88)

41541-HA0-000

$11.60

12

SPACER C, RING GEAR (1.94)

41542-HA0-000

$11.60

12

SPACER D, RING GEAR (2.00)

41543-HA0-000

$10.87

12

SPACER E, RING GEAR (2.06)

41544-HA0-000

$11.60

12

SPACER F, RING GEAR (2.12)

41545-HA0-000

$11.60

12

SPACER G, RING GEAR (2.18)

41546-HA0-000

$10.87

12

SPACER H, RING GEAR (2.24)

41547-HA0-000

$10.87

12

SPACER I, RING GEAR (2.30)

41548-HA0-000

$10.87

13

SHAFT, RR. AXLE This part replaces 42311-HM7-A00.

42311-HM7-A02

$151.98

14

TUBE, BREATHER (3.5X1600)

43133-HM7-000

$5.86

15

PLATE, SKID

50355-HM7-610

$159.84

16

RUBBER, STOPPER

50356-HM7-300

$9.48

17

STOPPER, L. BEARING

52112-HA0-000

$15.40

18

BOLT, SEALING (8MM)

90109-371-000

$2.50

19

BOLT, FLANGE (8X10)

90116-965-000

Unavailable

20

BOLT, FLANGE (8X27)

90133-MB0-000

$7.73

21

BOLT, FLANGE (10X35)

90134-HA0-000

$7.53

22

BOLT, STUD (10X22)

90135-HA7-770

$7.94

23

NUT, LOCK (64MM)

90242-MB0-000

Unavailable

24

NUT, HEX. (16MM)

90381-HA0-000

$7.53

25

GASKET (8MM)

90471-580-000

$2.80

26

BEARING, BALL (22X62X15)

91003-P24-J01

$55.46

28

OIL SEAL (34X70X11)

91251-HM7-003

$16.53

29

OIL SEAL (35X49X6) (NOK)

91252-HA0-004

$12.31

30

O-RING (30.8MM)

91302-001-020

$3.46

31

O-RING (21.5X3.1)

91352-HA2-003

Unavailable

32

CLIP, TUBE (C6.5)

95002-35000

$0.69

33

BEARING, RADIAL BALL (6007)

96100-60073-00

$23.01
