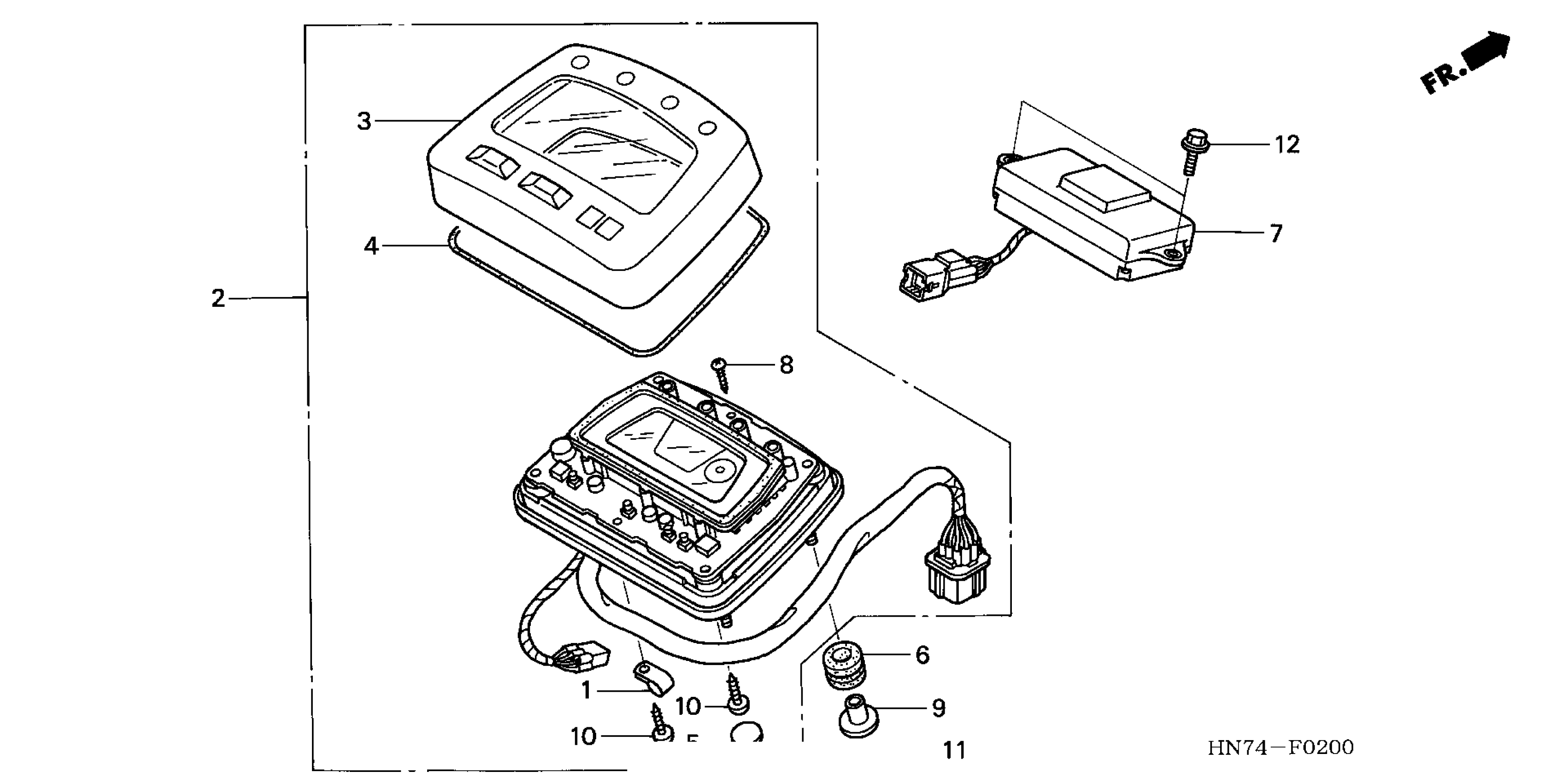

Honda TRX400FGAA (07) FOURTRAX RANCHER AT GPSCAPE, USA, VIN# 1HFTE294-74300001 METER Diagram

#

Description
Price

1

CLAMP

37121-ML7-671

$2.77

2

METER ASSY., GPS NAVIGATION

37200-HN7-731

Unavailable

3

CASE ASSY. (UPPER)

37201-HN7-731

$37.20

4

GASKET

37211-HN0-A01

$4.02

5

CAP

37212-HN0-A01

$3.42

6

RUBBER, MOUNTING

37215-HM5-670

$1.94

7

RECEIVER ASSY., GPS

37500-HN7-731

$258.77

8

SCREW, TAPPING (3X12)

90105-MT7-003

$0.32

9

COLLAR, RR. FENDER

90502-GG2-000

$5.35

10

SCREW, TAPPING (4X16)

93903-24420

$0.83

11

NUT, FLANGE (6MM)

94050-06070

$1.32

12

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
