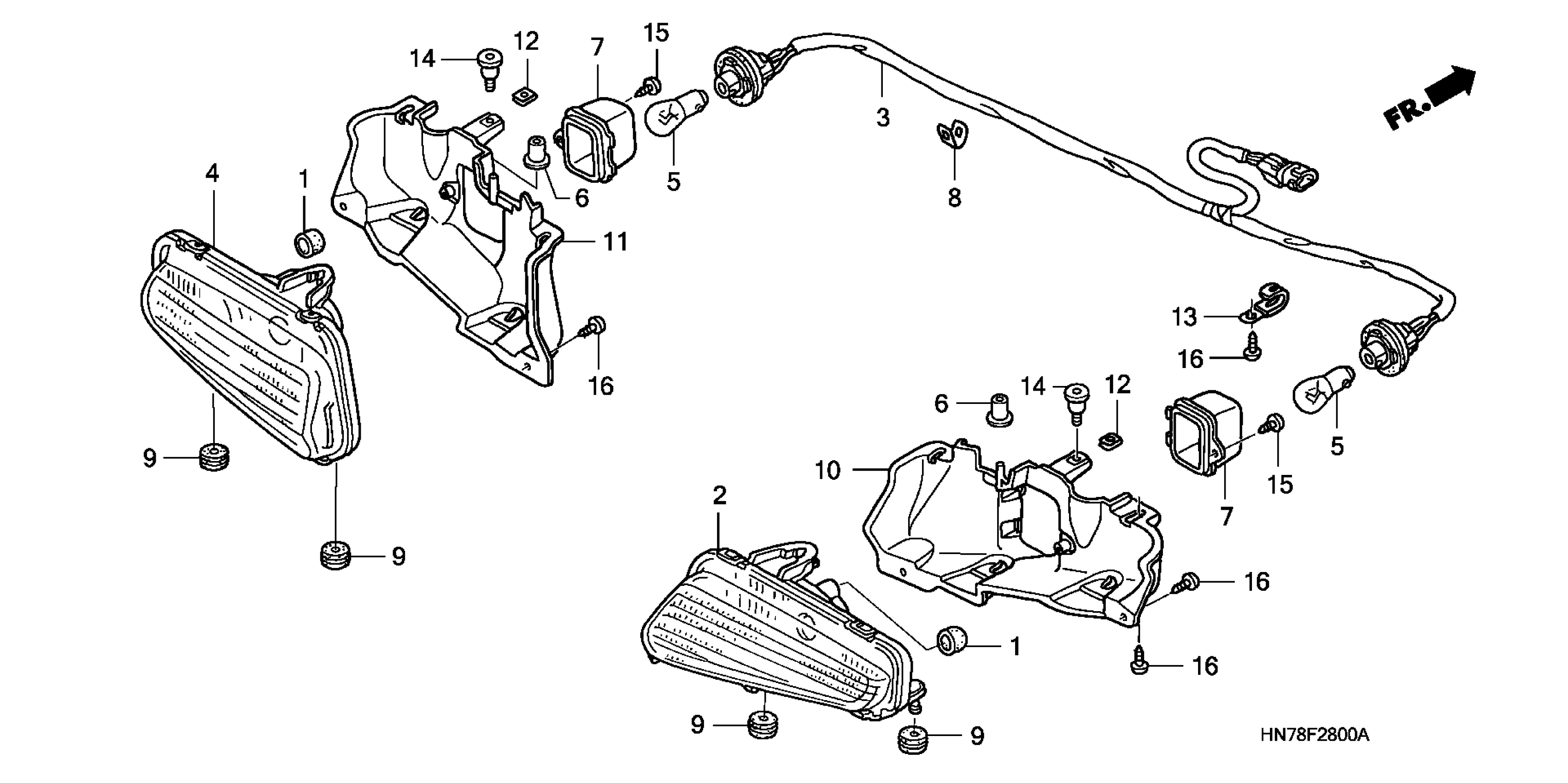

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 TAILLIGHT Diagram

PIPE, CP

33113-MBW-D21

$2.64

LENS, R. TAILLIGHT

33710-HN8-003

$50.91

SOCKET, TAILLIGHT

33720-HN7-000

$68.74

LENS, L. TAILLIGHT

33760-HN8-003

$50.91

BULB, TAILLIGHT (12V 21/5W) (STANLEY)

34906-447-711

$9.38

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

CAP, HEADLIGHT TAIL

66303-HM7-000

$3.37

CLAMP, WIRE HARNESS

80106-HB7-000

$4.23

RUBBER, TAILLIGHT MOUNTING

80219-HC4-000

$3.12

COVER, R. TAILLIGHT

80230-HN7-000

$8.70

COVER, L. TAILLIGHT

80231-HN7-000

$8.70

NUT, FENDER SETTING

84601-HC4-000

$4.28

CLIP, TUBE

90010-GE0-710

$2.08

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

SCREW, TAPPING (4X16)

93903-24420

$1.49

SCREW, TAPPING (5X12)

93903-25220

$1.49
