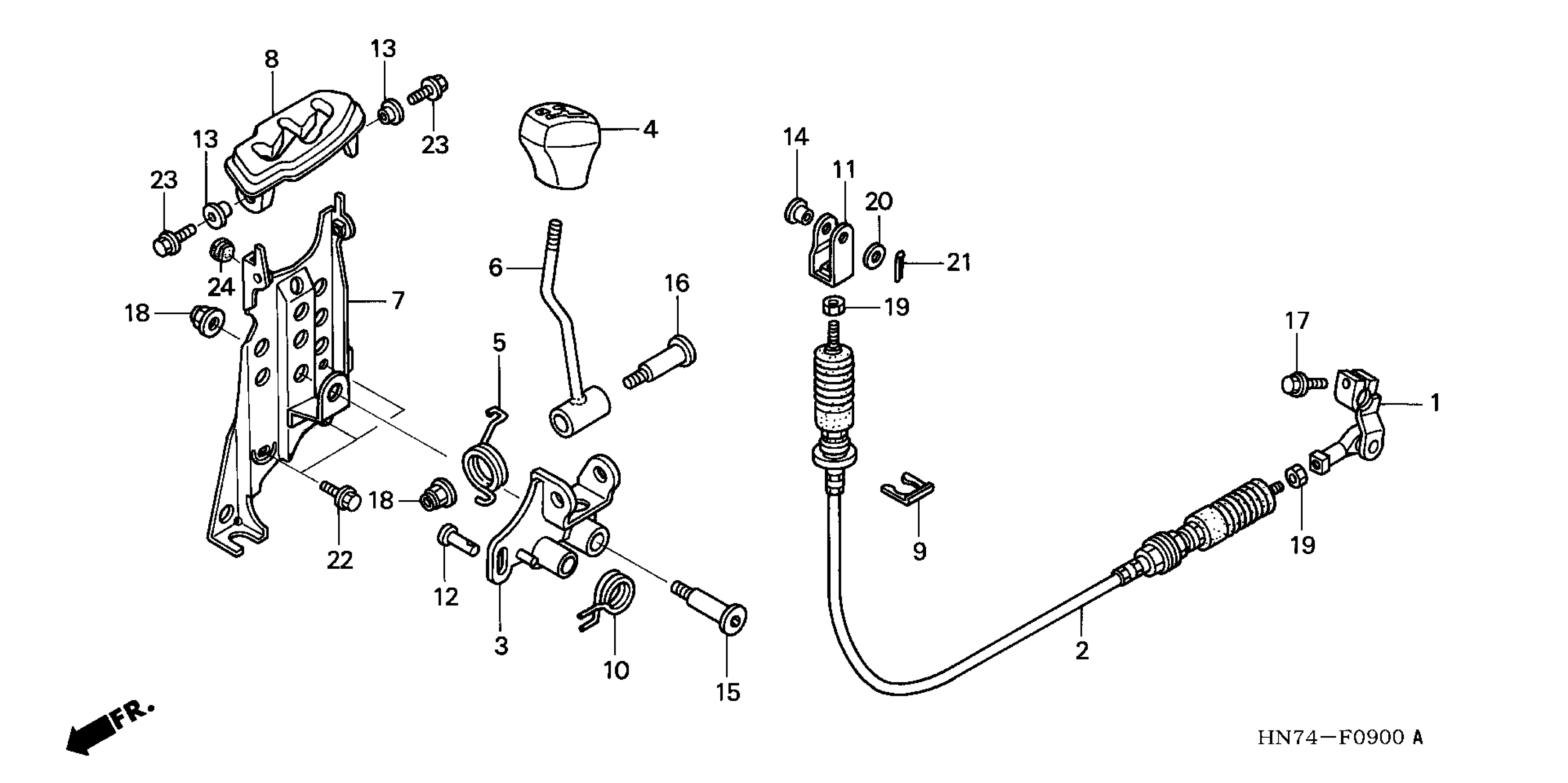

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 SELECT LEVER Diagram

#

Description
Price

1

ARM, SHIFT CHANGE

54313-HN7-000

Unavailable

2

WIRE, CONTROL

54315-HN7-003

$40.28

3

PLATE, SHIFT CHANGE

54320-HN7-000

Unavailable

4

GRIP, CHANGE LEVER

54321-HN7-000

$19.88

5

SPRING, SELECT LEVER

54324-HN7-000

$4.24

6

LEVER, SELECT

54325-HN7-000

Unavailable

7

HOLDER, SHIFT LEVER

54330-HN7-000

$11.54

8

GATE, SHIFT

54331-HN7-000

$41.74

9

CLAMP, SHIFT CABLE

54332-HN7-000

Unavailable

10

SPRING, SHIFT RETURN

54335-HN7-000

$3.21

11

PLATE, SLIDE

54336-HN7-000

Unavailable

12

SHAFT, SLIDE

54337-HN7-000

$2.68

13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.28

13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.28

14

COLLAR, FAIRING SETTING

64209-MN5-000

$2.83

15

BOLT, CHANGE PIVOT

90115-KAF-000

$17.60

16

BOLT, CHANGE PIVOT

90115-MAL-600

$13.61

17

BOLT, FLANGE (6X20)

90118-968-000

$4.04

18

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

18

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

19

NUT, HEX. (6MM)

94002-06000-0S

$1.21

20

WASHER, PLAIN (6MM)

94101-06800

Unavailable

21

PIN, SPLIT (2.0)

94201-20151

$0.49

22

BOLT, FLANGE (6X10)

95701-06010-08

$1.49

23

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

24

PLUG, HOLE

50318-041-600

$2.04
