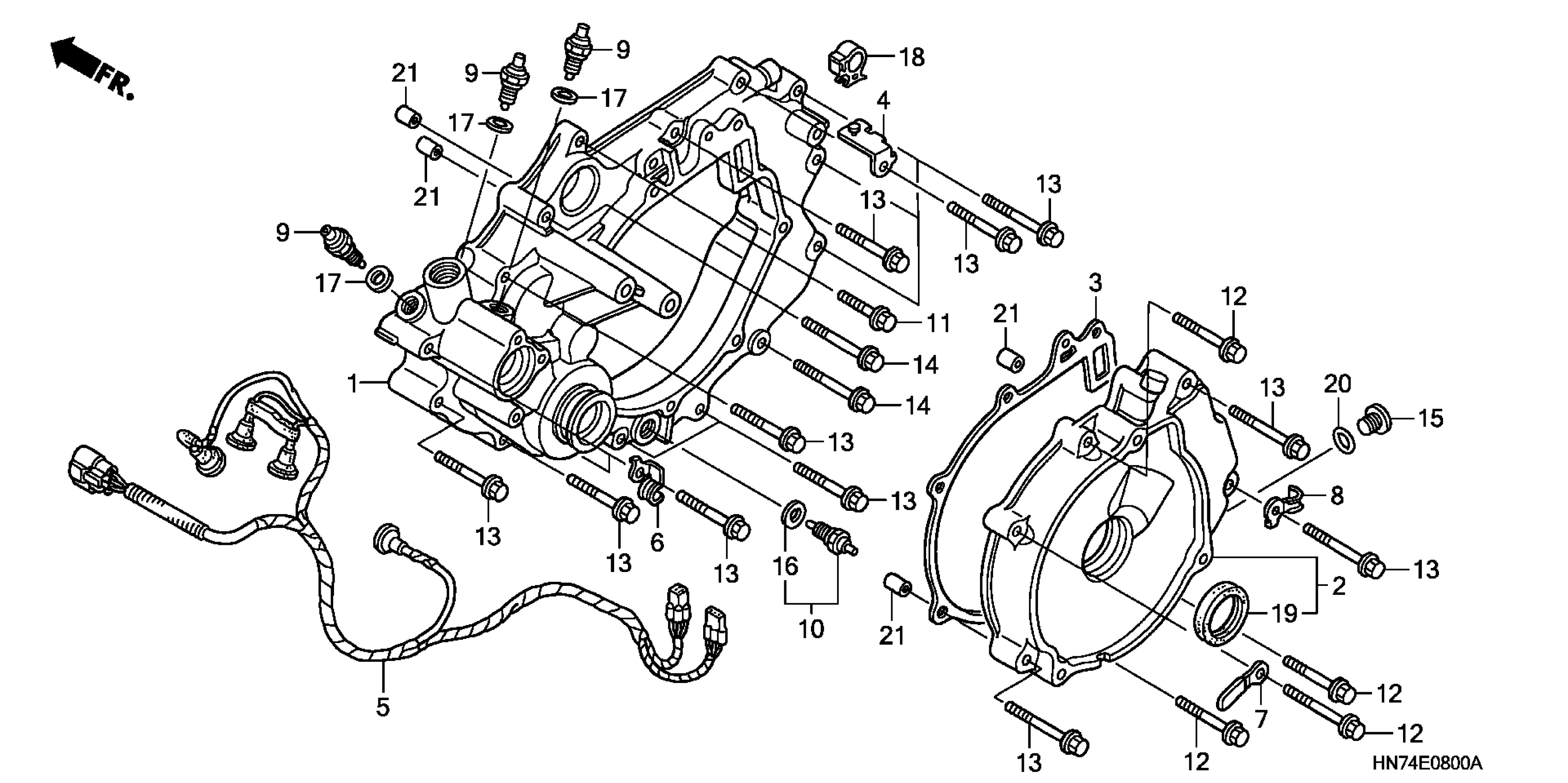

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 REAR CRANKCASE COVER Diagram

COVER, RR.

11340-HN7-900

Unavailable

COVER, ALTERNATOR

11350-HN7-900

$131.89

GASKET, ALTERNATOR COVER

11396-HN7-000

$11.53

PLATE, CABLE

16230-HN7-000

Unavailable

SUB-HARNESS, ENGINE

32103-HN7-000

$111.31

CLIP, HARNESS

32901-HN7-000

Unavailable

CLIP, SUB-WIRE

32901-MA1-000

$4.95

CLIP, ALTERNATOR WIRE

32921-HN5-670

$4.26

SWITCH ASSY., NEUTRAL

35600-HN7-003

$19.61

SENSOR ASSY., THERMOSTAT OIL (TOYO) This part replaces 37750-HN5-M41.

37750-HC4-751

$62.59

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

CAP (14MM)

90084-KY2-000

$15.97

WASHER, SEALING This part replaces 37751-HN5-M40.

90401-HA8-000

$3.81

WASHER, OIL BOLT

90545-300-000

$3.99

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

OIL SEAL (24X34X7)

91201-HN5-671

$6.81

O-RING (13.8X2.5)

91303-377-000

$3.42

PIN, DOWEL (8X14)

94301-08140

$2.25
