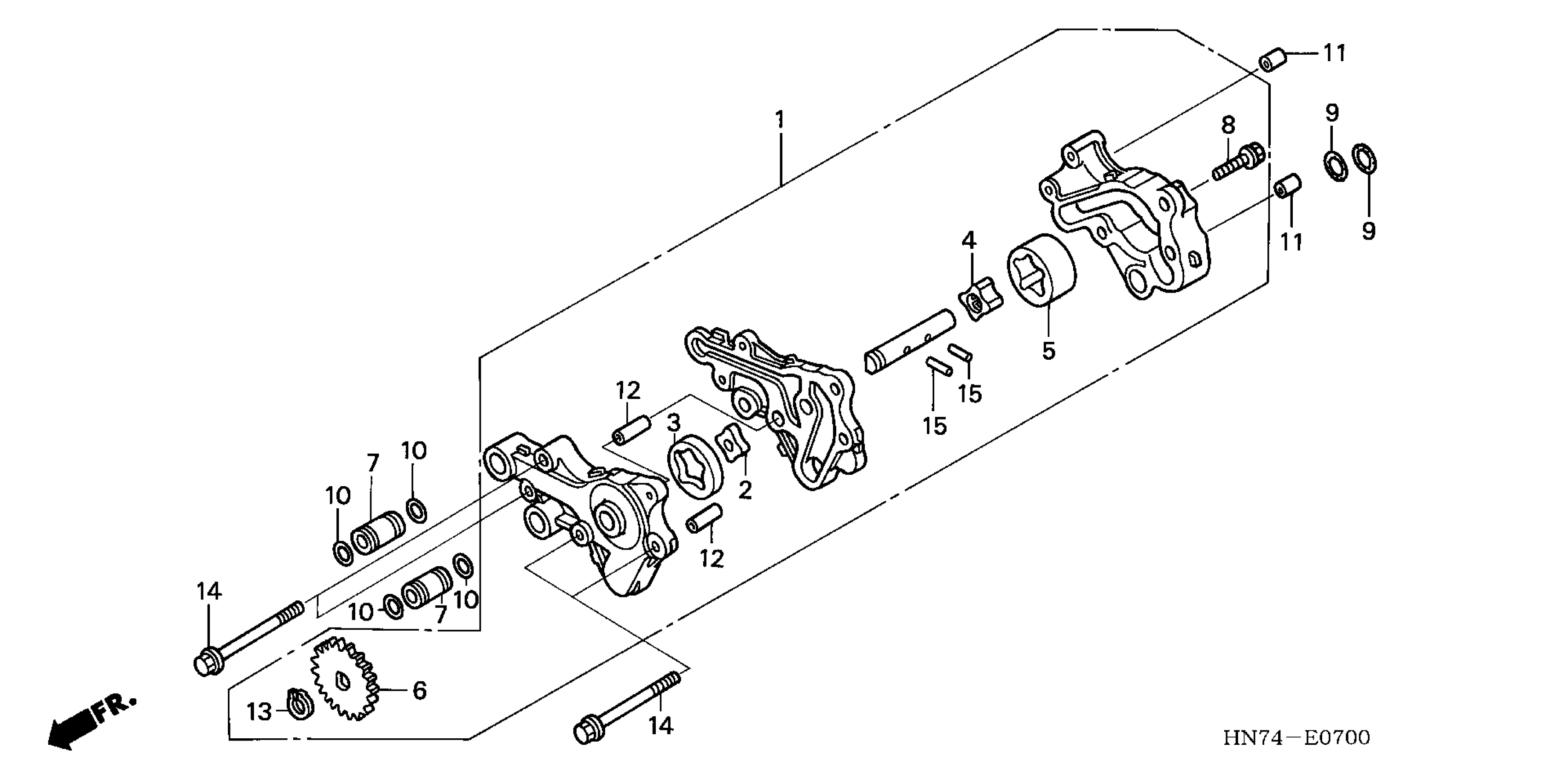

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-HN7-000

$81.16

ROTOR B, OIL PUMP (INNER)

15126-HN7-003

$13.78

ROTOR B, OIL PUMP (OUTER)

15127-HN7-003

$13.43

ROTOR C, OIL PUMP (INNER)

15128-HN7-003

$12.84

ROTOR C, OIL PUMP (OUTER)

15129-HN7-003

$12.84

GEAR, OIL PUMP DRIVEN (20T)

15140-HN7-000

$43.36

JOINT, SPECIAL

15235-HN7-900

Unavailable

BOLT, FLANGE (5X25)

90014-HN5-M00

$0.20

O-RING (18X1.4)

91302-HN7-003

Unavailable

O-RING (11X1.9) (NOK) This part replaces 91301-671-671.

91303-HA0-004

$1.94

O-RING (11X1.9) (ARAI)

91303-HA0-000

Unavailable

O-RING (11X1.9) (NOK) This part replaces 91303-HA0-003.

91303-HA0-004

$1.94

O-RING (11X1.9) (NOK)

91303-HA0-004

$1.94

PIN, DOWEL (8X10)

94301-08100

$2.04

PIN, DOWEL (8X20)

94301-08200

$2.04

CIRCLIP (OUTER) (11MM)

94511-11000

$0.71

BOLT, FLANGE (6X60)

95701-06060-08

$1.97

ROLLER (4X15.8)

96220-40158

$0.41
