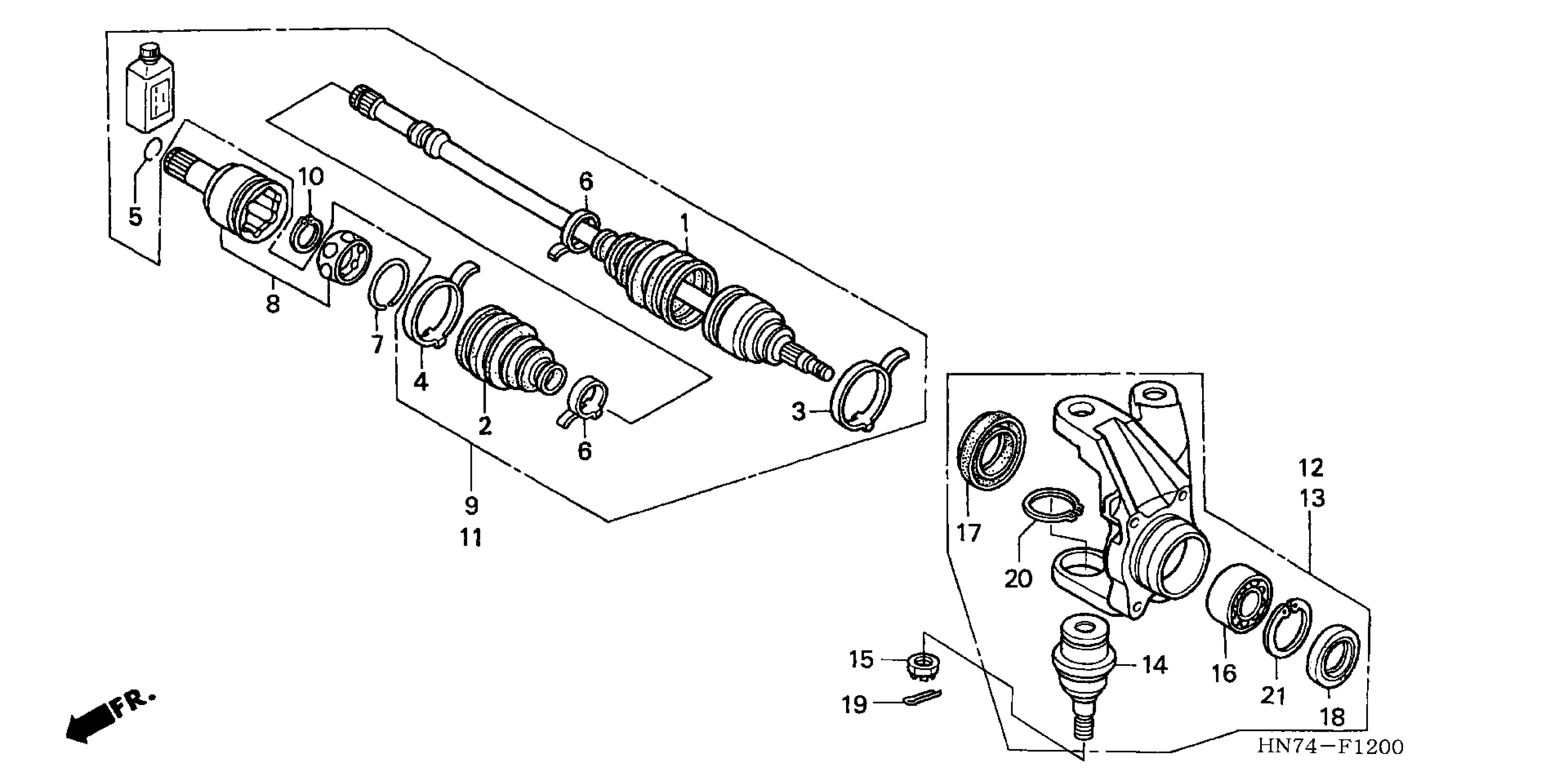

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 KNUCKLE Diagram

Description

Price

BOOT, OUTBOARD

42202-HC5-003

$30.40

BOOT, INBOARD

42203-HM7-003

$30.20

BAND A

42204-HC5-003

$11.53

BAND B

42205-HM7-003

$7.11

RING, SNAP

42206-HA7-671

$1.49

BAND C

42206-HC5-003

$7.68

RING, SNAP

42206-HM7-003

$1.49

JOINT, INBOARD

42220-HM7-003

$186.46

SHAFT SET, R. FR. DRIVE

44250-HN7-003

$237.82

CIRCLIP

44338-SD5-013

Unavailable

SHAFT SET, L. FR. DRIVE

44350-HN7-003

$236.59

KNUCKLE ASSY., R.

51200-HN7-000

$462.67

KNUCKLE ASSY., L.

51250-HN7-000

$250.48

JOINT A, ARM BALL This part replaces 51355-HM5-A81.

51355-HP5-601

$19.41

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

BEARING, ANGULAR (30X50X20) (TOYO)

91051-HC5-003

$70.28

DUST SEAL (40X58X9)

91209-HN5-671

$9.61

DUST SEAL (38X50X7)

91256-HC5-003

$10.34

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP (OUTER) (32MM)

94514-32000

$1.49

CIRCLIP (INNER) (50MM)

94520-50000

$2.44
