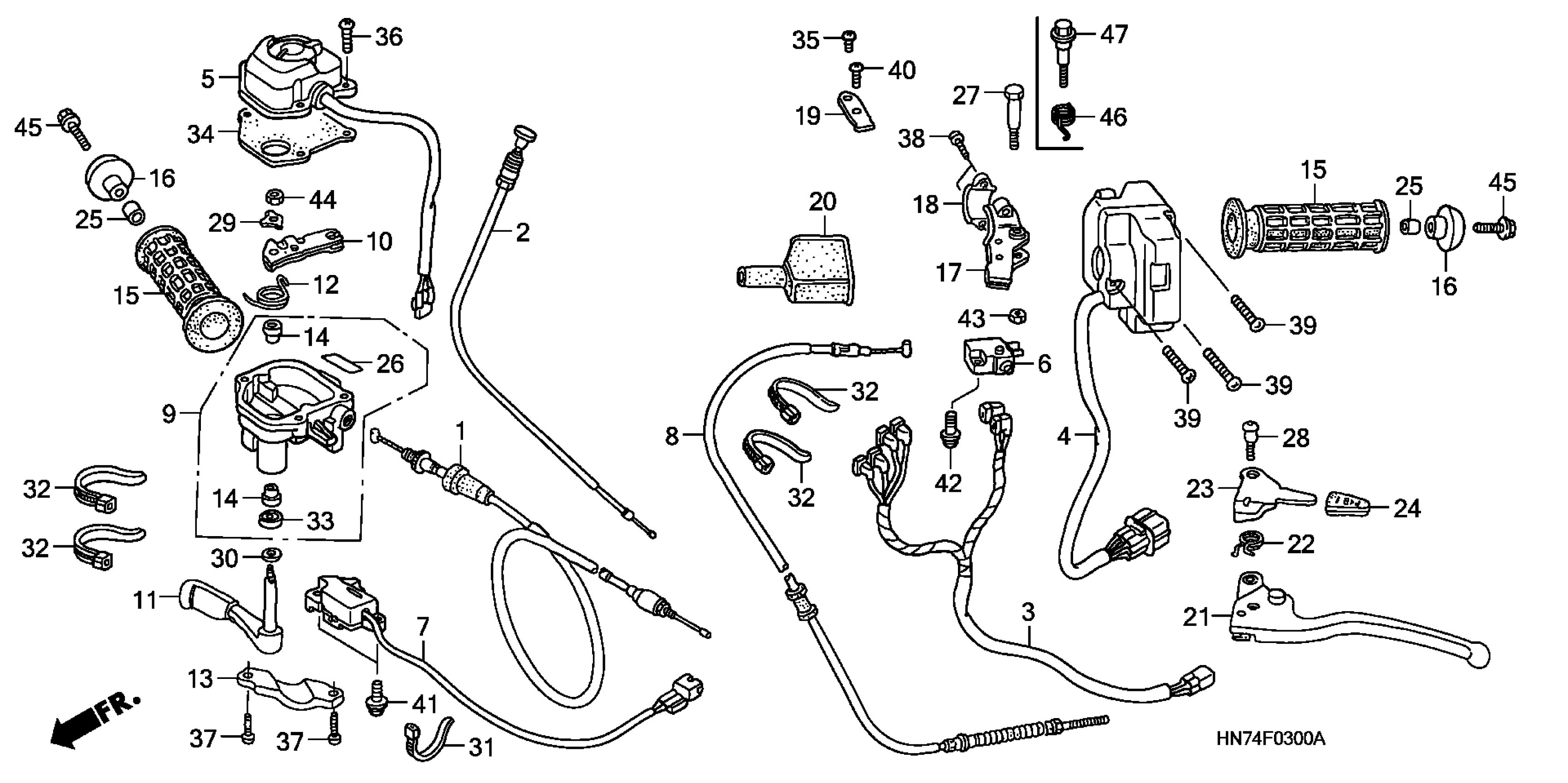

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HN5-670

$50.13

2

CABLE, CHOKE

17950-HN7-010

$16.15

3

SUB-HARNESS, FR. STOP SWITCH

32105-HN7-000

Unavailable

4

SWITCH, HANDLE This part replaces 35200-HN7-003.

35200-HN7-013

$147.75

5

SWITCH ASSY., MODE SELECT

35300-HN8-003

$71.06

6

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

7

SWITCH ASSY., SELECT (2WD/4WD)

35400-HN7-003

Unavailable

8

CABLE, HAND BRAKE

43460-HN7-000

$37.70

9

CASE ASSY., THROTTLE LEVER

53143-HN0-305

$47.56

10

ARM, THROTTLE

53144-HA0-010

$7.72

11

LEVER, THROTTLE

53145-HA0-770

$24.05

12

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

13

HOLDER, THROTTLE CASE

53147-HN0-670

$14.30

14

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

15

GRIP, HANDLE

53165-958-010

$13.38

16

GUARD, HANDLE END

53167-958-680

$6.40

17

BRACKET, BRAKE LEVER

53172-HN8-000

$28.76

18

HOLDER, LEVER BRACKET

53173-376-000

$10.95

19

STAY, PARKING BRAKE STOPPER

53174-HN8-000

$5.49

20

COVER, L. HANDLE LEVER

53177-HN8-000

$3.41

21

LEVER, L. HANDLEBAR

53178-HN8-010

$19.86

22

SPRING, PARKING BRAKE LEVER

53191-HN8-000

$2.56

23

LEVER, PARKING BRAKE LOCK

53192-HN8-000

$7.63

24

CAP, PARKING LEVER

53193-HA0-770

$6.16

25

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

26

MARK, SELECT (2WD/4WD)

87516-HN0-670

$15.34

28

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

29

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

30

WASHER (9X20)

90504-HA0-000

$2.28

31

BAND, WIRE

90651-KV6-003

$2.92

32

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

33

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

33

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

34

GASKET, THROTTLE CASE

91532-HN8-000

$3.15

35

SCREW, PAN (4X8)

93500-04008-0G

$1.49

36

SCREW, PAN (4X16)

93500-04016-0G

$1.49

37

SCREW, PAN (5X14)

93500-05014-0G

$3.67

38

SCREW, PAN (5X18)

93500-05018-0G

$1.49

39

SCREW, PAN (5X28)

93500-05028-0G

$1.49

40

SCREW, PAN (6X16)

93500-06016-0G

$1.49

41

SCREW-WASHER (4X12)

93891-04012-07

$1.49

42

SCREW-WASHER (4X16)

93893-04016-07

$1.49

43

NUT, HEX. (6MM)

94001-06070-0S

$1.49

44

NUT, HEX. (6MM)

94002-06000-0S

$1.49

45

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

46

SPRING, RETURN LEVER

53193-HN8-000

$2.92

47

BOLT, HANDLE LEVER PIVOT

90114-HN8-000

$3.80
