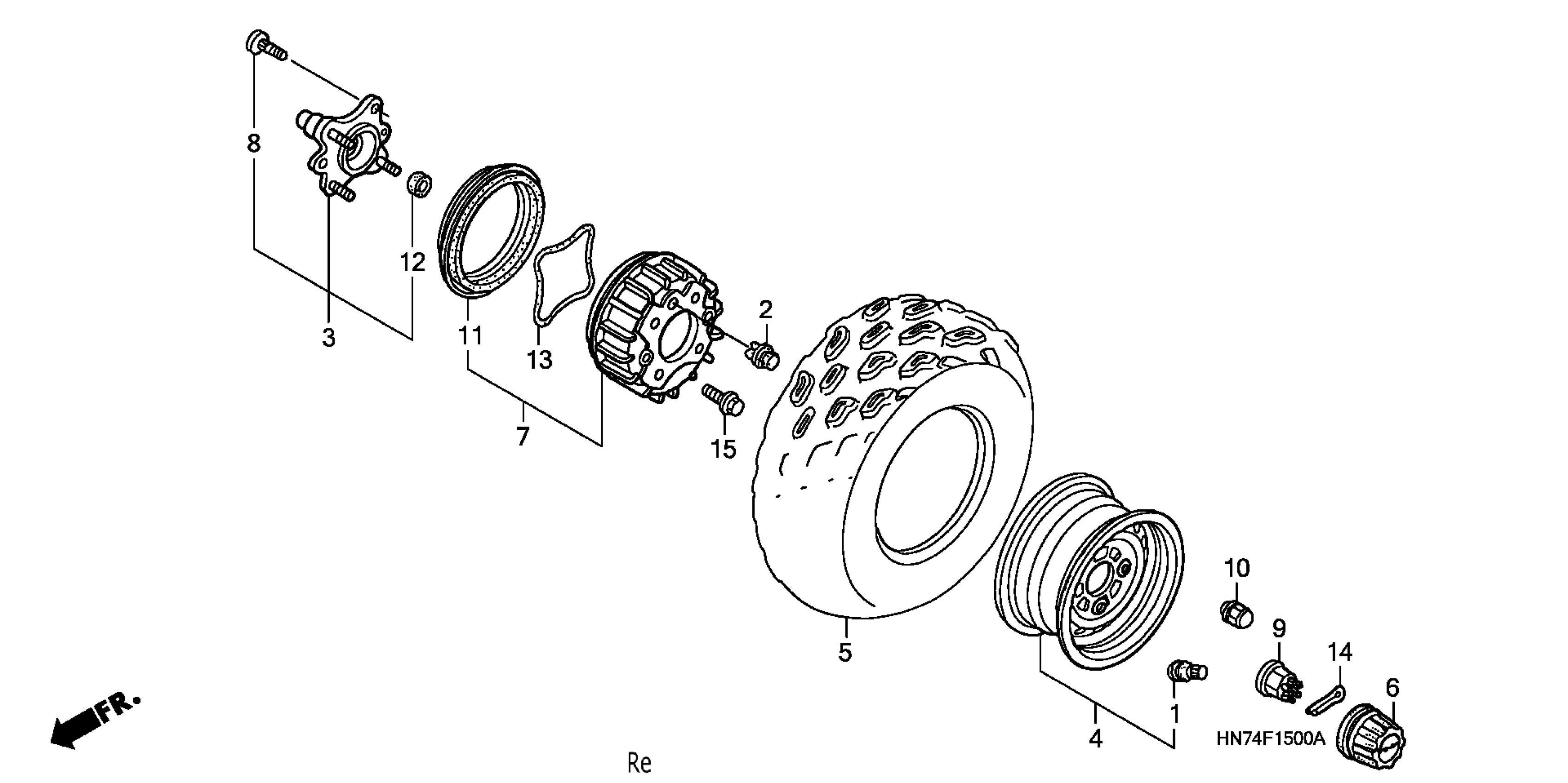

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 FRONT WHEEL Diagram

VALVE, RIM (TR412)

42753-HF1-670

$4.85

PLUG, ADJUSTING HOLE

44602-HM5-A10

$3.71

HUB, FR. WHEEL

44610-HM5-A80

$239.75

WHEEL SUB-ASSY., FR. (TYPE1)

44650-HN7-000ZA

$56.41

TIRE, FR. (24X8-12) (BS)

44711-HN7-003

Unavailable

CAP, WHEEL CENTER

44732-HC4-010

$20.30

DRUM ASSY., FR. BRAKE

45700-HN5-670

$447.94

BOLT, WHEEL (10X38)

90104-HN0-A60

$6.78

NUT, CASTLE (16MM)

90305-HM5-A80

$4.64

NUT, WHEEL

90314-HM5-A10

$3.06

DUST SEAL, FR. BRAKE

91261-HN5-671

$33.79

DUST SEAL (19X22.5X10.5) (ARAI)

91263-HA7-771

$5.99

O-RING, BRAKE DRUM

91356-HA7-651

$10.51

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94

BOLT, FLANGE (6X10)

96001-06010-00

$1.48
