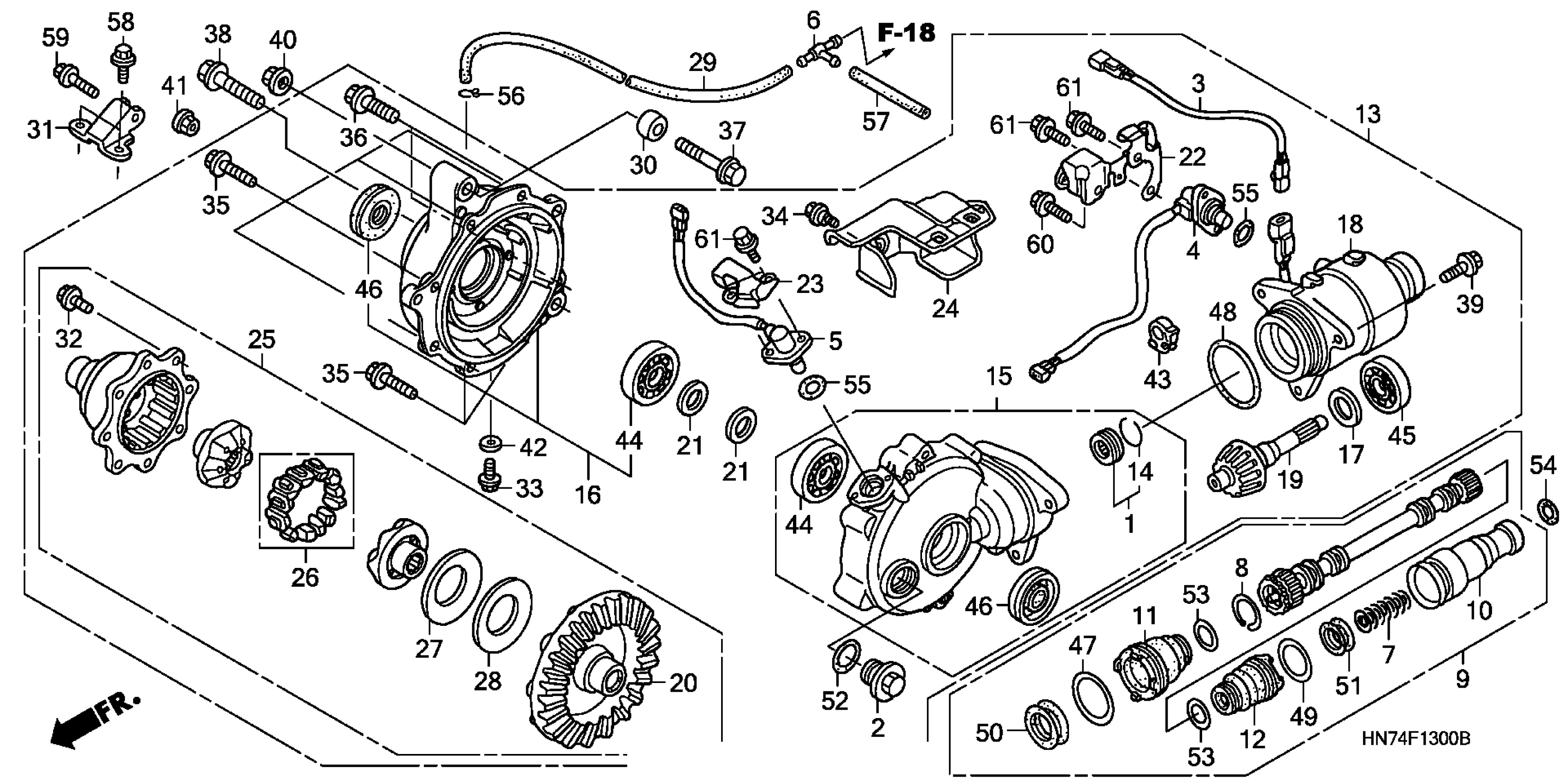

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 FRONT FINAL GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HM7-610

$15.13

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

SUB-HARNESS, FR. FINAL CLUTCH

32101-HN7-000

Unavailable

4

SENSOR ASSY., SPEED

37700-HN7-003

Unavailable

5

SENSOR ASSY., SPEED

37710-HN7-003

Unavailable

6

JOINT, TUBE This part replaces 38581-671-003.

38581-679-003

$14.74

6

JOINT, TUBE

38581-679-003

$14.74

7

SPRING, SHAFT

40215-HM7-000

$2.11

8

RING, STOPPER

40221-ME4-000

$4.53

9

SHAFT ASSY., FR. PROPELLER

40400-HN7-000

$176.20

10

JOINT, FR. PROPELLER SHAFT

40402-HN5-670

$60.55

11

BOOT A, PROPELLER

40410-HN8-000

$30.39

12

BOOT B, PROPELLER

40420-HM7-A00

$13.36

13

GEAR ASSY., FR. FINAL

41400-HN7-000

$1,984.48

14

RING, STOPPER

41405-HA7-670

$2.97

15

CASE SUB-ASSY., FR. GEAR

41411-HN7-000

$161.41

16

COVER SUB-ASSY., FR. GEAR This part replaces 41420-HN5-670.

41420-HN5-671

$132.54

17

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

17

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

17

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

17

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

17

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

17

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

17

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

17

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

17

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

17

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

17

SHIM K, PINION GEAR (2.24)

41458-HN0-670

Unavailable

17

SHIM L, PINION GEAR (2.30)

41459-HN0-670

Unavailable

17

SHIM M, PINION GEAR (2.36)

41461-HN0-670

Unavailable

17

SHIM N, PINION GEAR (2.42)

41462-HN0-670

$4.13

17

SHIM O, PINION GEAR (2.48)

41463-HN0-670

Unavailable

18

CLUTCH ASSY., FR. FINAL

41500-HN8-003

Unavailable

19

GEAR, FR. PINION (13T)

41520-HN7-000

$97.67

20

GEAR, FR. RING (49T)

41531-HN7-000

$533.89

21

SHIM A, DIFFERENTIAL CASE (0.50)

41631-HC5-000

$12.43

21

SHIM B, DIFFERENTIAL CASE (0.55)

41632-HC5-000

$11.90

21

SHIM C, DIFFERENTIAL CASE (0.60)

41633-HC5-000

$11.90

21

SHIM D, DIFFERENTIAL CASE (0.65)

41634-HC5-000

$11.90

21

SHIM E, DIFFERENTIAL CASE (0.70)

41635-HC5-000

$11.90

21

SHIM F, DIFFERENTIAL CASE (0.75)

41636-HC5-000

$11.90

21

SHIM G, DIFFERENTIAL CASE (0.80)

41637-HC5-000

$11.90

21

SHIM H, DIFFERENTIAL CASE (0.85)

41638-HC5-000

$11.90

21

SHIM I, DIFFERENTIAL CASE (0.90)

41639-HC5-000

$11.90

21

SHIM J, DIFFERENTIAL CASE (0.95)

41640-HC5-000

$11.90

21

SHIM K, DIFFERENTIAL CASE (1.00)

41641-HC5-000

$12.43

21

SHIM L, DIFFERENTIAL CASE (1.05)

41642-HC5-000

$11.90

21

SHIM M, DIFFERENTIAL CASE (1.10)

41643-HC5-000

$11.90

21

SHIM N, DIFFERENTIAL CASE (1.15)

41644-HC5-000

$12.43

21

SHIM O, DIFFERENTIAL CASE (1.20)

41645-HC5-000

$11.90

21

SHIM P, DIFFERENTIAL CASE (1.25)

41646-HC5-000

$11.90

21

SHIM Q, DIFFERENTIAL CASE (1.30)

41647-HC5-000

$11.90

21

SHIM R, DIFFERENTIAL CASE (1.35)

41648-HC5-000

$11.90

21

SHIM S, DIFFERENTIAL CASE (1.40)

41649-HC5-000

$11.90

21

SHIM T, DIFFERENTIAL CASE (1.45)

41650-HC5-000

$11.90

21

SHIM U, DIFFERENTIAL CASE (1.50)

41651-HC5-000

$11.90

21

SHIM V, DIFFERENTIAL CASE (1.55)

41652-HC5-000

$11.90

21

SHIM W, DIFFERENTIAL CASE (1.60)

41653-HC5-000

$11.90

22

STAY, CLUTCH COVER

41711-HN8-000

Unavailable

23

COVER, FR. SENSOR

41712-HN0-670

$8.38

24

COVER, FR. FINAL CLUTCH

41713-HN8-000

Unavailable

25

DIFFERENTIAL ASSY.

42400-HN7-003

Unavailable

26

FOLLOWER SET, CAM

42440-HN5-671

$59.10

27

SHIM A (1.3)

42451-HN7-003

$2.13

27

SHIM B (1.4)

42452-HN7-003

$2.13

27

SHIM C (1.5)

42453-HN7-003

$2.13

27

SHIM D (1.6)

42454-HN7-003

$2.13

27

SHIM E (1.7)

42455-HN7-003

$2.13

27

SHIM F (1.8)

42456-HN7-003

$2.13

27

SHIM G (1.9)

42457-HN7-003

$2.13

28

SPRING, DIFFERENTIAL SIDE CONED

42461-HN5-671

$15.92

29

TUBE, BREATHER (3.5X1050)

44121-HN5-670

$2.70

30

COLLAR, FR. ENGINE HANGER

50304-KS3-900

$9.13

31

BRACKET, FR. GEAR CASE

50350-HN5-670

$36.39

32

BOLT (8X17)

90101-HN8-000

$1.51

33

BOLT, SEALING (8MM)

90109-371-000

$2.58

34

BOLT, FORK COVER

90119-KCW-870

$2.51

35

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

36

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

37

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

38

BOLT, FLANGE (10X48)

90154-HC5-000

$8.80

39

BOLT, FLANGE (8X25)

90155-KY4-901

$1.92

40

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

41

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

41

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

42

GASKET (8MM)

90471-580-000

$2.92

43

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

44

BEARING, RADIAL BALL (29X52X12) (NTN)

91052-HC5-003

$36.26

44

BEARING, RADIAL BALL (29X52X12) (KOYO)

91052-HC5-004

$34.18

45

BEARING, RADIAL BALL (6006) (C5)

91062-HN8-013

$12.25

46

OIL SEAL (22X48X7) (ARAI)

91252-HC5-003

$9.38

47

BAND, BOOT (D32)

91301-HM7-A00

$6.34

48

O-RING (64X2.5)

91301-MS9-003

$2.48

49

BAND, BOOT (D27)

91302-HM7-A00

$7.93

50

SEAL A, RUBBER

91302-HM7-003

$7.90

51

SEAL, PROPELLER

91302-HN5-671

$3.72

52

O-RING (30.8MM)

91302-001-020

$3.75

53

BAND, BOOT (D20)

91303-HM7-A00

$7.93

54

O-RING (16X1.9)

91306-329-000

$2.92

55

O-RING (18.3X2.4) (NOK)

91321-PF4-004

$2.92

56

CLIP, TUBE (C6.5)

95002-35000

$1.49

57

BULK HOSE, VACUUM (3.5X1000) (3.5X200)

95005-35001-30M

$8.63

58

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

59

BOLT, FLANGE (8X30)

95801-08030-00

$1.57

60

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

61

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
