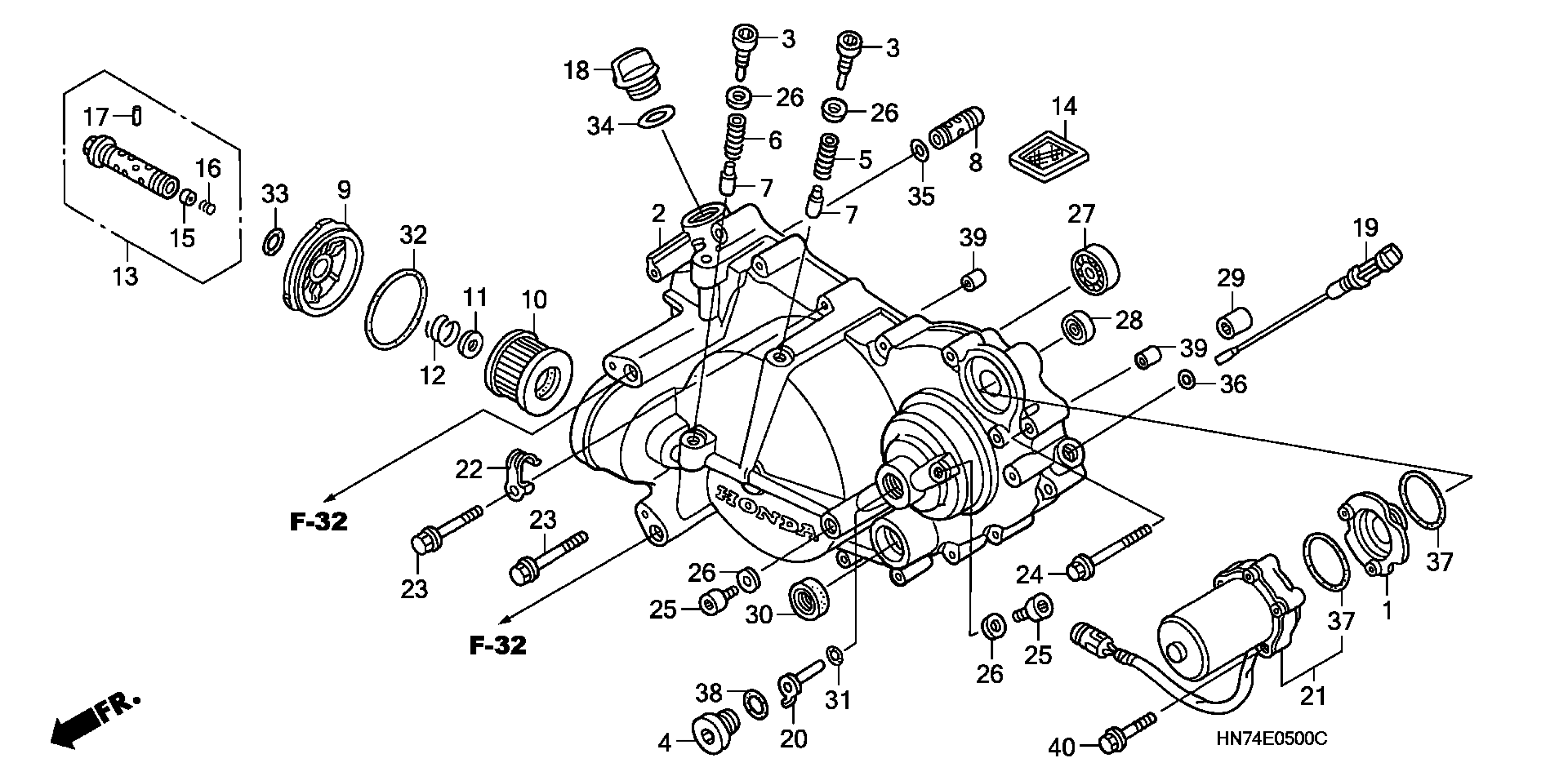

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 FRONT CRANKCASE COVER Diagram

#

Description
Price

1

SPACER, CONTROL

11210-HN7-000

Unavailable

2

COVER, FR. CRANKCASE

11330-HN7-900

Unavailable

3

BOLT, VALVE SETTING

11334-HN2-000

$5.29

4

BOLT, FEED PIPE SETTING

11335-HN2-000

$8.17

5

SPRING, ORIFICE VALVE (PINK)

11336-HN2-000

$1.84

6

SPRING, RELIEF VALVE (GREEN)

11336-HN7-000

Unavailable

7

VALVE, RELIEF

11337-HN2-000

$6.77

8

VALVE ASSY., RELIEF

15220-HN7-010

$25.32

9

COVER, OIL FILTER This part replaces 15411-HN8-000.

15411-HN8-010

$29.38

9

COVER, OIL FILTER

15411-HN8-010

$29.38

10

ELEMENT, OIL FILTER

15412-KEA-003

$8.40

11

SEAT, OIL FILTER SPRING

15414-300-000

$3.62

12

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.22

13

BOLT, OIL FILTER CENTER

15420-HN2-000

$40.71

14

SCREEN, OIL FILTER

15421-HN7-003

$7.81

15

VALVE, CHECK

15473-300-300

$3.87

16

SPRING, CHECK VALVE

15474-300-310

$4.45

17

PIN, SPRING SETTING

15477-300-300

$3.25

18

CAP, OIL TANK

15651-HN2-000

$5.42

19

DIPSTICK, OIL

15660-HN7-000

Unavailable

20

PIPE, FEED

26631-HN2-000

$11.30

21

MOTOR ASSY., CONTROL

31300-HN7-013

$240.84

22

CLIP, ALTERNATOR WIRE

32921-HN5-670

$3.88

23

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

23

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

24

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

25

BOLT, SPECIAL (10X13)

90101-VD6-003

$4.10

26

WASHER, OIL BOLT

90545-MC0-000

$3.15

26

WASHER, OIL BOLT

90545-300-000

$3.72

27

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$20.12

28

BEARING, RADIAL BALL (699ZZ)

91050-HN7-003

$7.10

29

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-KS6-004

$19.26

30

OIL SEAL (20X28X5) (KOYO)

91204-HC4-005

$6.58

31

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.80

32

O-RING (75X2.5)

91301-107-000

$4.54

33

O-RING (15X2.5)

91302-377-000

$4.94

34

O-RING (28X3)

91307-MK5-000

$3.41

35

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

35

O-RING (14.8X2.2)

91313-MG7-004

$3.42

36

O-RING (8.4X2.4)

91316-MJ8-003

$2.38

37

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.55

38

O-RING (22.1X2)

91305-679-003

$4.26

38

O-RING (22.1X2) This part replaces 91355-MB0-003.

91305-679-003

$4.26

39

PIN, DOWEL (8X14)

94301-08140

$2.04

40

BOLT, FLANGE (6X35) This part replaces 90004-PT2-000.

90003-PT2-000

Unavailable
