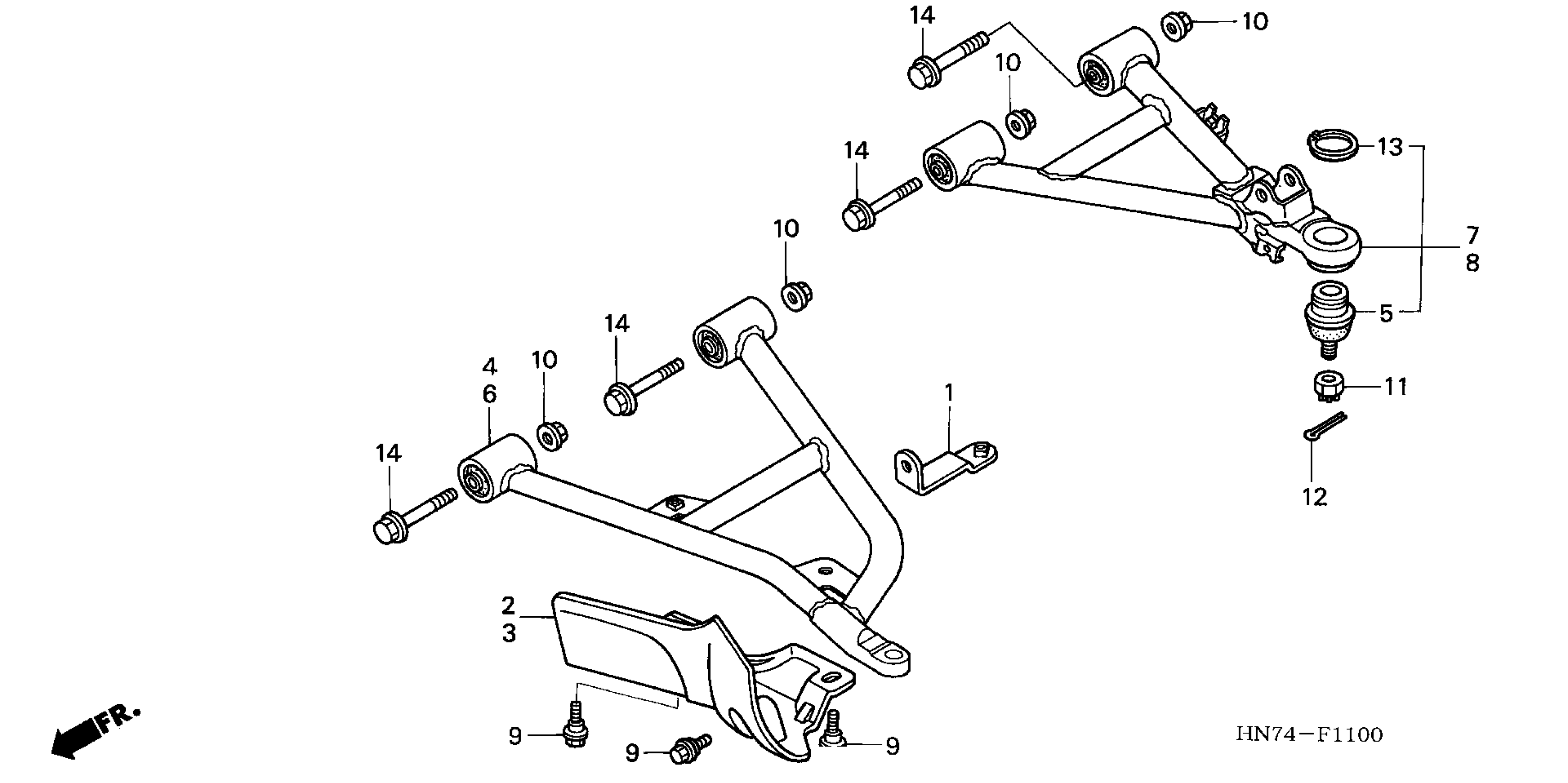

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 FRONT ARM Diagram

STAY, FR. GUARD

51311-HM7-000

$47.61

GUARD, R. FR.

51315-HN2-000

$11.83

GUARD, L. FR.

51316-HN2-000

$11.83

ARM ASSY., R. FR. (LOWER)

51350-HN7-000

Unavailable

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$17.90

JOINT A, ARM BALL

51375-HP5-601

$17.90

ARM ASSY., L. FR. (LOWER)

51360-HN7-000

$93.45

ARM ASSY., R. (UPPER)

51370-HN5-670

$112.07

ARM ASSY., L. (UPPER)

51380-HN5-670

$64.49

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

PIN, SPLIT (3.0X18)

94201-30180

$0.94

CIRCLIP (OUTER) (34MM)

94514-34000

$1.68

BOLT, FLANGE (10X62)

90151-HC5-000

$7.22

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22
