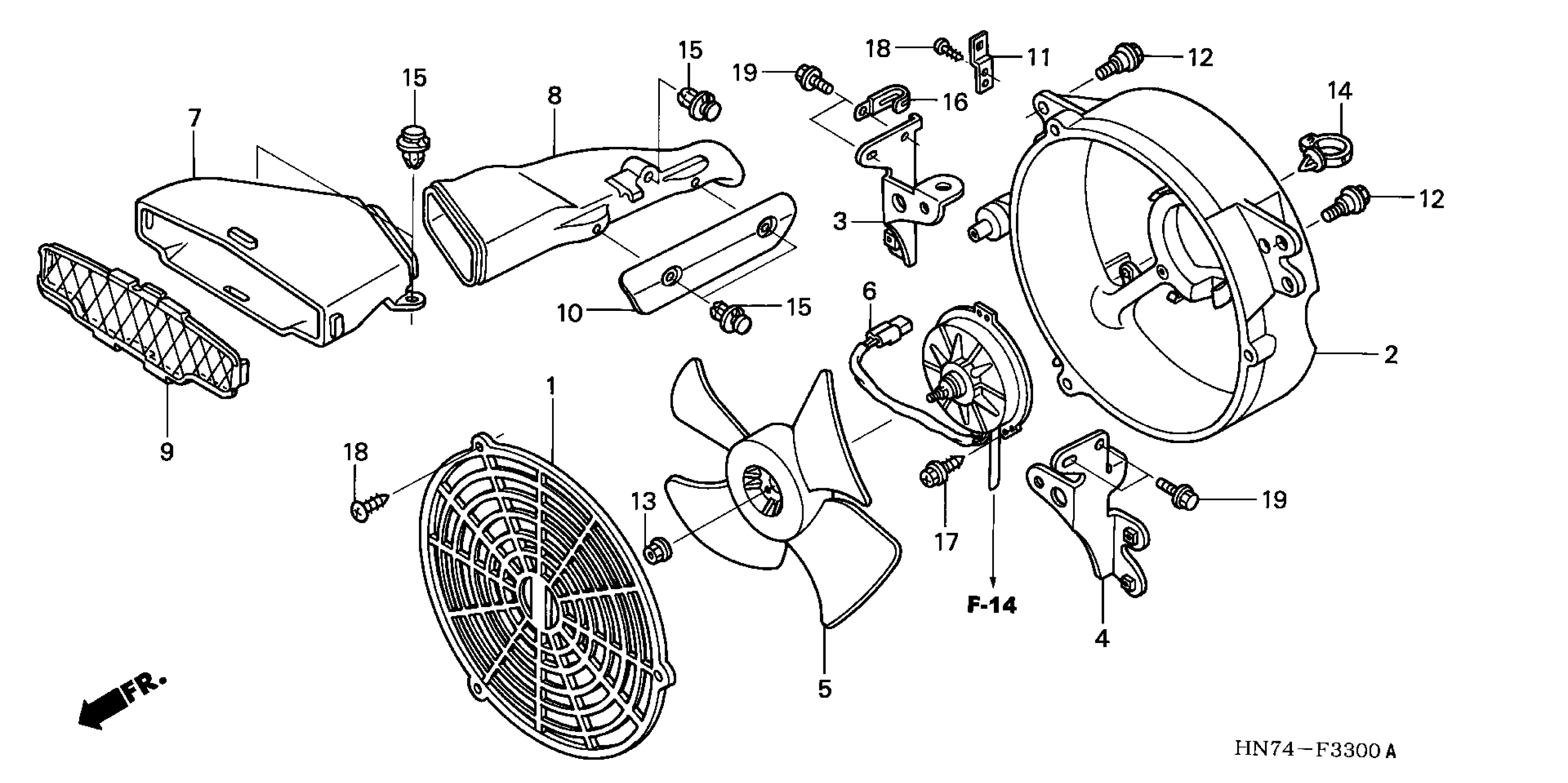

Honda TRX400FAA (07) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-74300001 COOLING FAN Diagram

COVER, SHROUD

19014-HM7-000

$17.39

SHROUD, COOLING FAN

19015-HN7-000

Unavailable

STAY, R. OIL COOLER

19018-HN7-000

$5.30

STAY, L. OIL COOLER

19019-HN7-000

$5.30

FAN, COOLING This part replaces 19020-HN7-000.

19020-HL3-A01

$19.91

MOTOR ASSY., FAN

19030-HN7-003

Unavailable

DUCT, FR. PLUG

19040-HN7-000

$17.70

DUCT, RR. PLUG

19050-HN7-000

Unavailable

GRILLE, DUCT

19060-HN7-000

$4.30

PROTECTOR, L. SIDE HEAT

19070-HN7-000

$36.90

STAY A, CONNECTOR

50327-HN5-670

$3.90

BOLT, FLANGE (6MM)

90111-197-890

$3.67

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

CLAMP, HARNESS

90652-HC4-003

$5.95

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP (2X70)

91413-679-000

$9.23

SCREW, TAPPING (5X16)

93904-25320

$1.49

SCREW, TAPPING (4X16) (PO)

93913-24480

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
