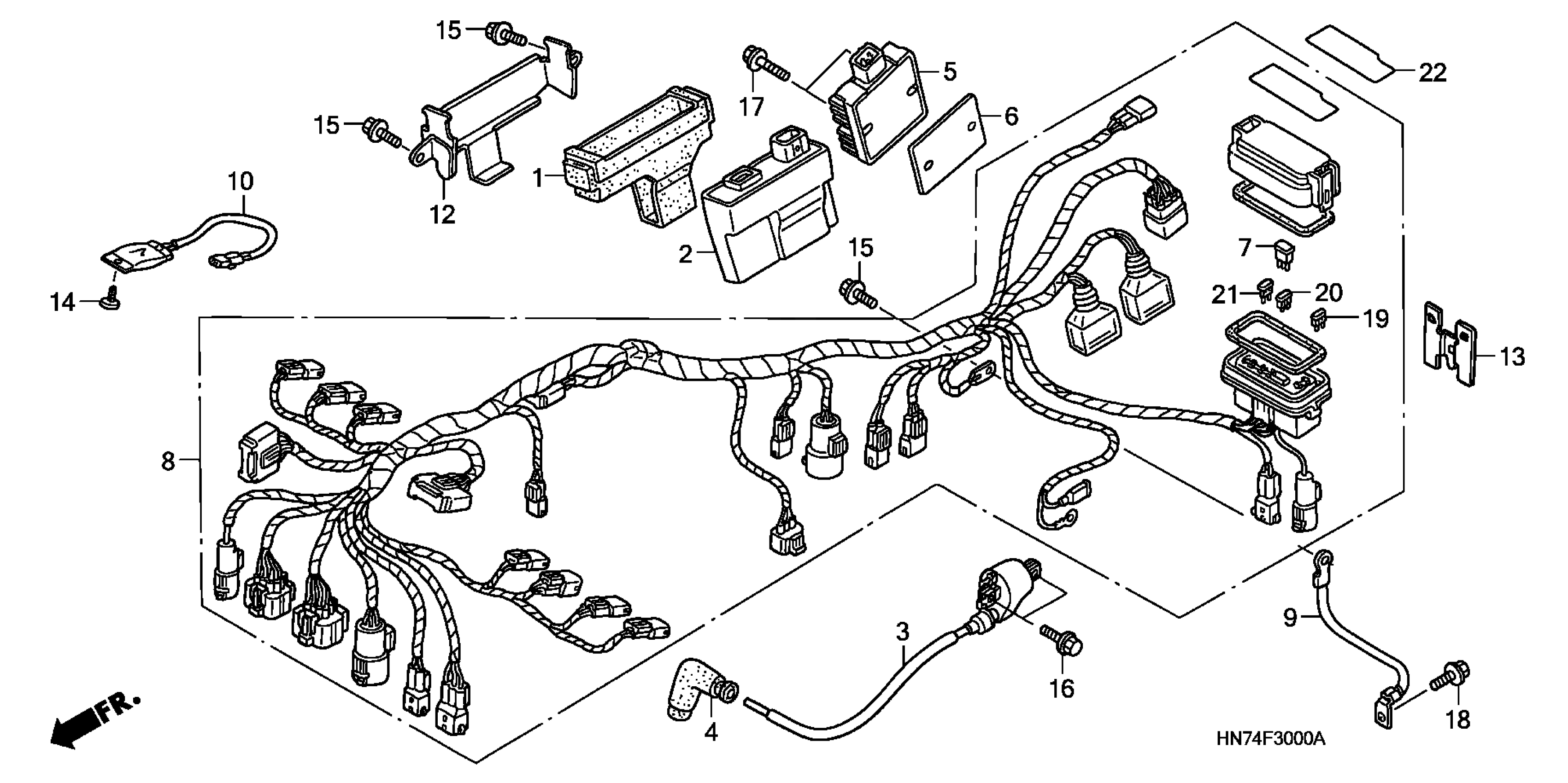

Honda TRX400FAA (06) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-64200001 TO 1HFTE290-64299999 WIRE HARNESS Diagram

SUSPENSION, CONTROL UNIT

30401-HN7-000

$25.51

CONTROL UNIT, C.D.I. & HONDAMATIC

30410-HN7-013

$218.75

COIL ASSY., IGNITION

30500-HN7-003

Unavailable

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$22.32

RECTIFIER ASSY., REGULATOR

31600-HN7-003

$125.29

PLATE, REGULATE RECTIFIER

31601-HN7-000

$28.52

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HN7-000

$1,237.02

CABLE, FRAME GROUND

32603-HN7-000

Unavailable

SWITCH ASSY., THERMOSTAT

35250-HN4-670

$48.08

STAY, ENGINE CONTROL UNIT

50269-HN7-000

$7.93

STAY, FUSE CONNECTOR

50328-HN2-000

$1.57

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (30A)

98200-43000

$1.67
