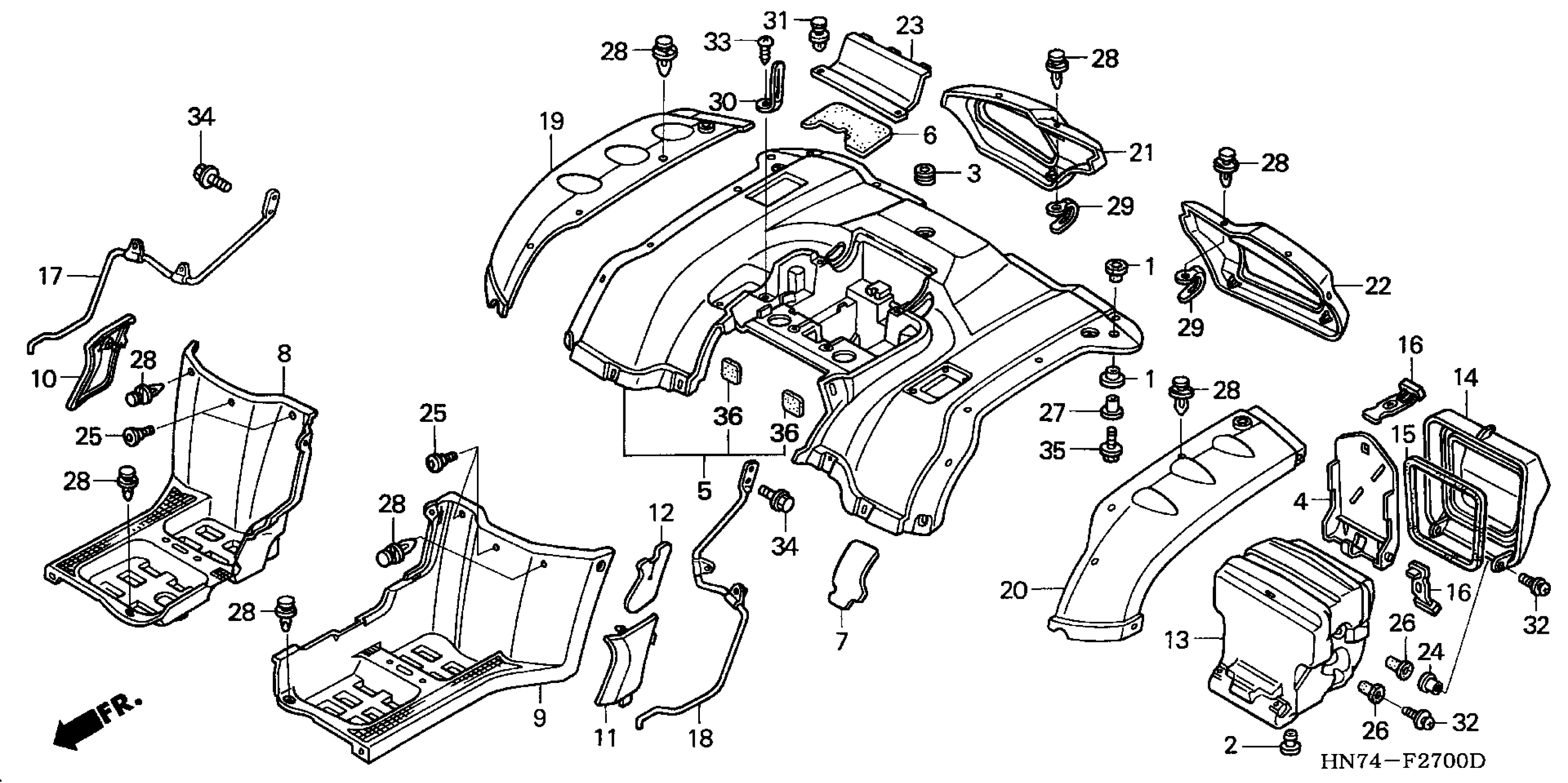

Honda TRX400FAA (06) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-64200001 TO 1HFTE290-64299999 REAR FENDER Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33718-GE2-690

$4.62

2

PLUG, HEAD PIPE

50049-046-000

$2.03

3

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

4

TRAY, OWNER'S MANUAL

77110-HN7-010

Unavailable

5

FENDER, RR. *Y151R* (STARBURST YELLOW)

80100-HN7-000ZC

$207.34

5

FENDER, RR. *G152* (ADVENTURE GREEN)

80100-HN7-000ZA

$207.36

5

FENDER, RR. *R232* (PATRIOT RED)

80100-HN7-000ZB

$194.63

5

FENDER, RR. *NH1* (BLACK)

80100-HN7-000ZD

Unavailable

6

RUBBER, BATTERY MOUNTING

80102-HN5-670

$18.19

7

MAT A, RR. FENDER

80102-HN7-000

$1.84

8

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HN7-000ZA

$124.14

9

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HN7-000ZA

$56.31

10

COVER, R. CARBURETOR SIDE *NH1* (BLACK)

80125-HN7-000ZA

$5.65

11

COVER, L. CARBURETOR SIDE *NH1* (BLACK)

80126-HN7-000ZA

$5.65

12

MAT, L. CARBURETOR SIDE COVER

80127-HN7-000

$1.52

13

BOX, TOOL

80210-HN7-010

$32.69

14

LID, TOOL BOX *NH1* (WOL) (BLACK)

80211-HN7-000ZA

$34.72

15

SEAL, TOOL BOX

80212-HN7-000

Unavailable

16

BAND, TOOL BOX

80214-HM5-850

$2.56

17

STAY, R. RR. FENDER

80217-HN7-000

$82.51

18

STAY, L. RR. FENDER

80218-HN7-000

$82.51

19

SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)

80220-HN7-000ZA

$36.81

20

SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)

80221-HN7-000ZA

$70.38

21

SPLASH GUARD, R. RR. *NH1* (BLACK)

80250-HN7-000ZA

$17.59

22

SPLASH GUARD, L. RR. *NH1* (BLACK)

80251-HN7-000ZA

$32.55

23

LID, RR. FENDER *Y151R* (STARBURST YELLOW)

80311-HN7-000ZC

$14.98

23

LID, RR. FENDER *G152* (ADVENTURE GREEN)

80311-HN7-000ZA

$14.96

23

LID, RR. FENDER *R232* (PATRIOT RED)

80311-HN7-000ZB

$14.98

23

LID, RR. FENDER *NH1* (BLACK)

80311-HN7-000ZD

$15.89

24

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

25

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

26

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

27

COLLAR (6.3X13.5)

90503-KE1-000

$4.48

28

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

29

CLIP, WIRE HARNESS

91405-MG1-000

$2.31

30

CLIP (4X60)

91410-KT7-000

$5.03

31

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

32

SCREW-WASHER (5X20)

93894-05020-08

$1.49

33

SCREW, TAPPING (5X12)

93903-25220

$1.49

34

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

35

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

36

RUBBER, TANK SETTING

17513-HC0-300

Unavailable
