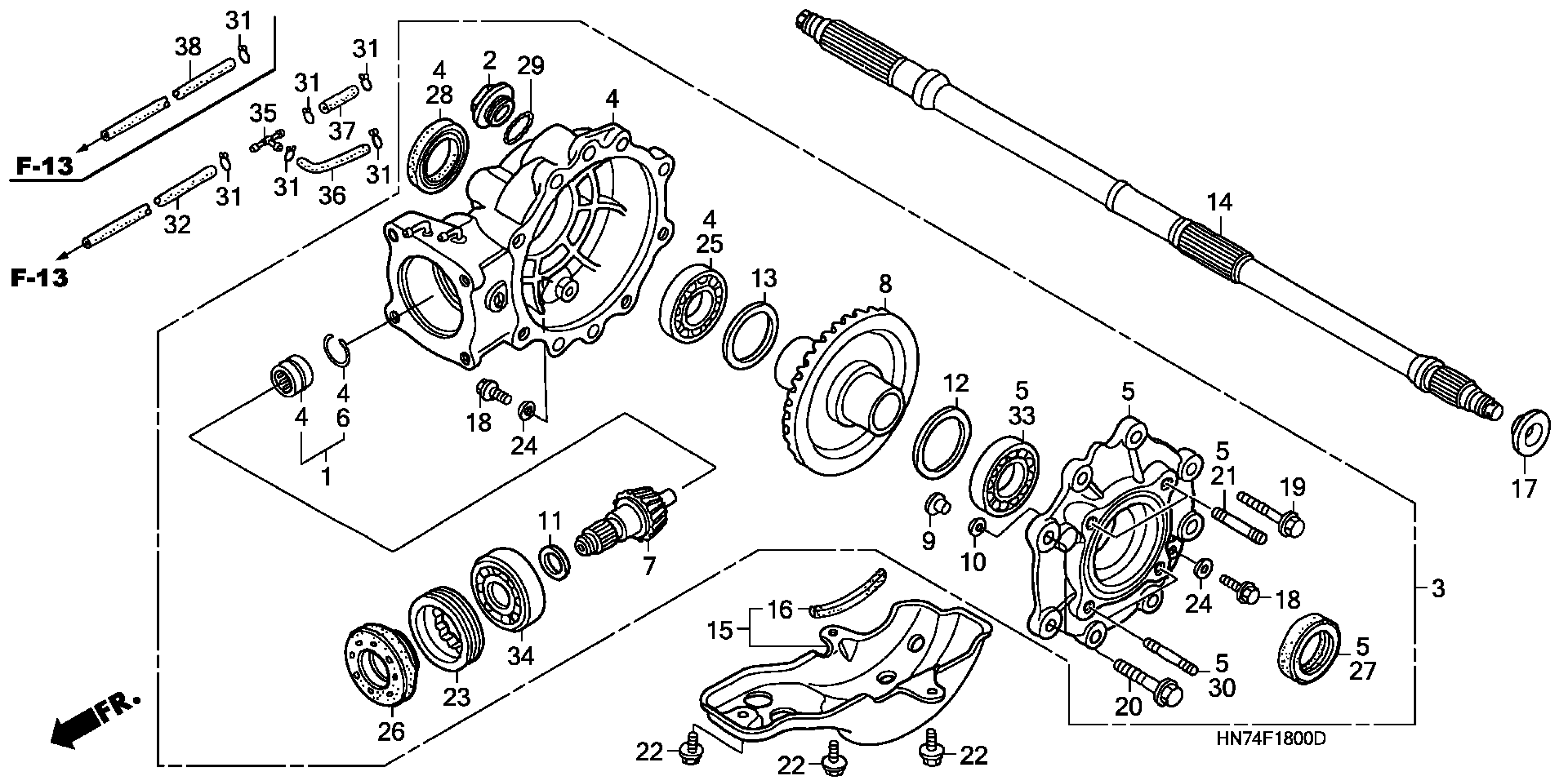

Honda TRX400FAA (06) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-64200001 TO 1HFTE290-64299999 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HM7-610

$15.13

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., RR. FINAL | Use up to Frame SN 64208025 This part replaces 41300-HN5-670.

41300-HN5-671

$402.79

3

GEAR ASSY., RR. FINAL

41300-HN5-671

$402.79

4

CASE SET, FINAL | Use up to Frame SN 64208025 This part replaces 41311-HN5-670.

41311-HN5-671

$161.46

4

CASE SET, FINAL

41311-HN5-671

$161.46

5

COVER SET, GEAR CASE This part replaces 41320-HN5-670.

41320-HN5-671

$148.89

6

RING, STOPPER

41405-HA7-670

$2.97

7

GEAR, PINION

41421-HN5-670

$115.74

8

GEAR, RING

41431-HN5-670

$363.34

9

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

10

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

10

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

11

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

11

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

11

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

11

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

11

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

11

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

11

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

11

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

11

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

11

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

12

SPACER A, RING GEAR (1.82)

41540-HA0-000

$11.84

12

SPACER B, RING GEAR (1.88)

41541-HA0-000

$12.56

12

SPACER C, RING GEAR (1.94)

41542-HA0-000

$12.56

12

SPACER D, RING GEAR (2.00)

41543-HA0-000

$11.84

12

SPACER E, RING GEAR (2.06)

41544-HA0-000

$12.56

12

SPACER F, RING GEAR (2.12)

41545-HA0-000

$11.84

12

SPACER G, RING GEAR (2.18)

41546-HA0-000

$11.84

12

SPACER H, RING GEAR (2.24)

41547-HA0-000

$11.84

12

SPACER I, RING GEAR (2.30)

41548-HA0-000

$11.84

13

SPACER A, RING GEAR (1.26)

41540-HC4-000

$12.72

13

SPACER B, RING GEAR (1.32)

41541-HC4-000

$12.72

13

SPACER C, RING GEAR (1.38)

41542-HC4-000

$12.72

13

SPACER D, RING GEAR (1.44)

41543-HC4-000

$12.72

13

SPACER E, RING GEAR (1.50)

41544-HC4-000

$12.72

13

SPACER F, RING GEAR (1.56)

41545-HC4-000

$11.99

13

SPACER G, RING GEAR (1.62)

41546-HC4-000

$12.72

13

SPACER H, RING GEAR (1.68)

41547-HC4-000

$11.99

13

SPACER I, RING GEAR (1.74)

41548-HC4-000

$12.72

13

SPACER J, RING GEAR (1.80)

41549-HC4-000

$12.72

13

SPACER K, RING GEAR (1.86)

41550-HC4-000

$11.99

14

SHAFT, RR. AXLE

42311-HN5-672

$195.01

15

PLATE, SKID

50355-HN5-670

$54.87

16

RUBBER, STOPPER

50356-HM7-300

$1.61

17

STOPPER, L. BEARING

52112-HA0-000

$16.79

18

BOLT, SEALING (8MM)

90109-371-000

$2.58

19

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

20

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

21

BOLT, STUD (10X22)

90135-HA7-770

$8.63

22

BOLT, FLANGE (8X12)

90190-MG3-000

$3.58

23

NUT, LOCK (64MM)

90242-MB0-000

$32.52

24

GASKET (8MM)

90471-580-000

$2.92

25

BEARING, RADIAL BALL (43X68X13)

91051-HC4-003

$47.70

26

OIL SEAL (34X70X11)

91251-HM8-003

$15.59

27

OIL SEAL (35X49X6) (NOK)

91252-HA0-004

$13.41

28

OIL SEAL (42X51X7)

91271-HC4-004

$10.65

29

O-RING (30.8MM)

91302-001-020

$3.75

30

BOLT, STUD (10X28)

92900-10028-0E

$2.18

31

CLIP, TUBE (C6.5)

95002-35000

$1.49

33

BEARING, RADIAL BALL (6007)

96100-60073-00

$25.05

34

BEARING, RADIAL BALL (6206)

96100-62060-00

$23.53

38

BULK HOSE, VACUUM (3.5X1000) (3.5X760)

95005-35001-30M

$8.63
