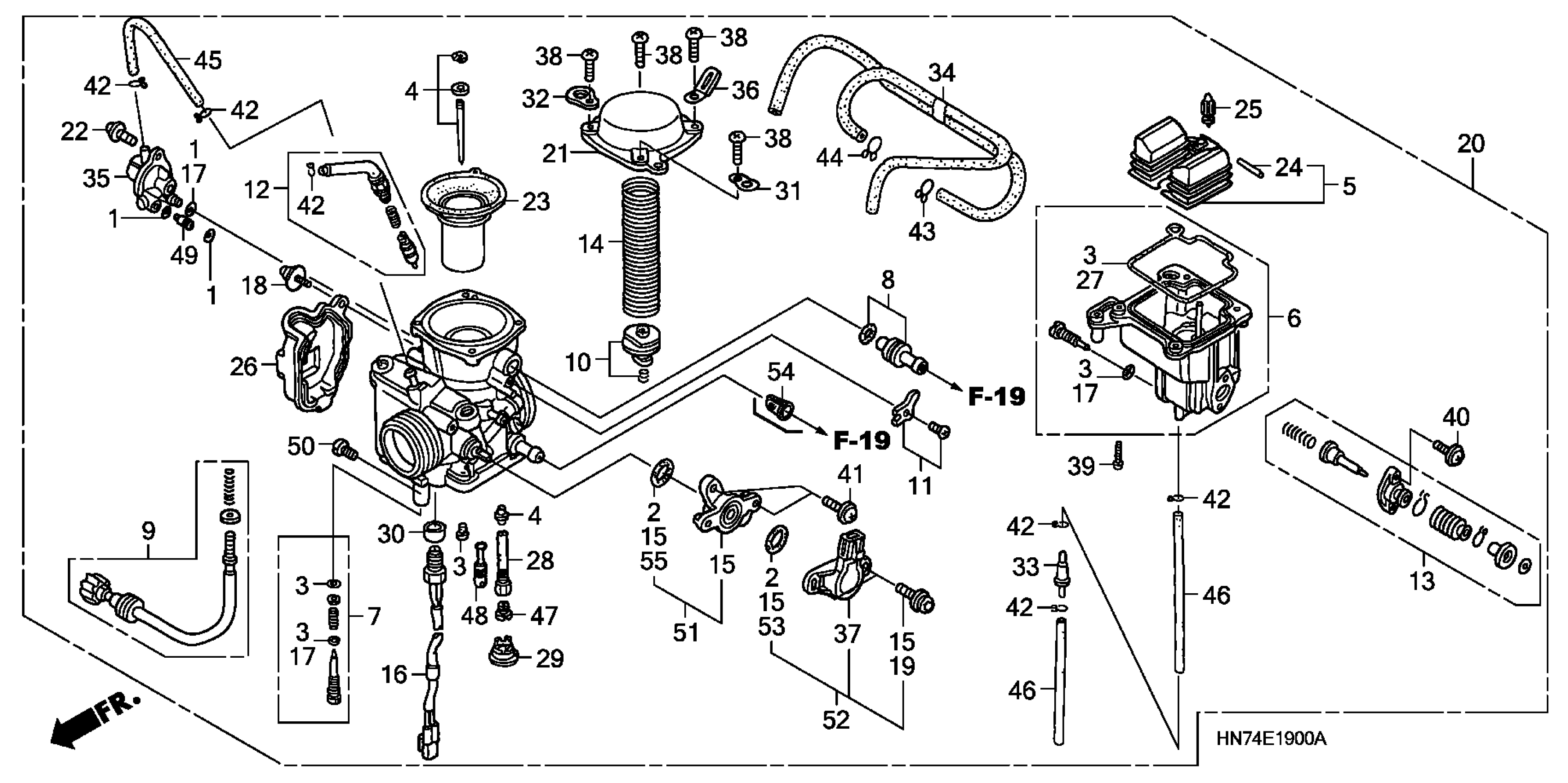

Honda TRX400FAA (06) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-64200001 TO 1HFTE290-64299999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$16.54

2

GASKET SET

16010-HN2-003

$5.90

3

GASKET SET

16010-HN7-003

$16.04

4

NEEDLE SET, JET

16012-HN2-003

$41.68

5

FLOAT SET

16013-HN8-003

$36.12

6

CHAMBER SET, FLOAT

16015-HN7-013

$38.19

7

SCREW SET

16016-HM7-670

$27.14

8

JOINT SET

16026-MR1-004

$37.68

9

SCREW SET

16028-HN7-003

Unavailable

10

PLATE SET, VALVE

16037-HN2-003

$17.72

11

PLATE SET, STAY This part replaces 16038-HN2-003.

16038-HN8-003

Unavailable

12

VALVE, STARTER

16046-HN2-003

$50.94

13

PUMP SET

16048-HN7-003

$80.48

14

SPRING, COMPRESSION COIL

16050-MBH-670

Unavailable

15

SPACER SET, THROTTLE SENSOR

16060-HN7-003

Unavailable

16

HEATER ASSY.

16070-HN7-003

Unavailable

17

O-RING (1.3X4.3)

16075-GHB-640

$2.69

18

SCREW-WASHER

16080-HC0-003

$3.95

19

SCREW, TORX (5X16)

16080-MT7-000

$3.09

20

CARBURETOR ASSY This part replaces 16100-HN7-013.

16100-HN7-023

$331.59

21

TOP

16107-HN7-003

Unavailable

22

SCREW

16108-MW0-750

$2.32

23

PISTON, VACUUM

16111-HN2-003

$109.94

24

PIN, ARM

16152-HN8-003

$3.90

25

VALVE, FLOAT

16155-HN7-003

$26.51

26

COVER, BODY

16157-HN8-003

$25.25

27

GASKET, FLOAT CHAMBER

16163-MEA-671

$21.27

28

HOLDER, NEEDLE JET

16165-HN2-003

$27.28

29

HOLDER, JET

16168-HC4-003

$9.70

30

COLLAR, SETTING

16172-KEB-610

$3.35

31

BINDER

16179-HA0-003

$11.88

32

BINDER (NOT AVAILABLE) This part replaces 16179-428-670.

16179-428-671

Unavailable

33

VALVE, ONE-WAY

16180-HC4-003

$16.54

34

TUBE, AIR VENT

16196-HN2-003

Unavailable

35

VALVE ASSY., AIR CUT

16510-MBW-601

$114.46

36

CLIP, PLATE

17191-MN5-740

Unavailable

37

SENSOR ASSY,THROT This part replaces 37890-HN2-006.

37890-H09-J02

$142.61

38

SCREW, PAN (4X12)

93500-04012-0H

$0.90

38

SCREW, PAN (4X12) This part replaces 93500-04012-1H.

93500-04012-0H

$0.90

39

SCREW, PAN (4X14)

93500-04014-0H

$0.82

39

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.82

40

SCREW-WASHER (4X12)

93892-04012-08

$0.75

40

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.75

41

SCREW-WASHER (5X14)

93892-05014-08

$1.09

41

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.09

42

CLIP, TUBE (B7)

95002-02079

$1.10

43

CLIP, TUBE (B8)

95002-02089

$0.96

44

CLIP, TUBE (B6.5)

95002-02659

$1.01

45

BULK HOSE, VACUUM (3.5X1000) (3.5X130)

95005-35001-20M

$11.77

46

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

95005-35001-50M

$13.55

47

JET, MAIN (#138) | (Optional). This part replaces 99101-HN7-1380.

99101-KPE-1380

$11.75

47

JET, MAIN (#142) This part replaces 99101-HN7-1420.

99101-KPE-1420

$10.00

48

JET, SLOW (#45) This part replaces 99104-HN2-0450.

99104-KPF-0450

$10.89

49

JET, SLOW AIR (#100)

99108-MW0-1002

$4.99

50

JET, MAIN (#98) This part replaces 99112-HN7-0980.

99101-ZV5-0980

$5.46
