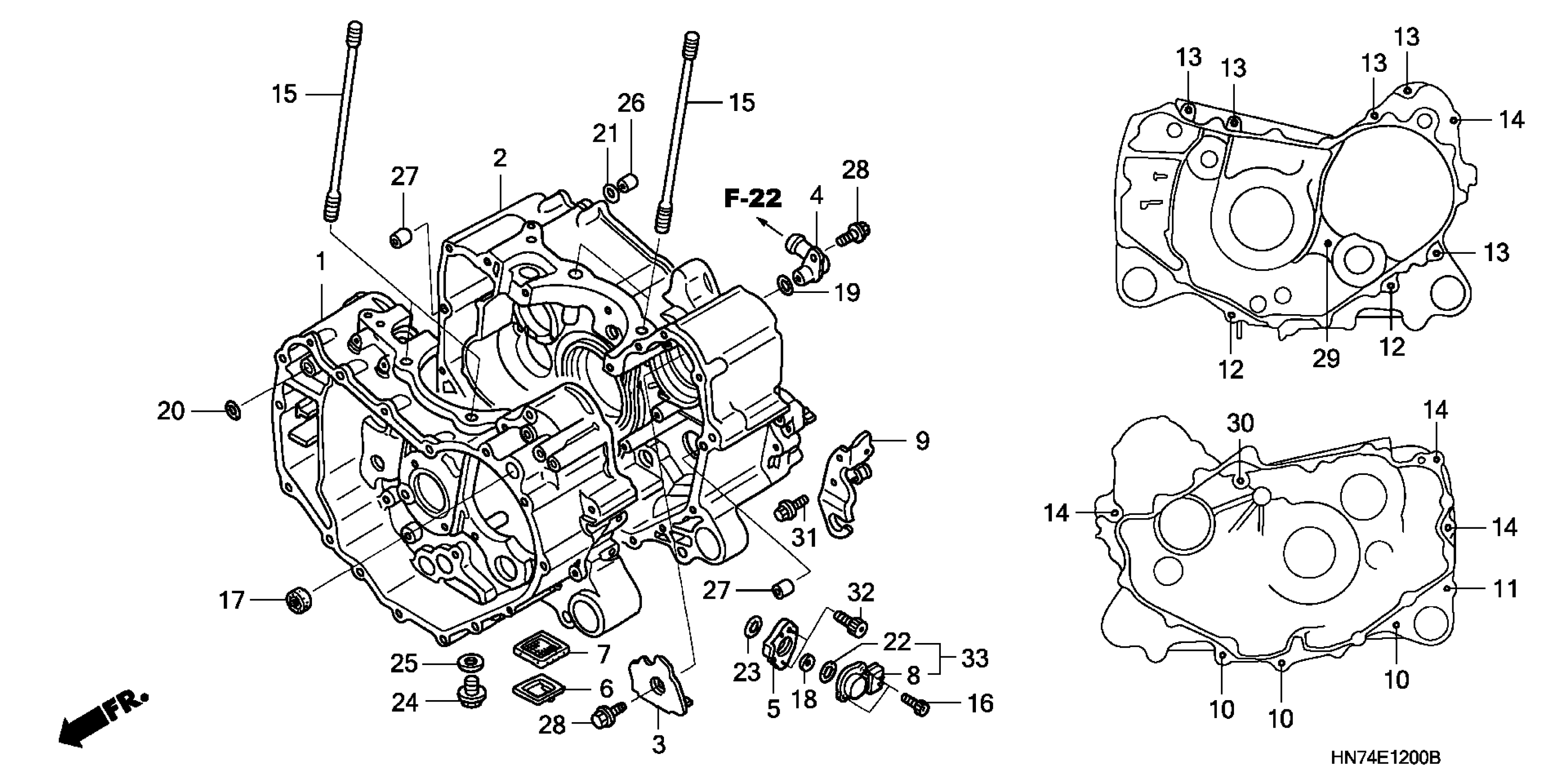

Honda TRX400FAA (05) FOURTRAX RANCHER AT, USA, VIN# 1HFTE290-54100001 TO 1HFTE290-54199999 CRANKCASE Diagram

CRANKCASE, FR.

11100-HN7-000

$580.44

CRANKCASE, RR.

11200-HN7-000

$318.13

PLATE, BREATHER

11221-HN7-000

$6.46

JOINT, BREATHER

11230-HN7-000

Unavailable

BRACKET, ANGLE SENSOR

11361-HN7-010

Unavailable

STRAINER, OIL

15153-HN7-000

$5.98

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$11.99

SENSOR KIT, ANGLE | Use up to Engine SN 8100008 This part replaces 38800-HN2-005.

06380-HN2-305

$121.49

SENSOR KIT, ANGLE This part replaces 38800-HN2-015.

06380-HN2-305

$121.49

STAY, SHIFT CABLE HOLDER

54341-HN7-000

$3.34

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

BOLT, FLANGE (6X60) (NSHF)

90004-GHB-750

$4.06

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$3.12

BOLT, FLANGE (6X95) (NSHF)

90004-GHB-820

$3.20

BOLT, STUD (10X166)

90031-HC0-000

$11.54

BOLT, SOCKET (5X14)

90049-KBH-000

$1.51

OIL SEAL (9X18X7) (ARAI)

91201-PA9-004

$7.36

OIL SEAL (6X13X5) (ARAI)

91202-GF9-003

$3.41

O-RING (13.8X1.9)

91302-PR7-A00

$3.13

O-RING (1.5X9.5)

91306-MG3-000

$2.33

O-RING (5.5X1.4)

91319-ME5-003

$1.85

O-RING (25X2.4) (NOK)

91321-P0X-003

$3.83

O-RING (14X1.5)

91304-035-000

$2.70

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (6X10)

94301-06100

$2.25

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

BOLT, FLANGE (6X80)

95701-06080-08

$2.34

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, SOCKET (6X18)

96600-06018-00

$1.49
