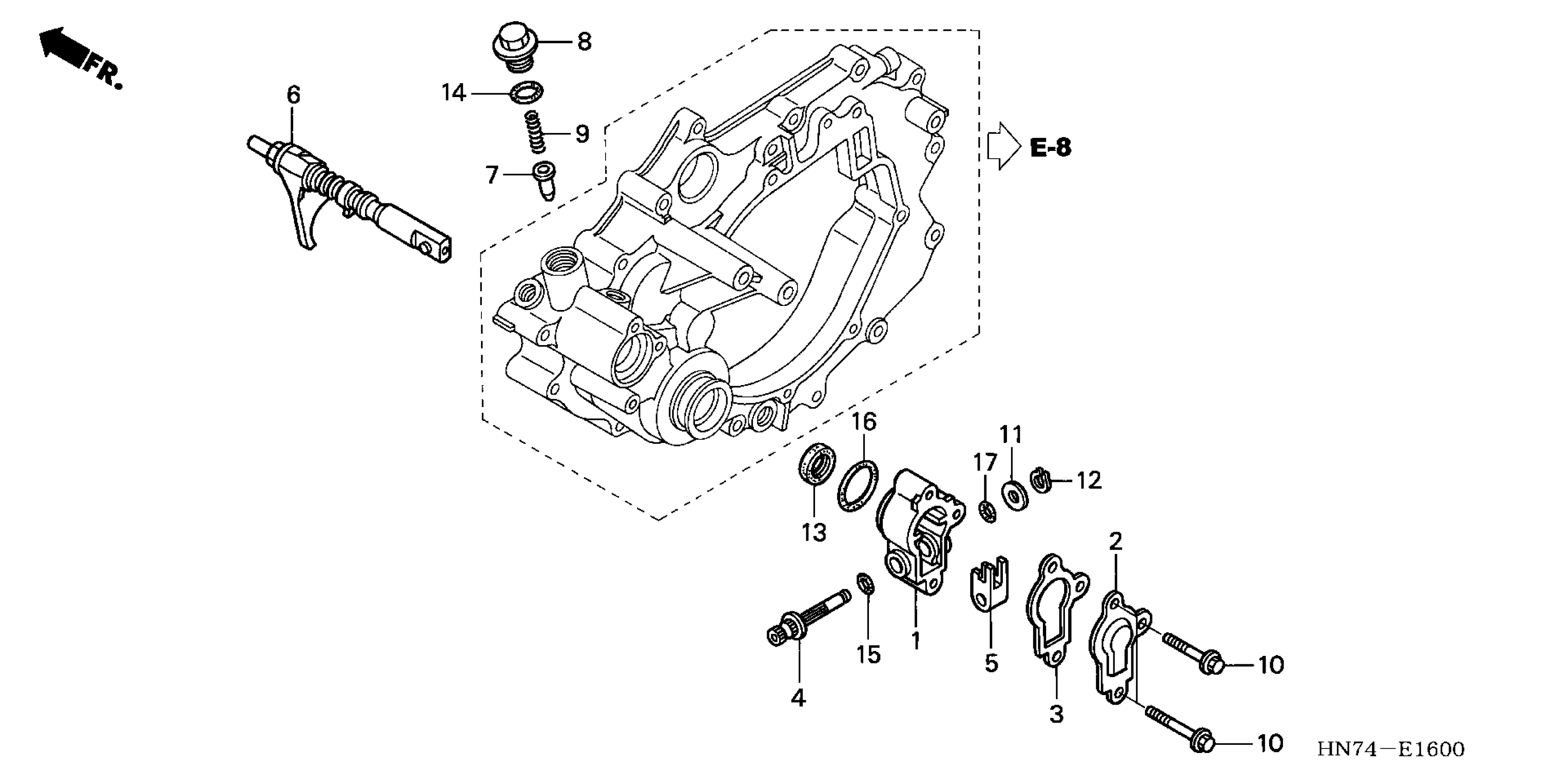

Honda TRX400FAA (04) FOURTRAX RANCHER AT, USA, VIN# 478TE290-44000001 TO 478TE290-44099999 SHIFT FORK Diagram

CASE, CHANGE PIVOT

24510-HN7-000

Unavailable

PLATE, CHANGE COVER

24511-HN7-000

Unavailable

GASKET, CHANGE CASE COVER

24515-HN7-000

Unavailable

SHAFT, CHANGE LEVER

24521-HN7-000

Unavailable

LEVER, CHANGE PIVOT

24522-HN7-000

$33.79

SHAFT, CHANGE This part replaces 24530-HN7-000.

24530-HN7-900

Unavailable

SHAFT, CHANGE

24530-HN7-900

Unavailable

PIN, CHANGE STOPPER

24671-HN7-000

$6.40

BOLT, CHANGE STOPPER

24672-HN7-000

$8.35

SPRING, CHANGE STOPPER

24673-HN7-000

Unavailable

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.89

WASHER B (8MM)

90505-GJ3-600

$1.99

CIRCLIP (OUTER) (8MM)

90604-HA0-000

$1.79

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.12

OIL SEAL (15X25X7)

91203-965-003

$6.12

O-RING (15.2X1.5) This part replaces 91301-GR0-003.

91301-GR0-004

$2.50

O-RING (15.2X1.5)

91301-GR0-004

$2.50

O-RING (7.5X1.5)

91302-HB3-004

$2.01

O-RING (27.5X1.7)

91316-612-000

$4.87

O-RING (5.5X1.4)

91319-ME5-003

$1.71
