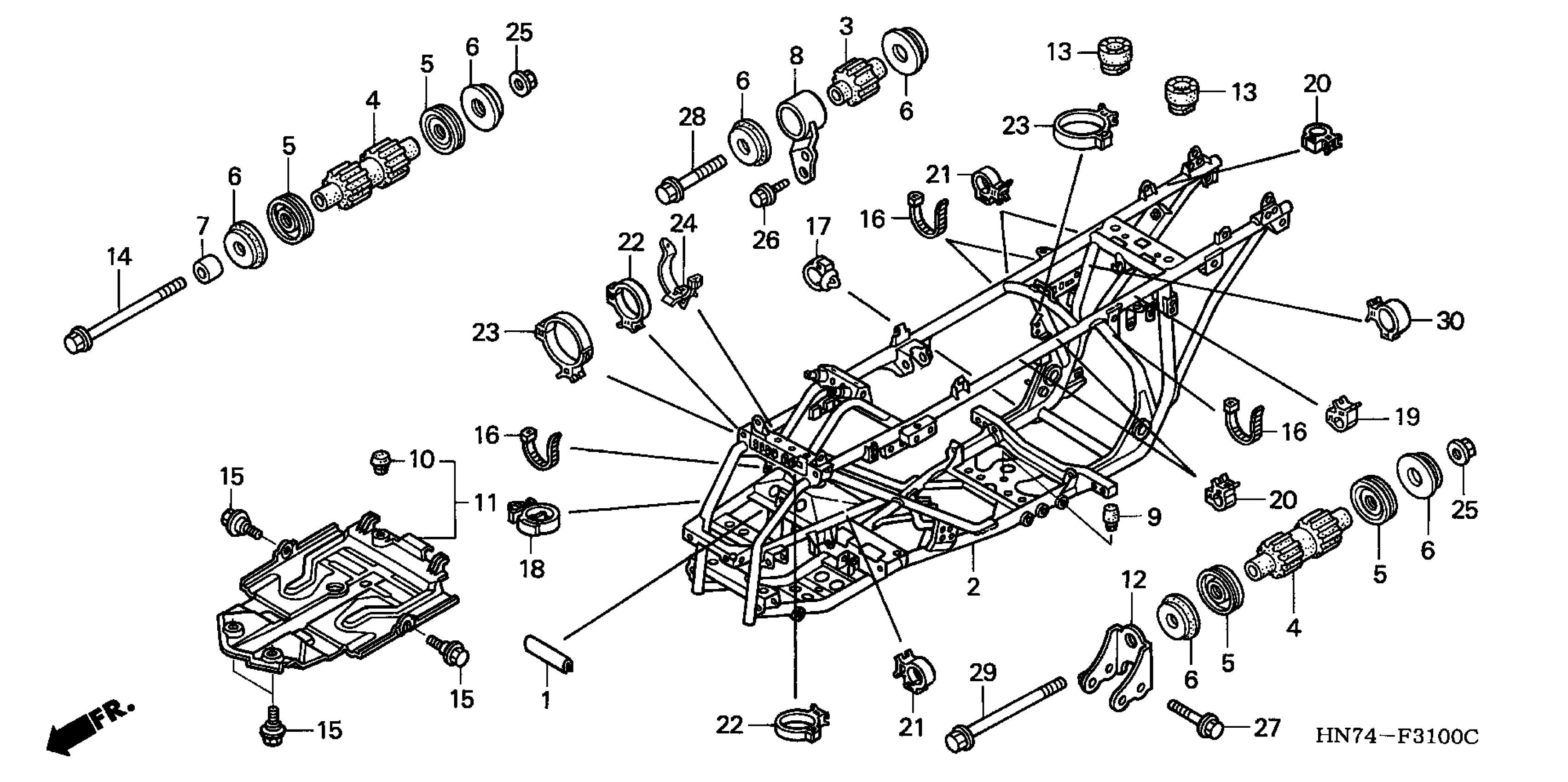

Honda TRX400FAA (04) FOURTRAX RANCHER AT, USA, VIN# 478TE290-44000001 TO 478TE290-44099999 FRAME Diagram

#

Description
Price

1

TRIM, FUEL TANK

17516-HC4-000

$3.91

2

FRAME

50100-HN7-000

Unavailable

3

RUBBER, ENGINE HEAD MOUNTING

50201-HN2-000

$12.35

4

RUBBER, ENGINE MOUNTING (LOWER)

50202-HM8-003

$37.61

5

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$18.33

6

RUBBER C, MOUNTING

50204-HM8-000

$6.49

7

COLLAR, ENGINE HANGER

50205-HM8-000

$7.60

8

BRACKET, HEAD HANGER

50351-HN7-000

$59.54

9

RUBBER A, STOPPER

50352-HM5-730

$19.51

10

RUBBER B, STOPPER

50354-428-000

$2.62

11

GUARD ASSY., ENGINE

50360-HN7-000

$59.17

12

HANGER, ENGINE (LOWER)

50363-HN7-000

$3.96

13

CUSHION, SEAT MOUNTING

77207-HA0-000

$6.64

14

BOLT, ENGINE HANGER

90103-147-000

$11.11

15

BOLT, FLANGE (8X18)

90186-GBC-000

$1.01

16

BAND, WIRE

90651-KV6-003

$2.80

17

CLAMP, HARNESS

90652-HC4-003

$5.54

18

CLIP, HARNESS

90684-ZA0-601

$2.80

19

CLIP, CABLE (8MM)

90690-GHB-631

$1.99

20

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

21

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

22

CLIP, CABLE (25MM)

90690-GHB-671

$1.99

23

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

24

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.41

25

NUT, FLANGE (10MM)

94050-10000

$1.41

26

BOLT, FLANGE (8X22)

95701-08022-00

$1.91

27

BOLT, FLANGE (8X60)

95701-08060-00

$1.38

28

BOLT, FLANGE (10X60)

95701-10060-00

$1.80

29

BOLT, FLANGE (10X125)

95801-10125-00

Unavailable

30

CLIP, CABLE (20MM)

90690-GHB-661

$1.99
