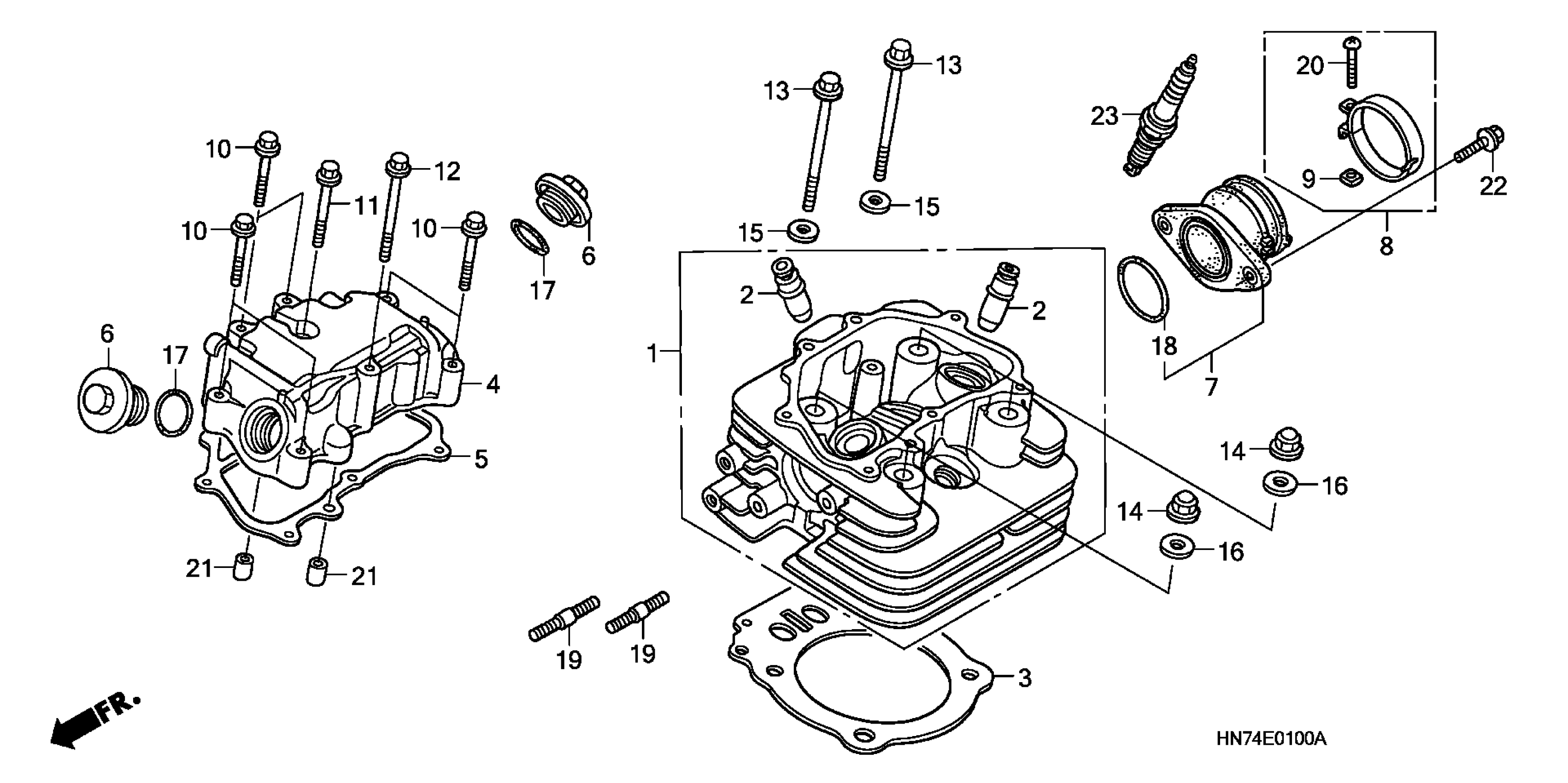

Honda TRX400FAA (04) FOURTRAX RANCHER AT, USA, VIN# 478TE290-44000001 TO 478TE290-44099999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HN7-010

$529.30

2

GUIDE, VALVE (OVER SIZE)

12204-HN7-305

Unavailable

3

GASKET, CYLINDER HEAD

12251-HN7-013

$20.04

4

COVER, CYLINDER HEAD This part replaces 12310-HN7-000.

12310-HN7-900

Unavailable

5

GASKET, HEAD COVER

12315-HN7-000

$14.12

6

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

6

CAP, VALVE ADJ.

12361-300-000

Unavailable

6

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

7

INSULATOR, CARBURETOR

16210-HN7-000

$36.39

8

BAND B, INSULATOR

16218-MW4-000

$14.92

9

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

10

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

11

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$3.95

12

BOLT, FLANGE (6X60) (NSHF)

90004-GHB-750

$3.77

13

BOLT, FLANGE (6X110)

90003-PL5-000

$7.53

14

NUT, FLANGE CAP (10MM)

90201-HA0-000

$5.99

14

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

15

WASHER, SEALING (6MM)

90441-706-000

$1.06

16

WASHER (10MM)

90465-MM9-000

$3.30

17

O-RING (30.8MM)

91302-001-020

$3.41

18

O-RING (37X2.4)

91305-HN0-A00

$2.85

19

BOLT, STUD (8X25)

92900-08025-0B

$2.00

20

SCREW, PAN (5X25)

93500-05025-0G

$0.68

21

PIN, DOWEL (8X14)

94301-08140

$2.04

22

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

23

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.00

23

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.25

23

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.00

23

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.25
