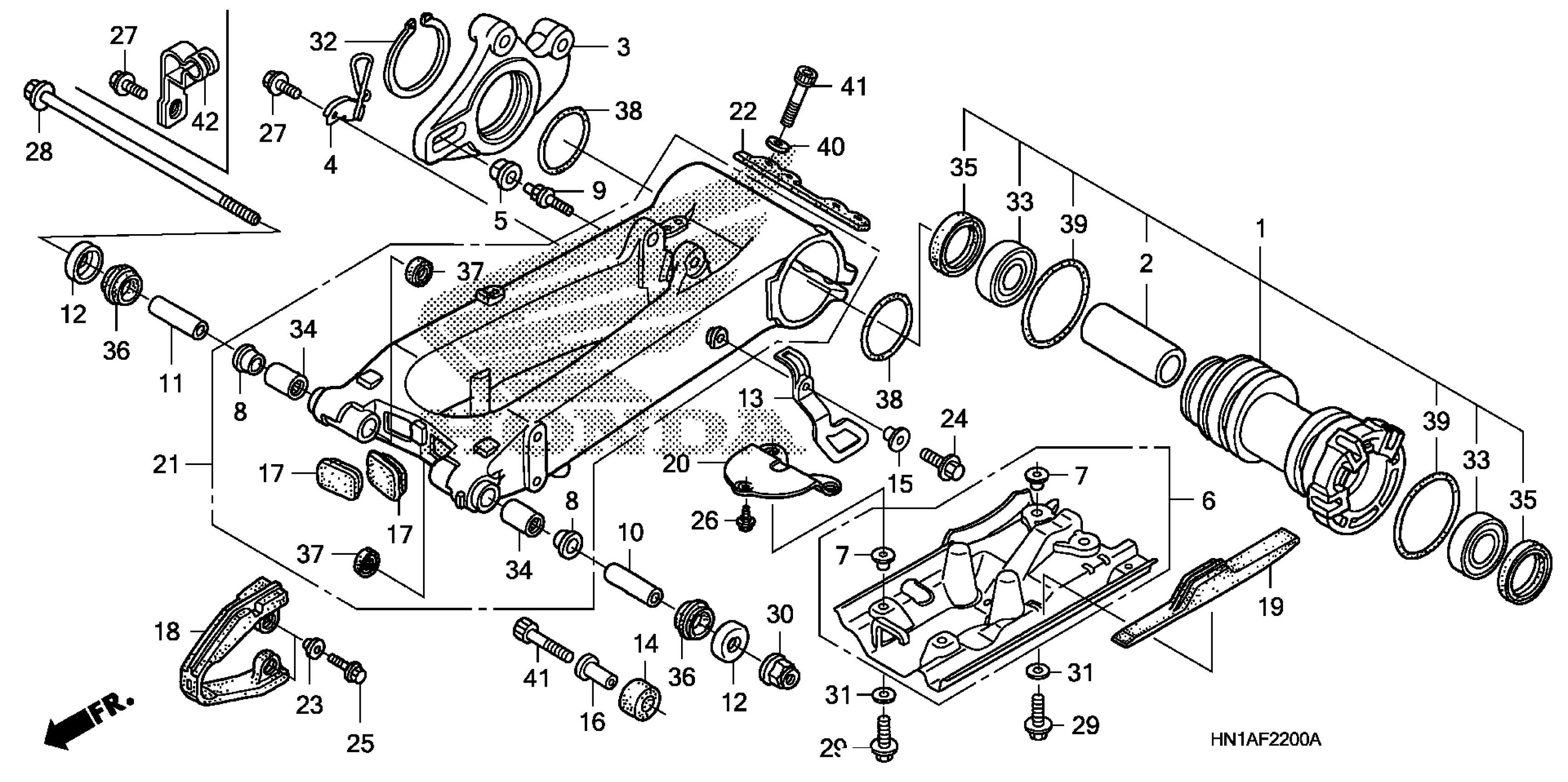

Honda TRX400EXA (07) TRX400EX, USA, VIN# 1HFTE230-74700001 TO 1HFTE230-74799999 SWINGARM Diagram

HOLDER ASSY., BEARING

42500-HN1-A40

$518.69

COLLAR, RR. AXLE

42621-HB9-770

$87.00

STAY, RR. CALIPER

43211-HN1-A40

$68.33

GUIDE, BRAKE HOSE

43465-HP1-000

$7.11

BUSH, RR. BRAKE STAY

43483-HB5-670

$8.83

PLATE, SKID

50355-HN1-A40

$171.13

COLLAR, SKID PLATE This part replaces 50358-HP1-000.

50358-HP1-600

$3.13

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

BOLT, TORQUE LINK

52121-HB9-770

$13.75

COLLAR, SWINGARM PIVOT

52141-HN1-000

$15.45

COLLAR B, SWINGARM PIVOT

52142-HN1-000

$19.44

CAP, DUST SEAL

52144-KA3-731

$14.60

GUARD, DRIVE CHAIN

52156-HN1-A40

$4.03

ROLLER, CHAIN

52158-HC0-000

$11.84

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

COLLAR, CHAIN ROLLER

52159-467-000

$11.56

CAP, RR. SWINGARM

52161-HN1-010

$4.45

SLIDER, CHAIN

52170-HN1-000

$35.83

SLIDER, CHAIN GUIDE

52181-HN1-A40

$24.59

PLATE, RR. CUSHION PROTECTION

52191-HN1-000

$20.77

SWINGARM SUB-ASSY., RR.

52200-HN1-A40

Unavailable

SEAL, BEARING HOLDER

52202-HB9-770

$14.67

COLLAR

81312-GJ5-000

$3.31

BOLT, FLANGE (6X22)

90105-HP1-000

$1.49

BOLT, FLANGE (6X18)

90105-MY9-000

$2.92

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24

BOLT, FLANGE (6X14)

90112-GW3-000

$2.02

BOLT, SWINGARM PIVOT

90121-HN1-000

$48.70

BOLT, FLANGE (8X20)

90131-GW0-750

$5.12

NUT, U (14MM)

90305-GE8-003

$3.86

WASHER (8.5X26)

90504-MA6-000

$1.66

CIRCLIP (OUTER) (70)

90665-964-000

$13.19

BEARING (40X62X12) (KOYO)

91051-HA2-013

$35.80

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$33.10

DUST SEAL (52X62X7) (ARAI)

91252-HA2-003

$16.85

DUST SEAL

91253-KA4-701

$12.86

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

O-RING, ROTARY CASE

91351-737-752

$5.53

O-RING, BEARING HOLDER (ARAI)

91353-HA2-003

$6.82

WASHER, PLAIN (8MM)

94102-08000

$1.49

BOLT, SOCKET (8X40)

96700-08040-00

$1.49
