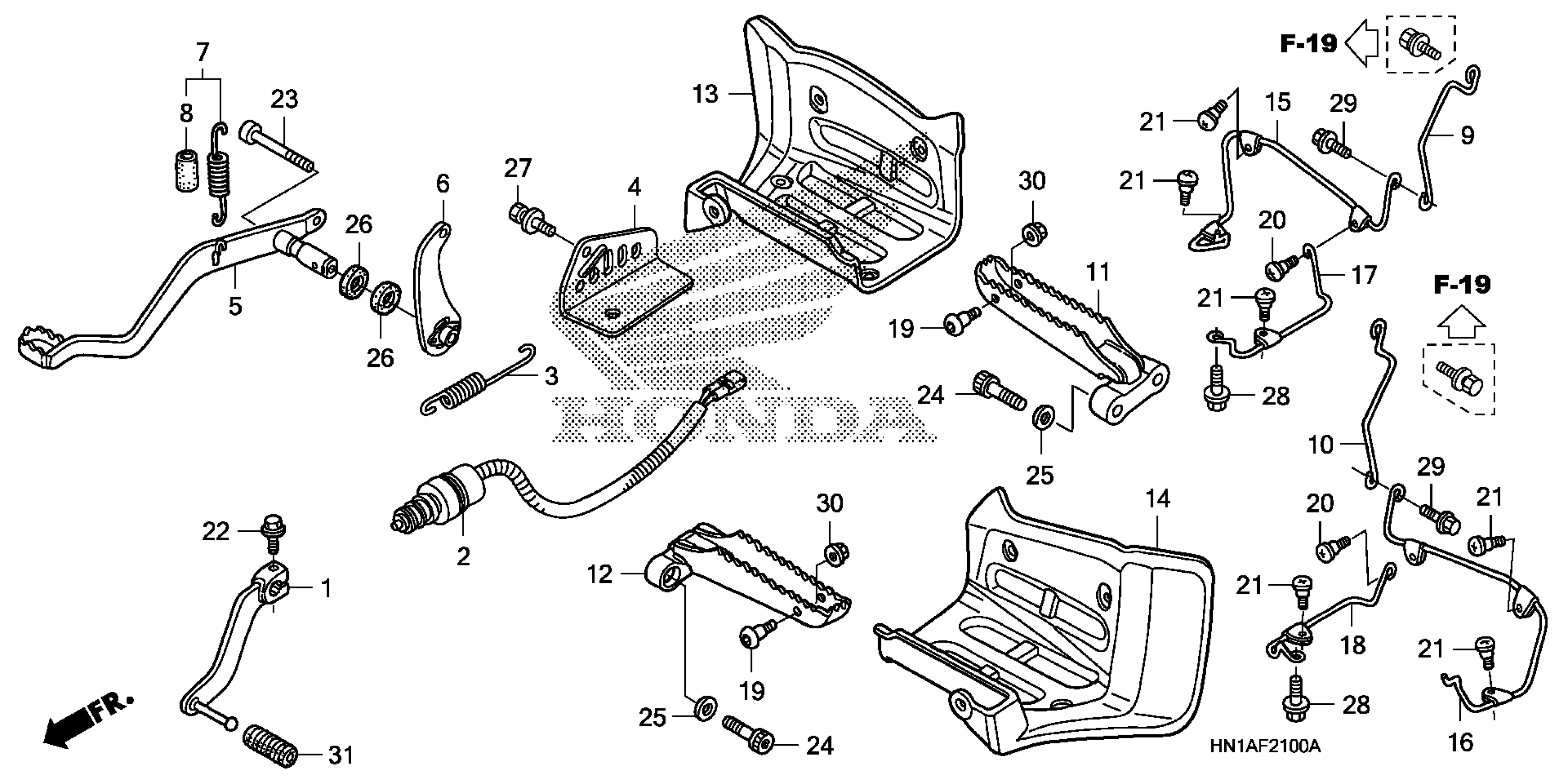

Honda TRX400EXA (07) TRX400EX, USA, VIN# 1HFTE230-74700001 TO 1HFTE230-74799999 STEP + PEDAL (1) Diagram

#

Description
Price

1

PEDAL, GEARSHIFT *NH1* (BLACK)

24700-HN1-A70ZA

$22.36

1

PEDAL, GEARSHIFT *NH1* (BLACK) This part replaces 24700-HN1-010ZB.

24700-HN1-A70ZA

$22.36

2

SWITCH ASSY., RR. STOP

35350-HN1-A41

Unavailable

3

SPRING, STOP SWITCH

35357-HN1-A40

$2.80

4

GUARD, RR. STOP SWITCH

35359-HN1-A40

$2.76

5

PEDAL, BRAKE

46510-HN1-A40

$25.47

6

HOOK, STOP SWITCH SPRING

46511-HN1-A40

$82.57

7

SPRING ASSY., RR. BRAKE PEDAL

46513-HN1-000

$20.15

8

TUBE, BRAKE PEDAL SPRING

46514-HN1-000

$5.34

9

GUIDE, R. RR. FENDER

50218-HN1-000

Unavailable

10

GUIDE, L. RR. FENDER

50219-HN1-000

$44.91

11

STEP, R.

50610-HN1-000

$80.40

12

STEP, L.

50620-HN1-000

$131.87

13

SPLASH GUARD, R. RR. *NH1* (BLACK)

80121-HN1-000ZA

$44.19

14

SPLASH GUARD, L. RR. *NH1* (BLACK)

80122-HN1-000ZA

$12.77

15

STAY, R. SPLASH GUARD (OUTER)

80123-HN1-000

$237.04

16

STAY, L. SPLASH GUARD (OUTER)

80124-HN1-000

Unavailable

17

STAY, R. SPLASH GUARD (INNER)

80126-HN1-000

$111.31

18

STAY, L. SPLASH GUARD (INNER)

80127-HN1-000

Unavailable

19

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.19

20

SCREW, SPLASH GUARD (6X20)

90103-HB9-740

$4.05

21

SCREW, SPLASH GUARD

90103-HC4-770

$2.06

22

BOLT, FLANGE (6X20)

90118-968-000

$4.04

23

BOLT, SOCKET (6X50)

90134-MBB-000

$4.10

24

BOLT, SOCKET (10X45)

90181-HN1-000

$2.13

25

WASHER (10MM)

90410-HP1-000

$2.50

26

DUST SEAL (15X20X3)

91251-MT4-003

$3.63

27

BOLT-WASHER (6X12)

93404-06012-00

$1.50

28

BOLT-WASHER (6X16)

93404-06016-07

$1.50

29

BOLT-WASHER (6X20)

93404-06020-00

$1.50

30

NUT, FLANGE (6MM)

94050-06000

$0.60

31

RUBBER, CHANGE PEDAL

95011-40000

$1.16
