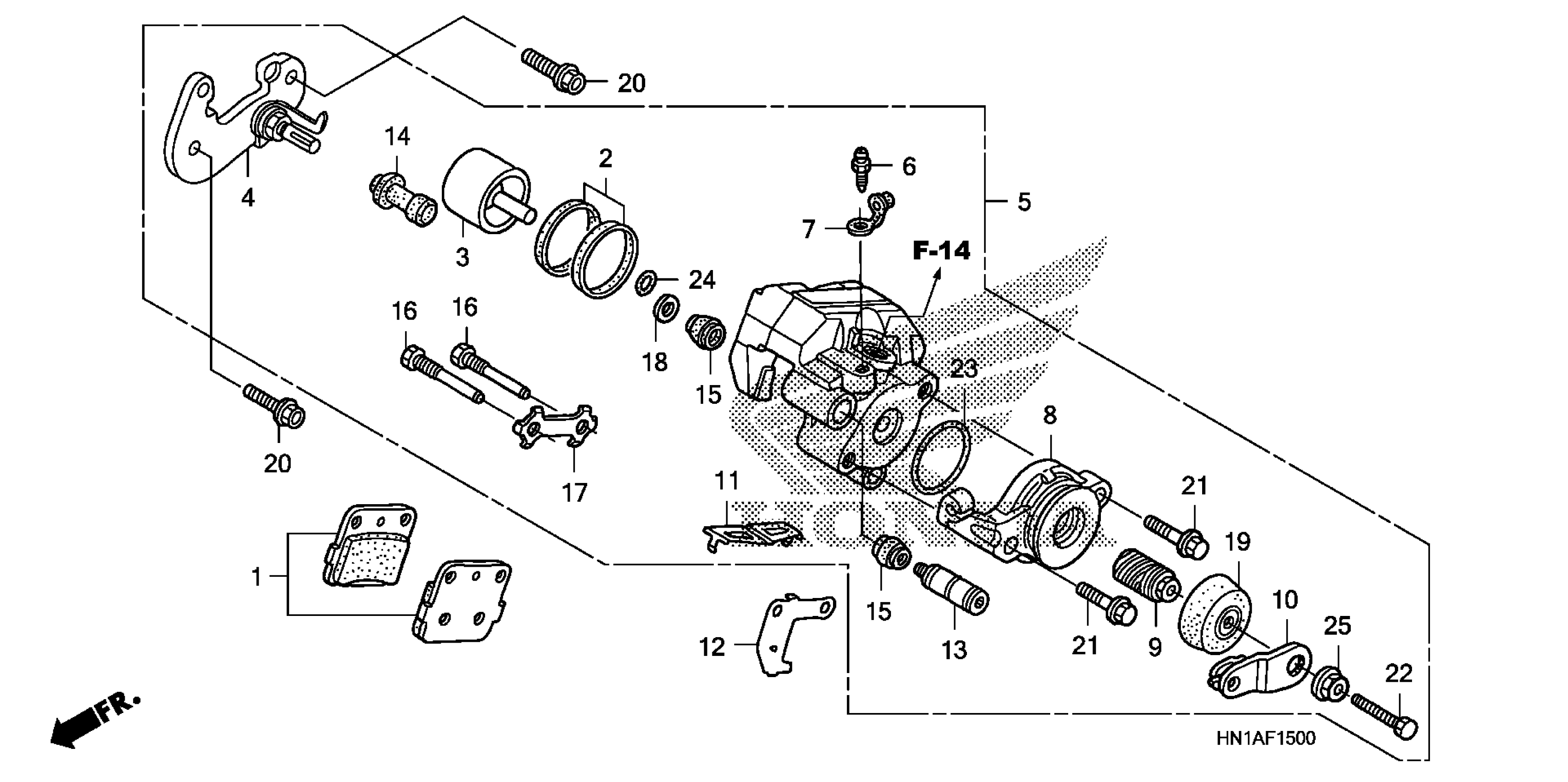

Honda TRX400EXA (07) TRX400EX, USA, VIN# 1HFTE230-74700001 TO 1HFTE230-74799999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR. (NISSIN) This part replaces 06435-HA5-670.

06435-HA5-671

$42.81

PAD SET, RR. (NISSIN)

06435-HA5-671

$42.81

SEAL SET, PISTON

06451-961-405

$6.56

PISTON (NISSIN)

43109-HC0-681

$115.97

BRACKET SUB-ASSY., RR.

43190-HN1-A41

$22.47

CALIPER SUB-ASSY., RR.

43250-HN1-A41

$137.55

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

BRAKE, PARKING

43360-HN1-A41

$16.40

SHAFT, L.

43361-961-006

$17.88

ARM, PARKING BRAKE

43362-HN1-A41

$5.85

SPRING, PAD

45108-166-006

$7.46

SHIM

45114-GE3-601

$5.92

PIN, SLIDE

45115-166-006

$17.27

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT, PIN

45133-166-016

$3.85

PIN, HANGER

45215-166-006

$13.51

WASHER, TONGUED

45217-166-006

$5.33

WASHER, CONICAL SPRING

45218-166-006

$3.78

DUST SEAL, MASTER CYLINDER

46184-611-000

$10.61

BOLT, FLANGE (8X28)

90102-KV3-700

$3.92

BOLT (8X25)

90116-410-006

$6.07

BOLT (8X40)

90126-961-006

$5.16

O-RING (31)

91357-964-006

$4.31

O-RING (P8)

91358-964-006

$2.39

NUT-WASHER (8MM)

94071-08080

$1.49
