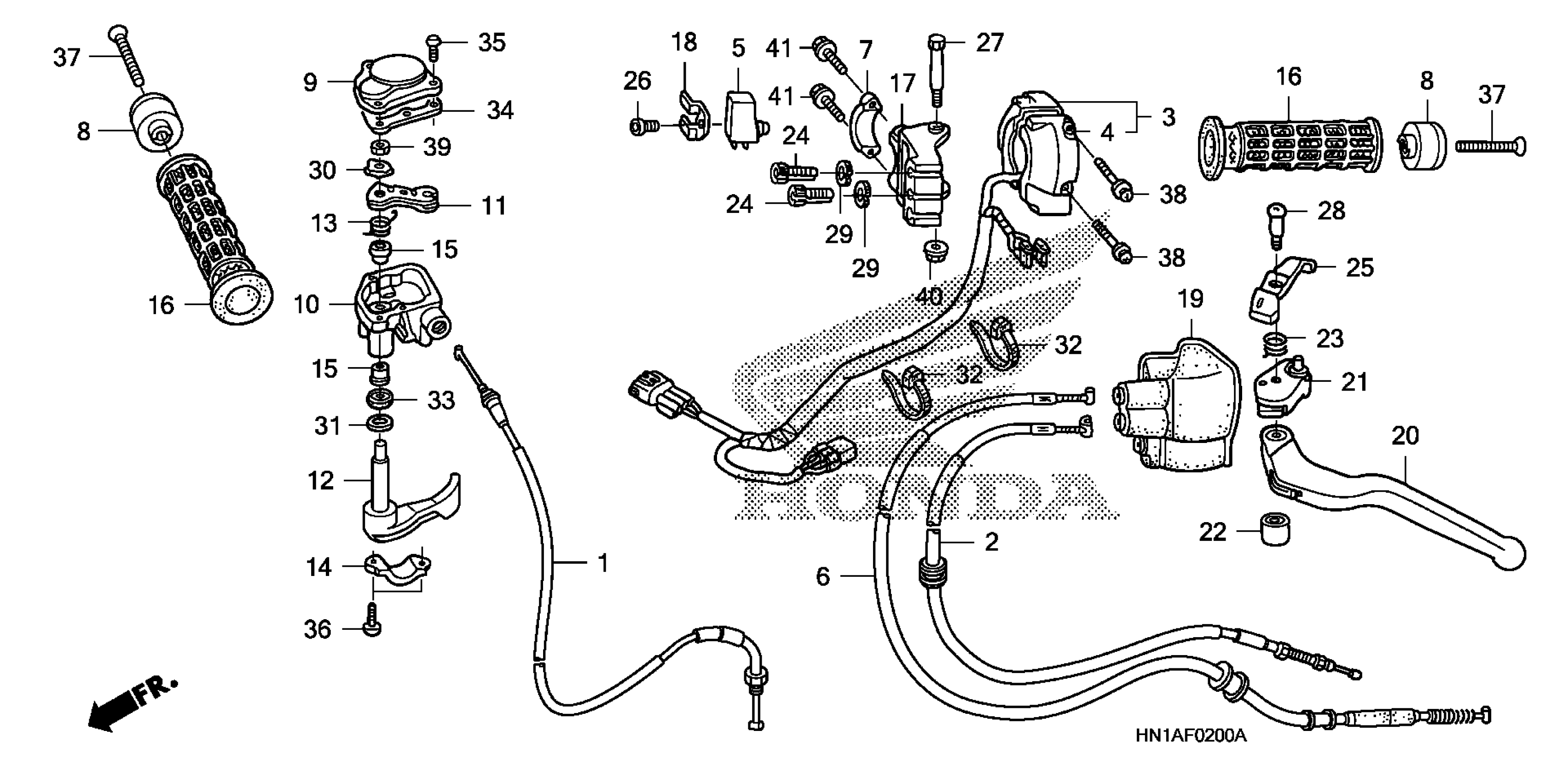

Honda TRX400EXA (07) TRX400EX, USA, VIN# 1HFTE230-74700001 TO 1HFTE230-74799999 HANDLE LEVER + SWITCH + CABLE (1) Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HN1-A40

$33.82

2

CABLE, CLUTCH

22870-HN1-A40

$26.27

3

SWITCH ASSY., LIGHTING & STARTER STOP

35200-HN1-A41

$46.57

4

COVER, SWITCH

35201-HB7-671

$12.37

5

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

6

CABLE, PARKING BRAKE

43455-HN1-A40

Unavailable

7

HOLDER, MASTER CYLINDER

45517-GW0-751

$11.39

8

WEIGHT, HANDLEBAR

53105-HN1-000

$17.44

9

COVER, THROTTLE CASE

53141-HP1-000

$33.58

10

CASE, THROTTLE LEVER

53142-HC0-770

$38.21

11

ARM, THROTTLE

53144-HA0-010

$7.36

12

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$21.43

12

LEVER, THROTTLE

53145-HA0-770

$21.43

13

SPRING, THROTTLE RETURN

53146-HM8-000

$2.95

14

HOLDER, THROTTLE CASE

53147-HM5-850

$3.44

15

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

16

GRIP, HANDLE

53165-958-010

$12.28

17

BRACKET, L. HANDLE LEVER

53172-HM3-000

Unavailable

18

PLATE, CLUTCH SWITCH

53173-HM3-A00

$5.90

19

COVER, L. HANDLE LEVER

53177-HM3-000

$9.76

20

LEVER, L. HANDLEBAR

53178-HN1-000

Unavailable

21

ARM ASSY., PARKING

53180-HM3-000

$38.25

22

COLLAR, HANDLE LEVER PIVOT

53182-HN1-000

Unavailable

23

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

24

BOLT, WIRE ADJUSTING

53192-268-000

$6.23

25

LEVER, PARKING BRAKE LOCK

53192-965-000

$19.83

26

BOLT, SOCKET (5X12)

90103-HN1-A40

$1.74

27

BOLT, HANDLE LEVER PIVOT

90113-HC0-000

Unavailable

28

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.80

29

NUT, FIXING

90321-315-670

$6.97

30

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

31

WASHER (9X20)

90504-HA0-000

$2.10

32

BAND, WIRE

90650-KW3-000

$4.28

33

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

33

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

34

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

35

SCREW, PAN (4X16)

93500-04016-0G

$0.76

36

SCREW, PAN (5X14)

93500-05014-0G

$3.40

37

SCREW, FLAT (6X40)

93600-06040-0G

$0.76

38

SCREW-WASHER (5X25)

93892-05025-07

$1.00

38

SCREW-WASHER (5X25) This part replaces 93892-05025-17.

93892-05025-07

$1.00

39

NUT, HEX. (6MM)

94002-06000-0S

$1.21

40

NUT, FLANGE (6MM)

94050-06000

$0.60

41

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
