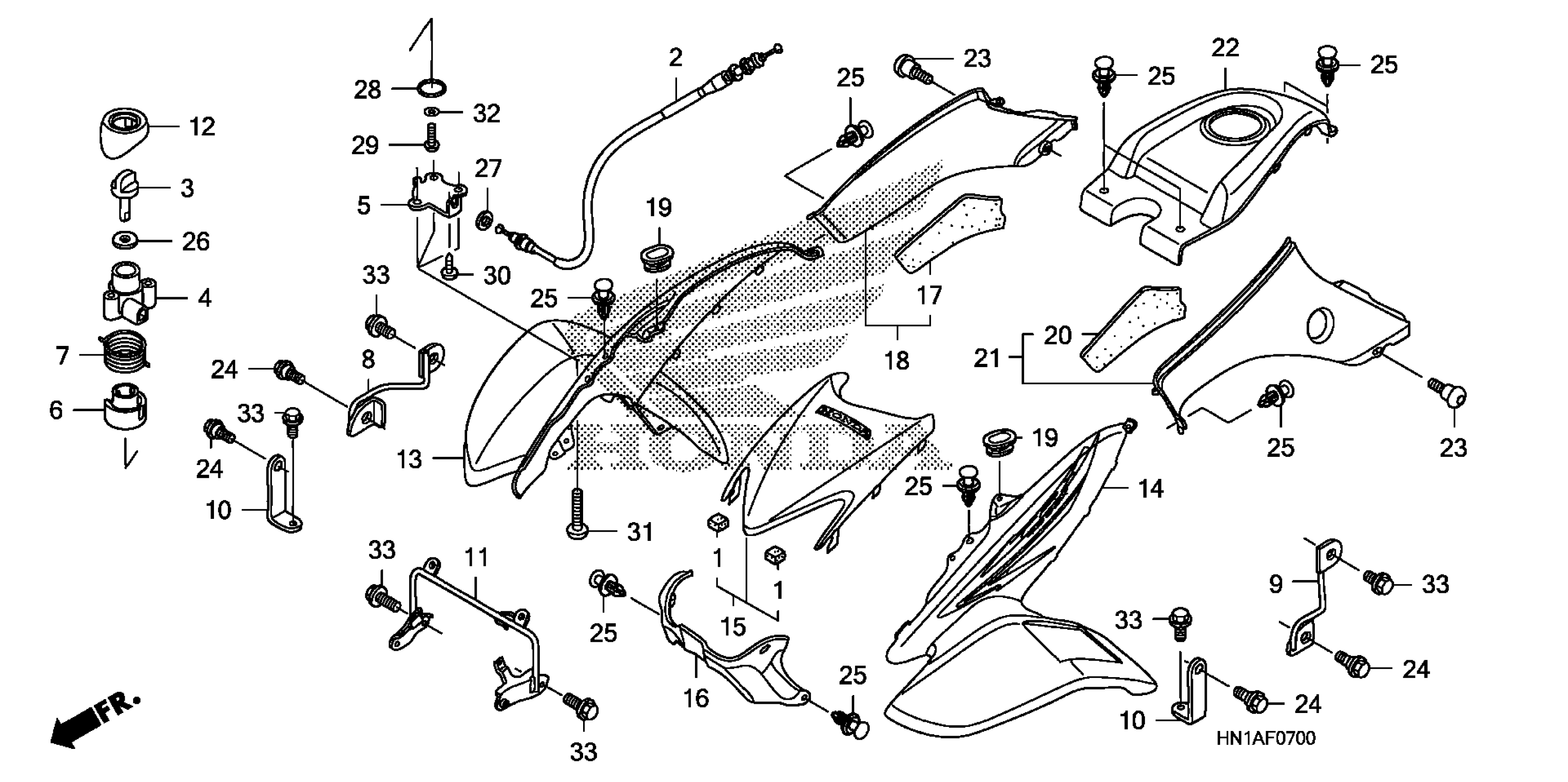

Honda TRX400EXA (07) TRX400EX, USA, VIN# 1HFTE230-74700001 TO 1HFTE230-74799999 FRONT FENDER + REVERSE ASSIST (1) Diagram

#

Description
Price

1

RUBBER, RADIATOR SHROUD

19036-GS2-600

$2.92

2

CABLE, REVERSE ASSIST

22880-HN1-A40

Unavailable

3

KNOB, REVERSE ASSIST LEVER

22881-HN1-A40

Unavailable

4

CASE, REVERSE ASSIST LEVER

22882-HN1-A40

Unavailable

5

COVER LOWER REVERSE ASSIST LEVER

22883-HN1-A40

$3.87

6

DRUM, REVERSE ASSIST LEVER

22885-HN1-A40

$3.08

7

SPRING, REVERSE ASSIST LEVER

22886-HN1-A40

$2.64

8

STAY, R. FR. FENDER SUPPORT

61101-HN1-000

Unavailable

9

STAY, L. FR. FENDER SUPPORT

61102-HN1-000

$80.83

10

STAY, FR. FENDER

61103-HN1-000

$21.68

11

STAY, FR. FENDER

61105-HN1-A40

$45.85

12

HOLDER, REVERSE ASSIST LEVER

61110-HN1-A40

$17.66

13

FENDER SET, R. FR. *NH1* (WL) (BLACK) | Black NH1;

61150-HN1-A60ZA

$240.48

13

FENDER SET, R. FR. *R299R* (WL) (NITRO RED) | Nitro red R299R;

61150-HN1-A60ZB

$385.74

14

FENDER SET, L. FR. *NH1* (WL) (BLACK) | Black NH1;

61250-HN1-A60ZA

Unavailable

14

FENDER SET, L. FR. *R299R* (WL) (NITRO RED) | Nitro red R299R;

61250-HN1-A60ZB

$240.41

15

COVER SET, FR. CENTER *NH1* (WL) (BLACK)

61350-HN1-A60ZA

$27.74

16

COVER, FR. (LOWER) *NH1* (BLACK)

61400-HN1-A40ZA

$16.66

17

MAT, R. SIDE COVER

83506-HN1-300

$7.27

18

COVER ASSY., R. SIDE *NH1* (BLACK)

83550-HN1-A40ZA

$54.36

19

GROMMET, SIDE COVER

83551-MA6-000

$3.35

20

MAT, L. SIDE COVER

83606-HN1-300

Unavailable

21

COVER ASSY., L. SIDE *NH1* (BLACK)

83650-HN1-A40ZA

$58.46

22

COVER, FUEL TANK TOP *NH1* (BLACK)

83700-HN1-000ZC

$17.64

23

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

24

BOLT, FLANGE (6MM)

90111-187-000

$5.59

25

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

26

OIL SEAL (6X11X4) (ARAI)

91231-891-003

$2.33

27

O-RING (7.7X1.9) (NOK)

91311-PA9-004

$3.11

28

O-RING (25.8X2.4)

91326-HW1-671

$2.48

29

SCREW, PAN (3X10)

93500-03010-0H

$1.49

30

SCREW, TAPPING (3X10)

93901-22220

$1.49

31

SCREW, TAPPING (5X40)

93901-25820

$1.49

32

WASHER, PLAIN (3MM)

94101-03800

$1.49

33

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
