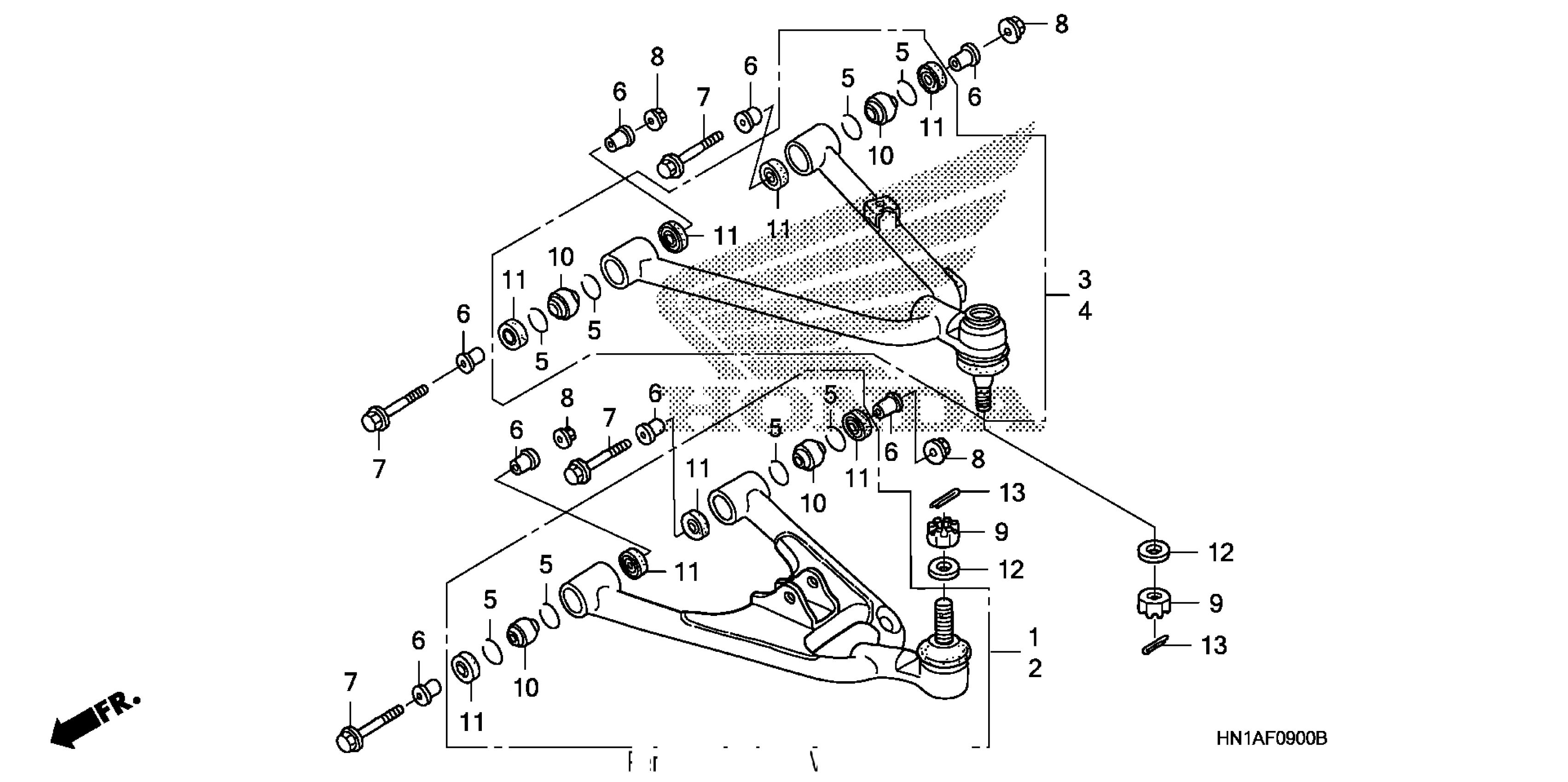

Honda TRX400EXA (07) TRX400EX, USA, VIN# 1HFTE230-74700001 TO 1HFTE230-74799999 FRONT ARM Diagram

ARM ASSY., R. FR. (LOWER)

51350-HN1-A40

$429.13

ARM ASSY., L. FR. (LOWER)

51360-HN1-A40

$429.13

ARM ASSY., R. FR. (UPPER)

51370-HN1-A40

Unavailable

ARM ASSY., L. FR. (UPPER)

51380-HN1-A40

$329.87

RING, STOPPER

51393-HB9-670

$4.75

COLLAR, FR. ARM PIVOT

51394-HC0-000

$10.35

BOLT, FLANGE (10X62)

90183-HC0-770

$9.63

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

NUT, CASTLE (12MM)

90310-HB9-000

$5.78

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$35.17

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

$3.74

WASHER, PLAIN (12MM)

94102-12000

$1.13

PIN, SPLIT (3.0X18)

94201-30180

$0.96
