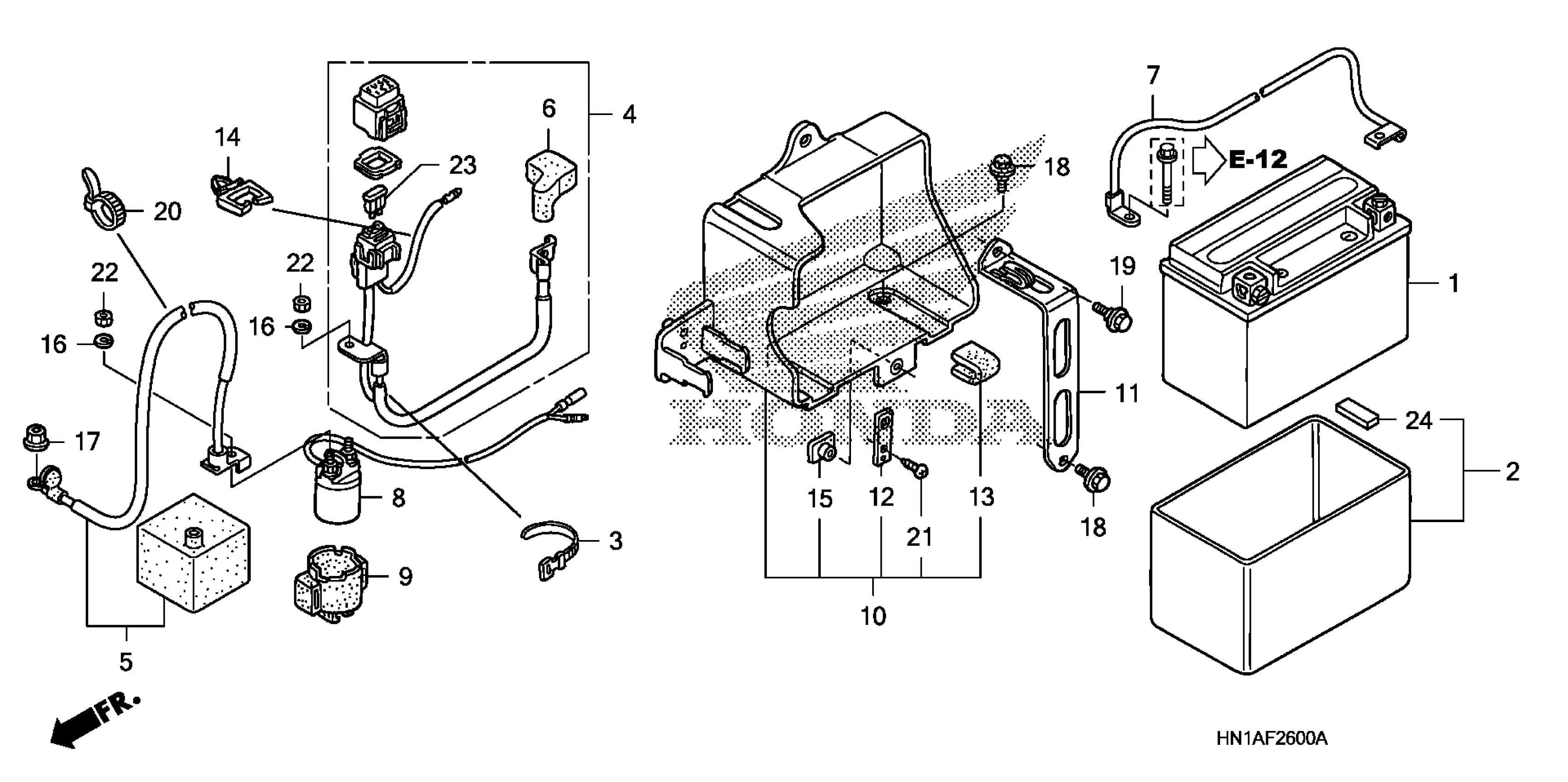

Honda TRX400EXA (07) TRX400EX, USA, VIN# 1HFTE230-74700001 TO 1HFTE230-74799999 BATTERY (1) Diagram

BATTERY (YTX9-BS) (YUASA) (MSDS)

31500-HN1-003AH

Unavailable

TRAY, BATTERY

31521-HM3-000

$31.82

BAND B1, WIRE

32161-404-610

$2.23

CABLE, STARTER BATTERY

32401-HN1-A40

Unavailable

CABLE, STARTER MOTOR

32402-HN1-A40

$39.53

COVER, BATTERY TERMINAL

32411-HA6-681

$5.61

CABLE, BATTERY GROUND

32601-HN1-A40

$21.64

SWITCH ASSY., STARTER MAGNETIC

35850-HM3-000

$103.66

RUBBER, SHOCK

35856-KR0-007

$10.12

BOX, BATTERY

50325-HN1-A10

$54.74

BAND, BATTERY

50326-HN1-A70

$27.74

BAND, BATTERY This part replaces 50326-HN1-000.

50326-HN1-A70

$27.74

STAY, FUSE

50327-HN1-000

$202.77

RUBBER, BATTERY (30X40X3)

50384-HM5-670

$2.33

CLIP, WIRE HARNESS

53105-GC1-003

Unavailable

NUT, SPECIAL (6X7)

61304-958-003

$3.24

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

NUT-WASHER (6MM)

90071-MB0-000

$1.97

BOLT, FLANGE (6X14)

90111-HC4-000

$2.99

BOLT, FLANGE (6MM)

90111-147-000

$2.75

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

SCREW, TAPPING (4X10)

93913-24180

$1.49

NUT, HEX. (6MM)

94002-06390-0S

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49

RUBBER, CUSHION

17508-MN5-000

$3.92
