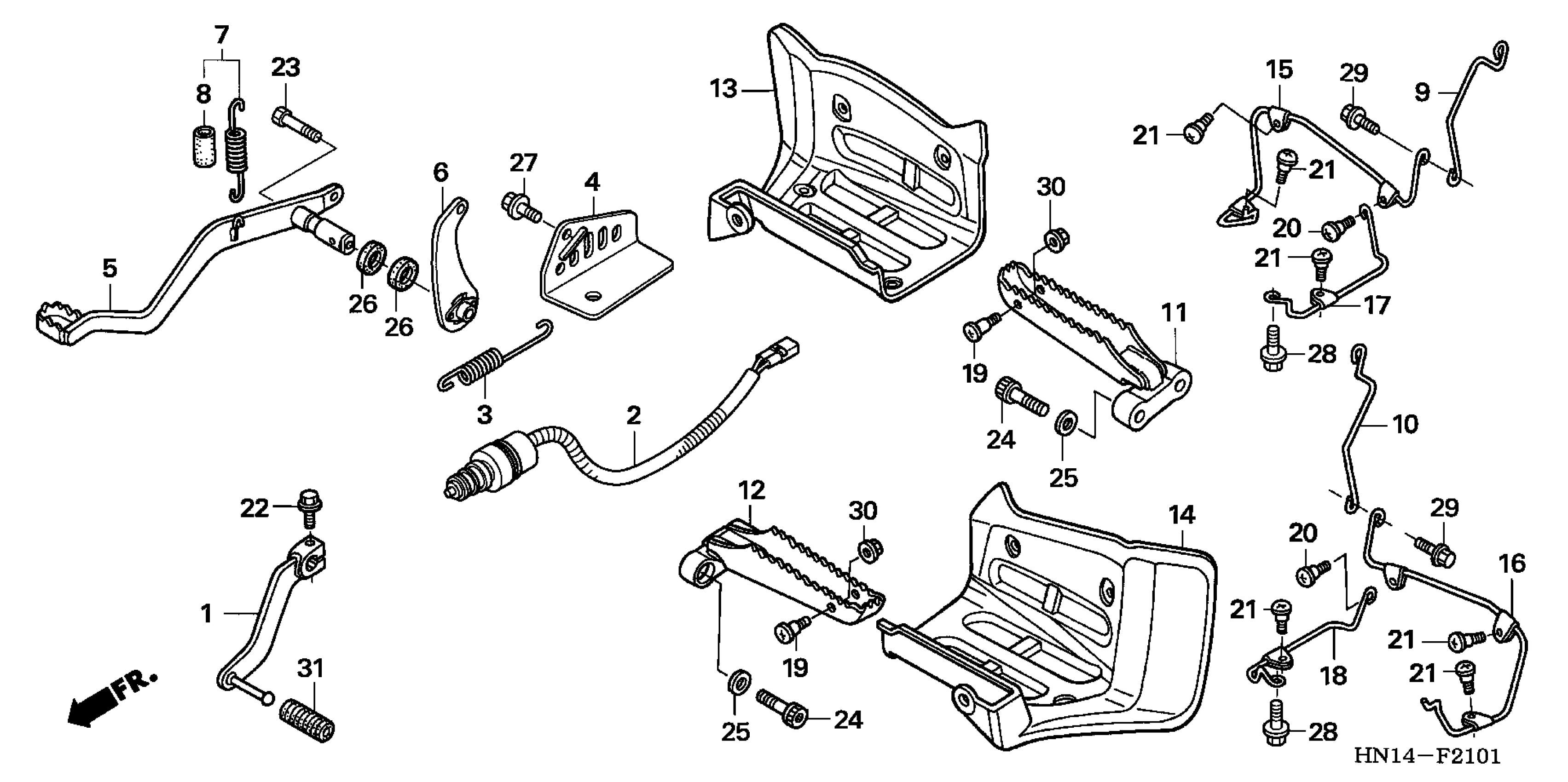

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 STEP + PEDAL ('05-'06) Diagram

#

Description
Price

1

PEDAL, GEARSHIFT *NH1* (BLACK) This part replaces 24700-HN1-010ZB.

24700-HN1-A70ZA

$21.80

2

SWITCH ASSY., RR. STOP

35350-HN1-A41

Unavailable

3

SPRING, STOP SWITCH

35357-HN1-A40

$2.80

4

GUARD, RR. STOP SWITCH

35359-HN1-A40

$2.72

5

PEDAL, BRAKE

46510-HN1-A40

$24.91

6

HOOK, STOP SWITCH SPRING

46511-HN1-A40

$81.38

7

SPRING ASSY., RR. BRAKE PEDAL

46513-HN1-000

$19.71

8

TUBE, BRAKE PEDAL SPRING

46514-HN1-000

$5.21

9

GUIDE, R. RR. FENDER

50218-HN1-000

Unavailable

10

GUIDE, L. RR. FENDER

50219-HN1-000

$44.26

11

STEP, R.

50610-HN1-000

$79.23

12

STEP, L.

50620-HN1-000

$129.96

13

SPLASH GUARD, R. RR. *NH1* (BLACK)

80121-HN1-000ZA

$43.55

14

SPLASH GUARD, L. RR. *NH1* (BLACK)

80122-HN1-000ZA

$12.45

15

STAY, R. SPLASH GUARD (OUTER)

80123-HN1-000

$233.61

16

STAY, L. SPLASH GUARD (OUTER)

80124-HN1-000

Unavailable

17

STAY, R. SPLASH GUARD (INNER)

80126-HN1-000

$109.70

18

STAY, L. SPLASH GUARD (INNER)

80127-HN1-000

Unavailable

19

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.17

20

SCREW, SPLASH GUARD (6X20)

90103-HB9-740

$3.95

21

SCREW, SPLASH GUARD

90103-HC4-770

$2.03

22

BOLT, FLANGE (6X20)

90118-968-000

$3.93

23

BOLT, SOCKET (6X50)

90134-MBB-000

$4.00

24

BOLT, SOCKET (10X45)

90181-HN1-000

$2.10

25

WASHER (10MM)

90410-HP1-000

$2.46

26

DUST SEAL (15X20X3)

91251-MT4-003

$3.54

27

BOLT-WASHER (6X12)

93404-06012-00

$1.48

28

BOLT-WASHER (6X16)

93404-06016-07

$1.48

29

BOLT-WASHER (6X20)

93404-06020-00

$1.48

30

NUT, FLANGE (6MM)

94050-06000

$0.59

31

RUBBER, CHANGE PEDAL

95011-40000

$1.14
