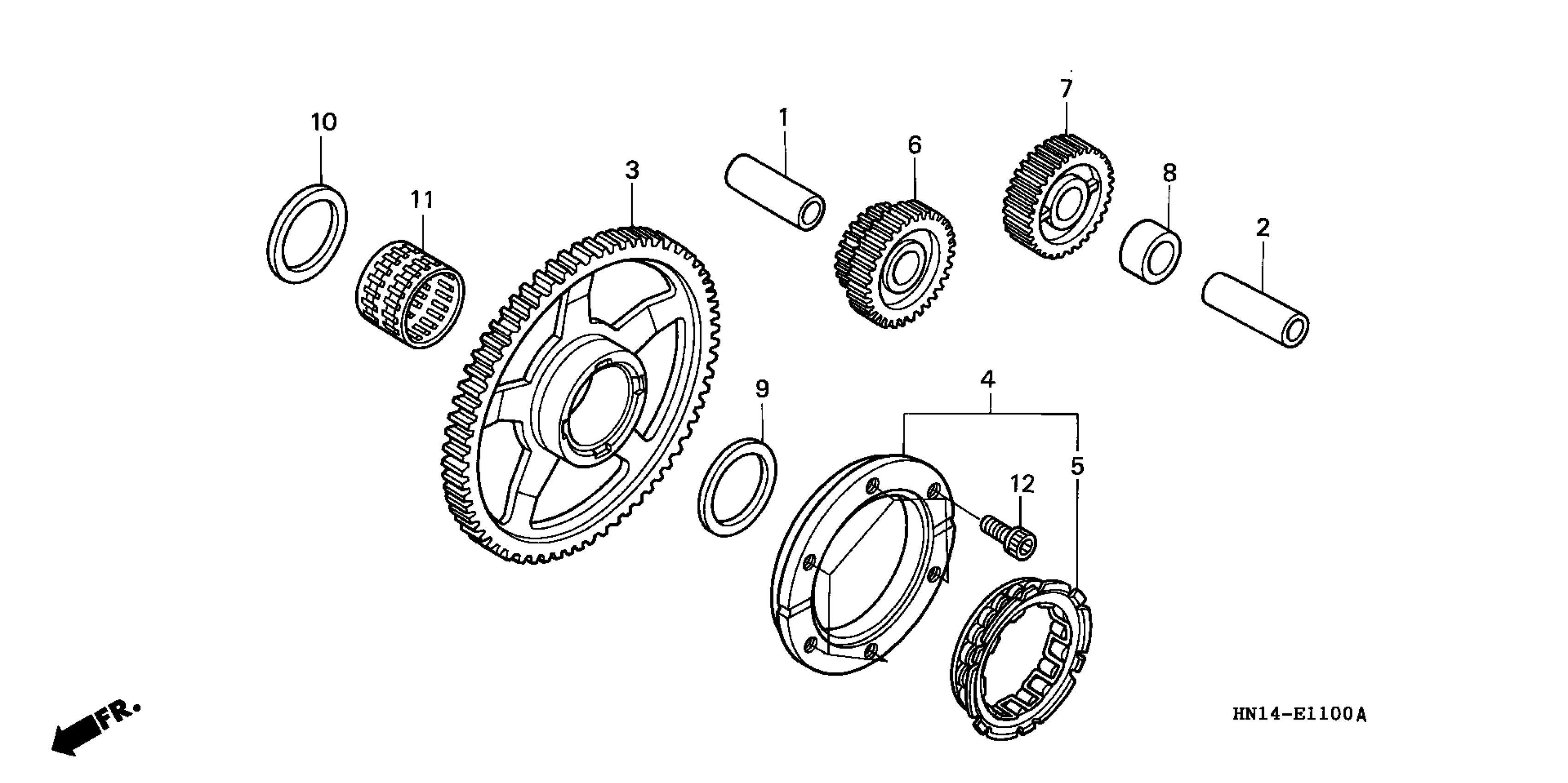

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 STARTER GEAR Diagram

#

Description

Price

1

PIN, PISTON

13111-KN6-930

$18.41

2

PIN, PISTON

13111-ZE0-000

$5.36

3

GEAR, STARTER DRIVEN (72T)

28110-HN1-A70

$162.35

3

GEAR, STARTER DRIVEN (72T) This part replaces 28110-HN1-000.

28110-HN1-A70

$162.35

4

CLUTCH OUTER, STARTING

28125-HN1-003

$189.52

5

CLUTCH, ONE-WAY

28126-HA7-673

$74.96

6

GEAR, STARTER REDUCTION (16T/47T)

28131-HN1-000

$51.23

7

GEAR, STARTER IDLE (45T)

28141-HN1-000

$34.52

8

COLLAR, STARTER IDLE GEAR

28143-HN1-000

$4.69

9

COLLAR (30MM)

90421-KAS-900

$15.31

10

COLLAR (29MM)

90422-HN1-000

$4.92

11

BEARING, NEEDLE (30X35X26) (NTN CORP.)

91022-MT7-003

$24.86

11

BEARING, NEEDLE (30X35X26) (NTN CORP.) This part replaces 91061-KL8-711.

91022-MT7-003

$24.86

12

BOLT, SOCKET (8X16)

96700-08016-10

$1.41
