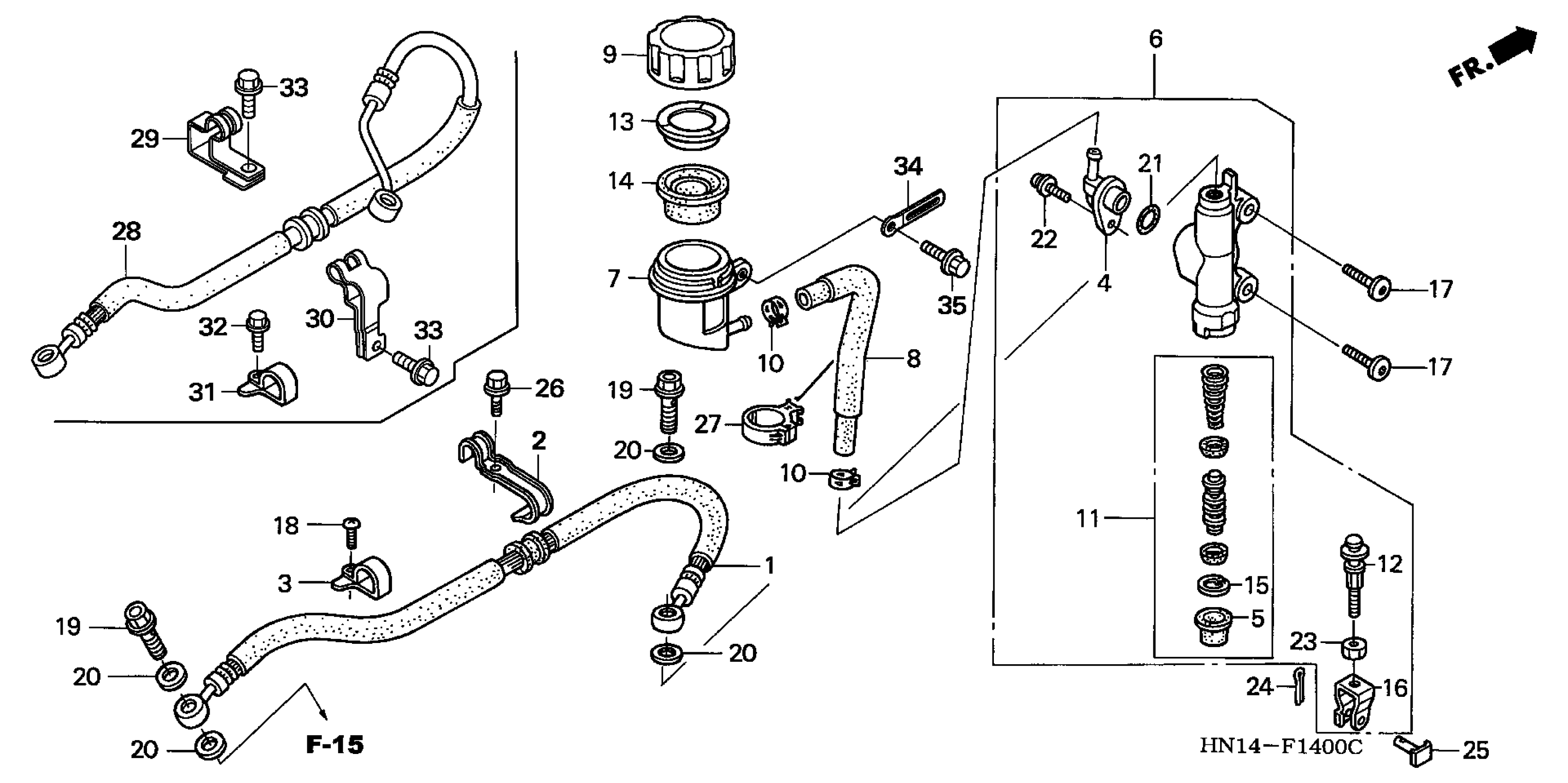

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

4

CONNECTOR

43503-MR7-006

$12.51

5

BOOT

43504-MB2-006

$9.01

6

MASTER CYLINDER SUB-ASSY., RR. This part replaces 43510-HN1-006.

43510-HN1-016

$66.62

7

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.26

8

HOSE, RR. MASTER CYLINDER

43512-HN1-006

$13.70

9

CAP, MASTER CYLINDER

43513-KS6-701

$13.08

10

CLAMP, MASTER CYLINDER OIL HOSE

45514-KV3-006

$14.30

11

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$41.76

12

ROD, PUSH (NISSIN)

43530-HC0-006

$21.10

13

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

14

DIAPHRAGM

45520-GM9-711

$8.22

15

CIRCLIP

46182-500-013

$4.46

16

JOINT, BRAKE ROD

46504-KV6-702

$7.30

17

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.18

19

BOLT, OIL (10X22)

90145-MS9-612

$6.82

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

O-RING (14.8X2.4)

91212-422-006

Unavailable

22

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

23

NUT, HEX. (8MM)

94002-08000-0S

$1.19

24

PIN, SPLIT (2.0X22)

94201-20220

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

24

PIN, SPLIT (2.0X35)

94201-20350

$0.94

25

PIN D, JOINT

95015-54000

$3.95

27

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

28

HOSE, RR. BRAKE

43310-HN1-A41

$18.54

29

CLAMP, BRAKE HOSE

43311-HN1-A40

Unavailable

30

CLAMP B, RR. BRAKE HOSE

43464-HN1-A40

$0.94

31

GUIDE, BRAKE HOSE

43468-HN1-A40

$5.12

32

BOLT, FLANGE (5MM)

90101-HN1-A40

$2.43

33

BOLT, FLANGE (6X14)

90112-GW3-000

$1.84

34

CLIP (2X70)

91413-679-000

$8.30

35

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
