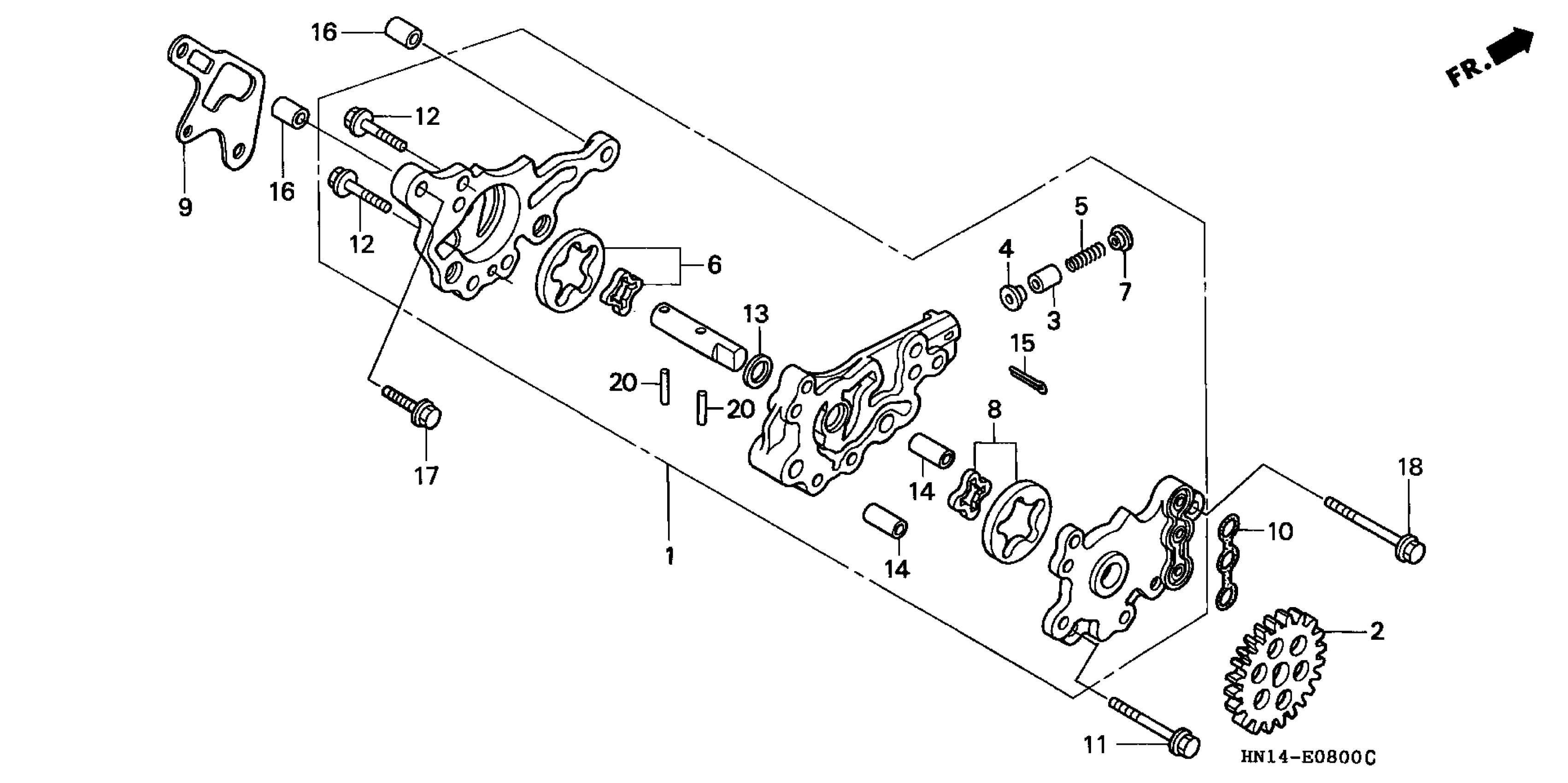

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-HN1-000

$118.59

2

GEAR, OIL PUMP DRIVEN (27T)

15105-KCY-670

$104.41

3

VALVE, OIL LEAK STOPPER

15106-MG3-000

$15.45

4

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.20

5

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.46

6

ROTOR SET, OIL PUMP This part replaces 15110-HN1-305.

15110-K0B-T00

$25.90

7

SEAT B, SPRING

15111-MG3-000

$2.65

8

ROTOR SET, OIL PUMP

15120-KCZ-305

$36.43

9

SEAT, OIL PUMP

15151-KCY-671

$6.52

10

SEAL, RUBBER

15152-KCY-670

$9.19

11

BOLT, FLANGE (6X40)

90002-HN1-000

$1.22

12

BOLT (6X25)

90003-GAV-701

$4.12

13

WASHER, THRUST (11MM)

90456-333-000

$2.42

14

PIN, DOWEL (8X19)

90701-KCY-670

$2.99

15

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$0.94

15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

15

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$0.94

15

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

15

PIN, SPLIT (3.0X45)

94201-30450

$0.94

16

PIN, DOWEL (8X14)

94301-08140

$2.04

17

BOLT, FLANGE (6X32)

95701-06032-00

$1.71

18

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

20

ROLLER (4X15.8)

96220-40158

$0.41
