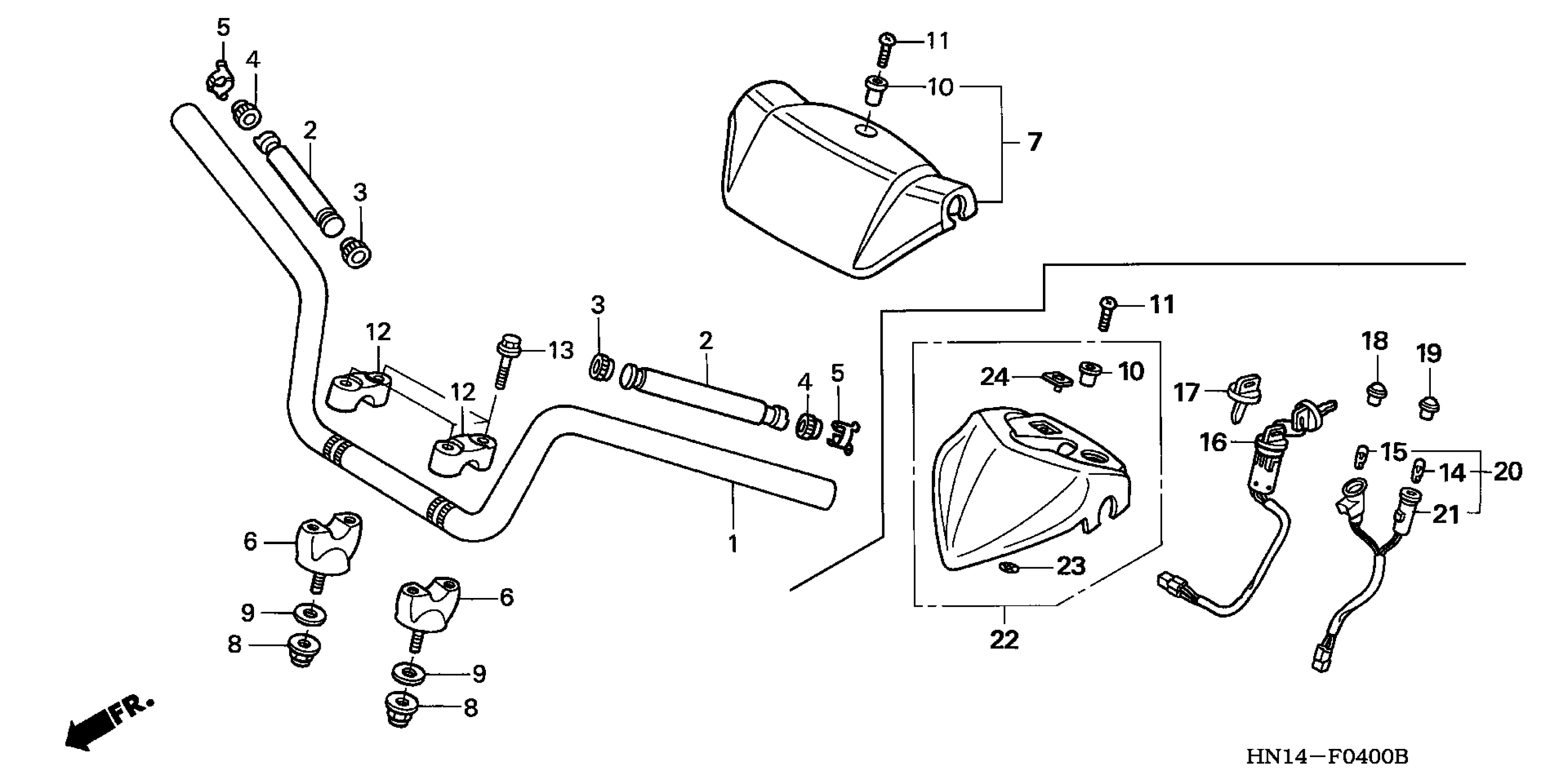

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR *NH1* (BLACK)

53100-HN1-A41ZA

$162.86

2

WEIGHT B, HANDLEBAR

53105-KV3-000

$15.52

3

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.66

4

RUBBER B, HANDLE WEIGHT

53107-KM9-000

$3.64

5

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.80

6

HOLDER, HANDLE (LOWER)

53130-HA0-680

$19.01

8

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

9

WASHER (10.3MM)

90521-427-770

$2.17

10

WASHER, FR. FENDER SETTING

90556-044-000

$3.39

11

SCREW, PAN (6X14)

93500-06014-0A

$0.90

12

HOLDER, HANDLE (UPPER)

53131-HB6-000

$19.01

13

BOLT, FLANGE (8X35)

95701-08035-08

$1.28

14

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$3.90

14

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$3.90

14

BULB (14V 3.4W) (NS)

37237-SA5-003

$3.90

14

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$3.90

15

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$6.58

16

SWITCH ASSY., IGNITION

35100-HN1-A41

$36.85

17

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$8.61

17

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$8.61

18

LENS, NEUTRAL PILOT (GREEN)

37561-HF1-670

$9.65

19

LENS, SPEED WARNING (RED)

37561-MR7-000

$10.26

20

INDICATOR ASSY.

37570-HN1-A41

$17.77

21

WIRE

37572-HN1-A41

$14.59

22

COVER ASSY., HANDLE *NH1* (BLACK)

53204-HN1-A40ZA

$30.35

23

NUT, SPEED (4MM)

64206-MJ0-000

$1.38

24

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$6.84
