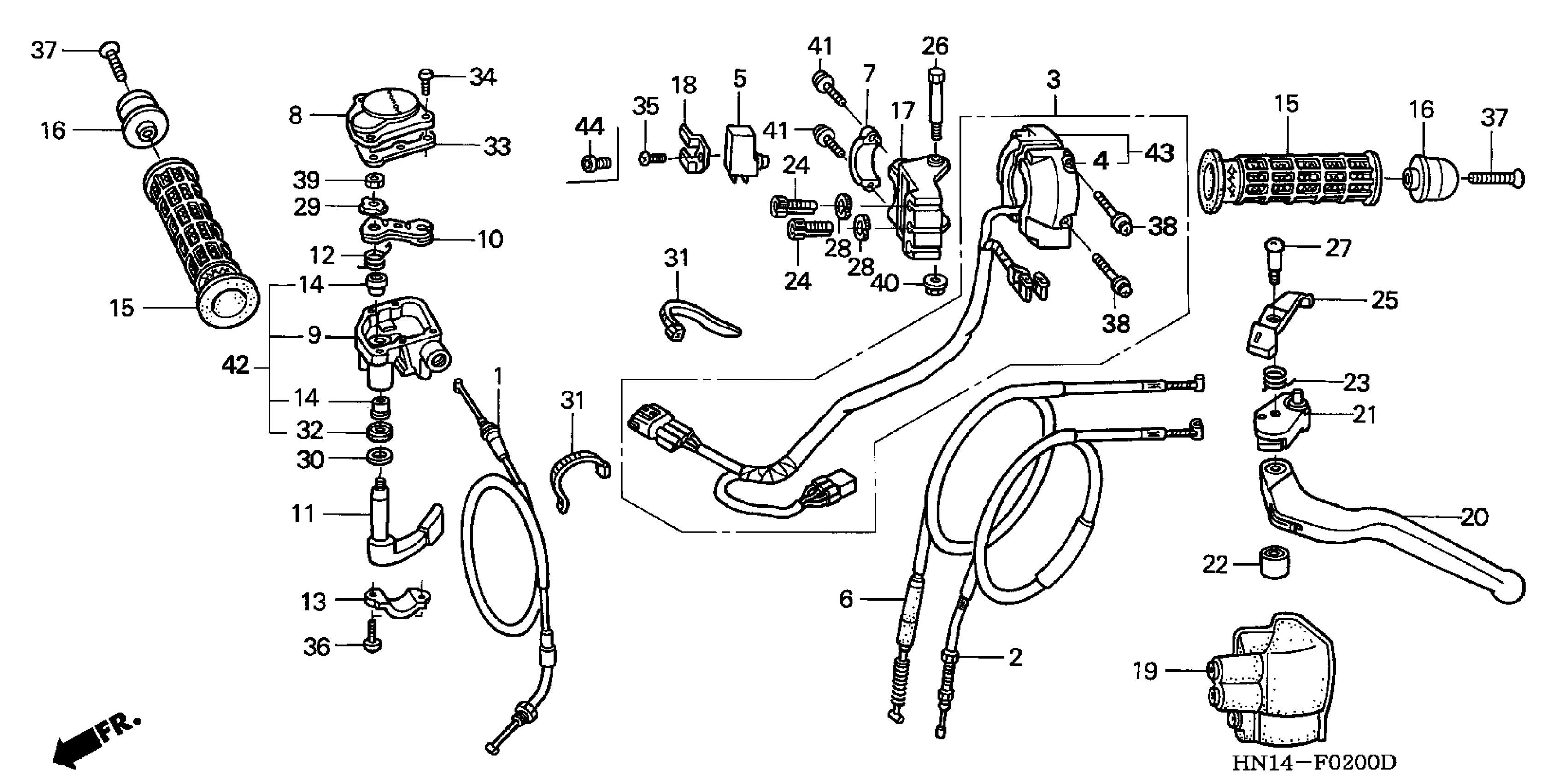

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 HANDLE LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HN1-A40

$36.83

2

CABLE, CLUTCH

22870-HN1-A40

$28.61

4

COVER, SWITCH

35201-HB7-671

$13.47

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

6

CABLE, PARKING BRAKE

43455-HN1-A40

Unavailable

7

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

8

COVER, THROTTLE CASE

53141-HP1-000

$36.58

9

CASE, THROTTLE LEVER

53142-HC0-770

$41.34

10

ARM, THROTTLE

53144-HA0-010

$7.72

11

LEVER, THROTTLE

53145-HA0-770

$24.05

12

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

13

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

14

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

15

GRIP, HANDLE

53165-958-010

$13.38

16

WEIGHT, HANDLEBAR

53105-HN1-000

$19.00

17

BRACKET, L. HANDLE LEVER

53172-HM3-000

Unavailable

18

PLATE, CLUTCH SWITCH

53173-HM3-A00

$6.38

19

COVER, L. HANDLE LEVER

53177-HM3-000

$10.62

20

LEVER, L. HANDLEBAR

53178-HN1-000

Unavailable

21

ARM ASSY., PARKING

53180-HM3-000

$41.39

22

COLLAR, HANDLE LEVER PIVOT

53182-HN1-000

Unavailable

23

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

24

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

25

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

26

BOLT, HANDLE LEVER PIVOT

90113-HC0-000

Unavailable

27

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

28

NUT, FIXING

90321-315-670

$7.31

29

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

30

WASHER (9X20)

90504-HA0-000

$2.28

31

BAND, WIRE

90650-KW3-000

$4.48

32

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

32

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

33

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

34

SCREW, PAN (4X16)

93500-04016-0G

$1.49

36

SCREW, PAN (5X14)

93500-05014-0G

$3.67

37

SCREW, FLAT (6X40)

93600-06040-0G

$1.49

38

SCREW-WASHER (5X25)

93892-05025-07

$1.49

38

SCREW-WASHER (5X25) This part replaces 93892-05025-17.

93892-05025-07

$1.49

39

NUT, HEX. (6MM)

94002-06000-0S

$1.49

40

NUT, FLANGE (6MM)

94050-06000

$1.49

41

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

43

SWITCH ASSY., LIGHTING & STARTER STOP

35200-HN1-A41

$52.25

44

BOLT, SOCKET (5X12)

90103-HN1-A40

$1.89
