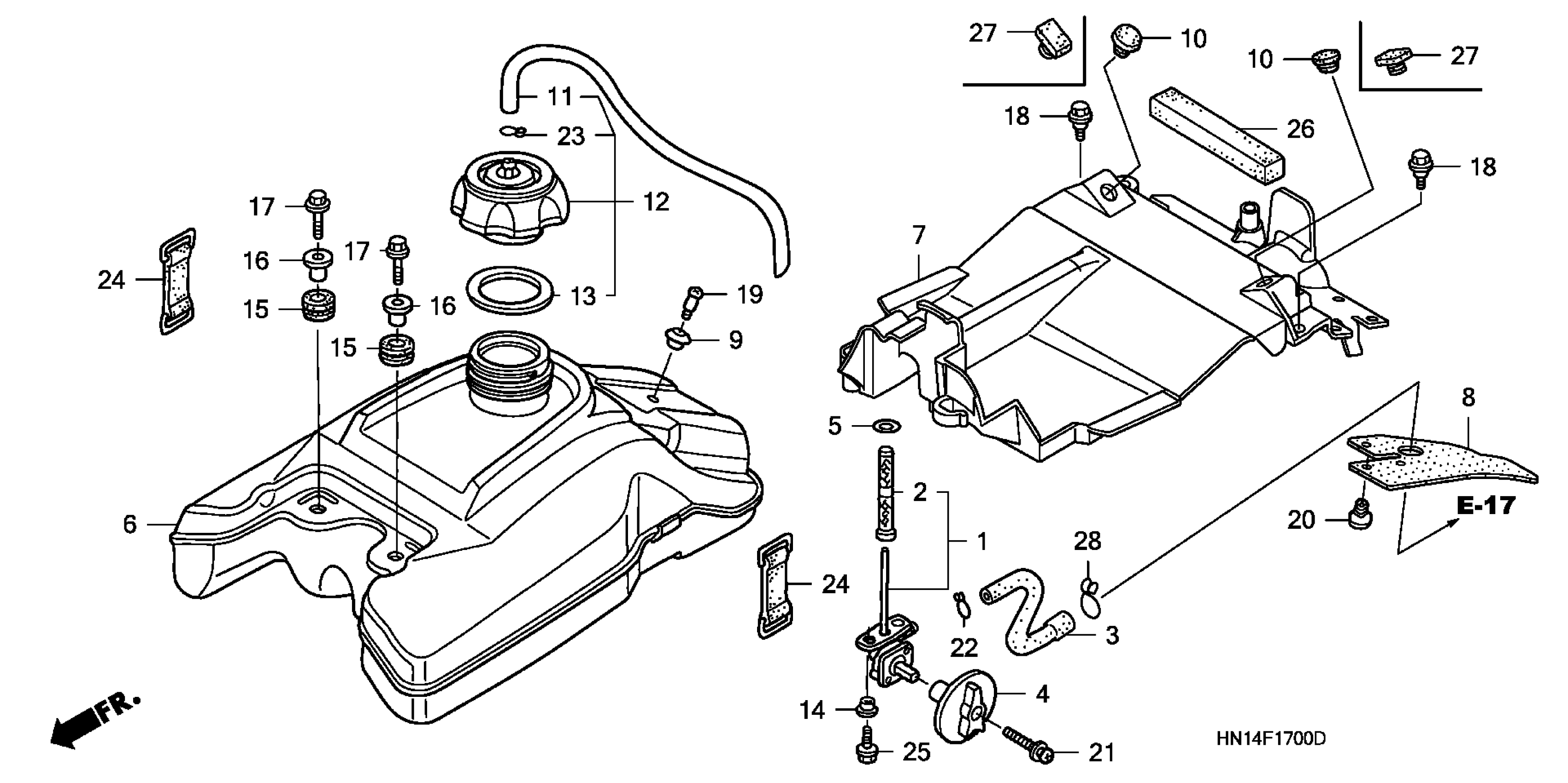

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 FUEL TANK Diagram

PETCOCK ASSY.

16950-HN1-003

$82.68

SCREEN SET, FUEL STRAINER

16952-HN1-003

$18.04

TUBE, FUEL

16956-HN1-A40

$10.29

LEVER, PETCOCK

16963-HN1-000

$2.96

O-RING (11.8X3.55)

16997-467-000

$2.01

TANK, FUEL

17510-HN1-000

Unavailable

PROTECTOR, TANK HEAT (LOWER)

17515-HN1-A40

$60.54

RUBBER, HEAT PROTECTOR

17518-HN1-000

$20.77

COLLAR, FR. SEAT

17518-KZ4-710

$5.41

TUBE, FUEL CAP BREATHER

17521-HN1-000

$6.48

CAP ASSY., FUEL TANK

17620-HN1-000

$29.32

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.48

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

RUBBER, MUFFLER

18334-KA3-830

$3.62

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

BOLT, SPECIAL (6X32)

90101-HM8-000

$4.09

BOLT, FLANGE (6MM)

90111-187-000

$5.21

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.64

CLIP, WASHER MOUTH

91504-SD5-901

$4.09

SCREW-WASHER (5X35)

90102-HN1-A40

Unavailable

CLIP, TUBE (B12)

95002-02120

Unavailable

CLIP, TUBE (C9)

95002-50000

$1.14

BAND A, BATTERY

95012-11001

$2.77

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

SEAL A, HEAT PROTECTOR

17525-HN1-300

Unavailable

RUBBER, STOPPER

50352-KE1-000

$3.99

CLIP, OIL DRAIN TUBE

15707-634-000

$4.78
