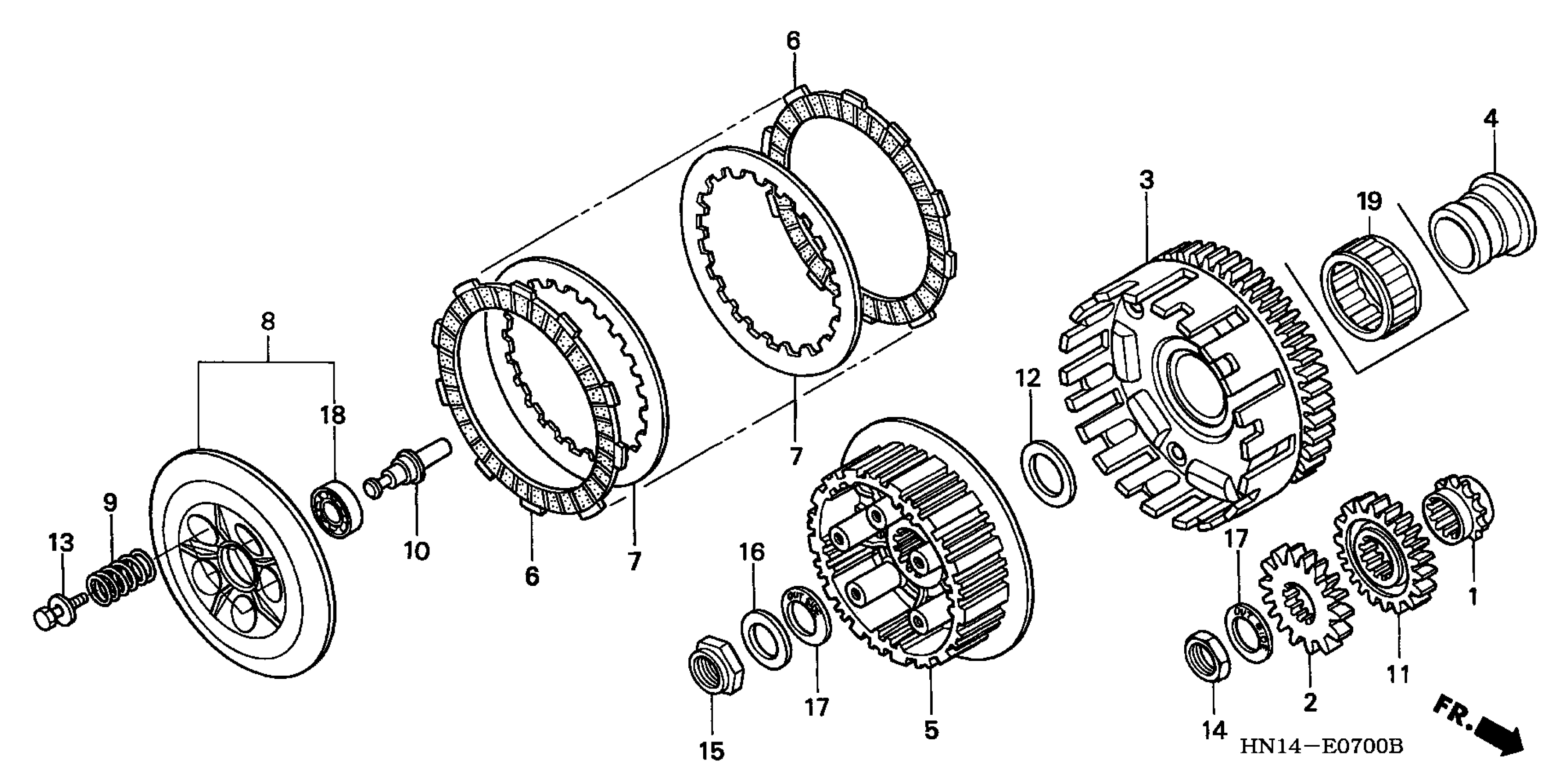

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 CLUTCH Diagram

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).

06001-HN1-000

$221.34

SPROCKET, TIMING (19T)

14312-KCZ-000

$49.11

GEAR, PUMP DRIVE (23T)

15130-HN1-A40

$27.49

CLUTCH OUTER

22100-HN1-A40

$322.03

GUIDE, CLUTCH (OUTER)

22116-HN1-A40

$19.33

CENTER, CLUTCH

22121-HN1-A40

$84.68

DISK, CLUTCH FRICTION

22201-MAL-600

$17.72

PLATE A, CLUTCH

22321-MV4-000

$11.26

PLATE, CLUTCH PRESSURE

22350-HN1-000

$62.88

SPRING, CLUTCH

22401-HN1-000

$4.63

PIN, CLUTCH LIFTER

22847-HN1-010

$14.67

GEAR, PRIMARY DRIVE (23T)

23121-HN1-A40

$72.89

WASHER, THRUST (22X40X2.0)

90458-HN1-A40

$2.66

BOLT-WASHER (6X28)

90022-HN1-000

$1.54

NUT (18MM)

90235-KA4-000

$11.09

NUT, LOCK (18MM)

90236-HA0-000

$10.45

WASHER, LOCK

90432-428-000

$7.57

WASHER (18X32X2)

90501-ML3-910

$4.37

BEARING, RADIAL BALL (6903)

91008-KCY-671

$25.46

BEARING, NEEDLE (28X33X16.8) (NTN)

91012-PZ4-003

$67.90
