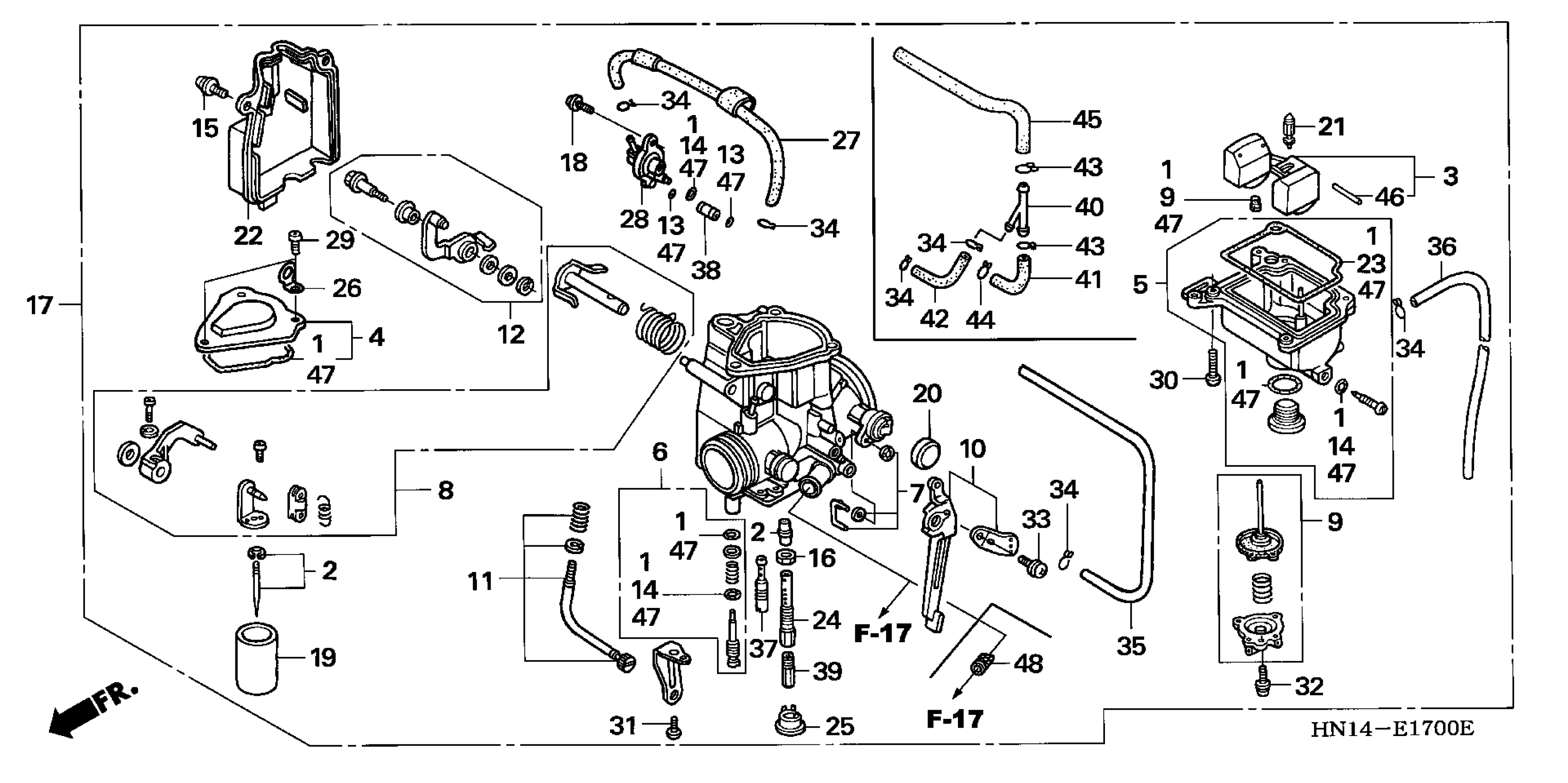

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 CARBURETOR Diagram

#

Description
Price

2

NEEDLE SET, JET

16012-HN1-A41

$19.88

3

FLOAT SET

16013-HN8-003

$35.32

4

TOP SET

16014-HN1-003

$24.77

5

CHAMBER SET, FLOAT

16015-HN1-A41

$59.96

6

SCREW SET This part replaces 16016-HN1-A41.

16016-HN1-A42

$16.33

7

ROD SET, CHOKE

16017-HN1-003

$35.77

8

ARM SET, LINK

16018-HN1-A41

$40.43

9

DIAPHRAGM SET, PUMP

16021-HN1-A41

$36.38

10

LEVER SET, CHOKE

16025-HM3-L00

$28.48

11

SCREW SET

16028-HN1-003

$28.71

12

ARM SET, PUMP

16031-HM3-L00

$74.97

13

O-RING (1.3X2.8)

16075-GHB-630

$1.90

14

O-RING (1.3X4.3)

16075-GHB-640

$2.65

15

SCREW-WASHER

16080-HC0-003

$3.86

16

NUT, HEX.

16096-HC0-003

$3.86

17

CARBURETOR ASSY. (QB11A B) This part replaces 16100-HN1-A41.

16100-HN1-A43

$238.92

18

SCREW

16108-MW0-750

$2.29

19

VALVE, THROTTLE

16111-HN1-003

$71.17

20

CAP, CHOKE DUST

16148-141-881

$4.43

21

VALVE, FLOAT

16155-HN7-003

$25.94

22

COVER, BODY

16160-HN1-003

$35.38

23

GASKET, FLOAT CHAMBER

16163-MEA-671

$20.80

24

HOLDER, NEEDLE JET

16165-HN1-003

$26.22

25

HOLDER, JET

16168-HC4-003

$9.70

26

BINDER

16179-HA0-003

$11.71

27

TUBE

16199-HN1-003

$5.13

28

VALVE ASSY., AIR CUT

16510-MZ2-650

$81.31

29

SCREW, PAN (4X8)

93500-04008-0H

$0.83

29

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.83

30

SCREW, PAN (4X14)

93500-04014-0H

$0.75

30

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.75

31

SCREW, PAN (6X10)

93500-06010-0H

Unavailable

31

SCREW, PAN (6X10) This part replaces 93500-06010-1H.

93500-06010-0H

Unavailable

32

SCREW-WASHER (4X12)

93892-04012-08

$0.58

32

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

33

SCREW-WASHER (5X10)

93892-05010-08

$1.04

33

SCREW-WASHER (5X10)

93892-05010-18

$1.04

34

CLIP, TUBE (B7)

95002-02079

$1.09

36

BULK HOSE, VACUUM (3.5X1000) (3.5X400)

95005-35001-50M

$12.31

37

JET, SLOW (#38)

99103-420-0380

$9.68

38

JET (#110) This part replaces 99108-MW0-1102.

99108-MY1-1100

Unavailable

39

JET, MAIN (#148)

99113-GHB-1480

$8.17

39

JET, MAIN (#142) | (Optional).

99113-GHB-1420

$8.78

40

JOINT

16180-ML6-671

$14.34

41

BULK HOSE, VACUUM (4.5X1000) (4.5X50)

95005-45001-50M

$6.52

42

BULK HOSE, VACUUM (3.5X1000) (3.5X50)

95005-35001-50M

$12.31

43

CLIP, TUBE (B8)

95002-02089

Unavailable

44

CLIP, TUBE

16163-KM4-004

$2.78

45

BULK HOSE, VACUUM (4.5X1000) (4.5X220)

95005-45001-50M

$6.52

46

PIN, ARM

16152-HN8-003

$3.80

47

GASKET SET This part replaces 16010-HN1-A41.

16010-HN1-A42

$23.49

48

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.36
